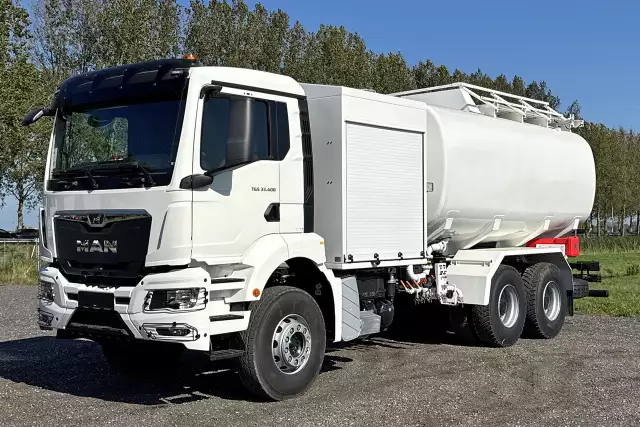

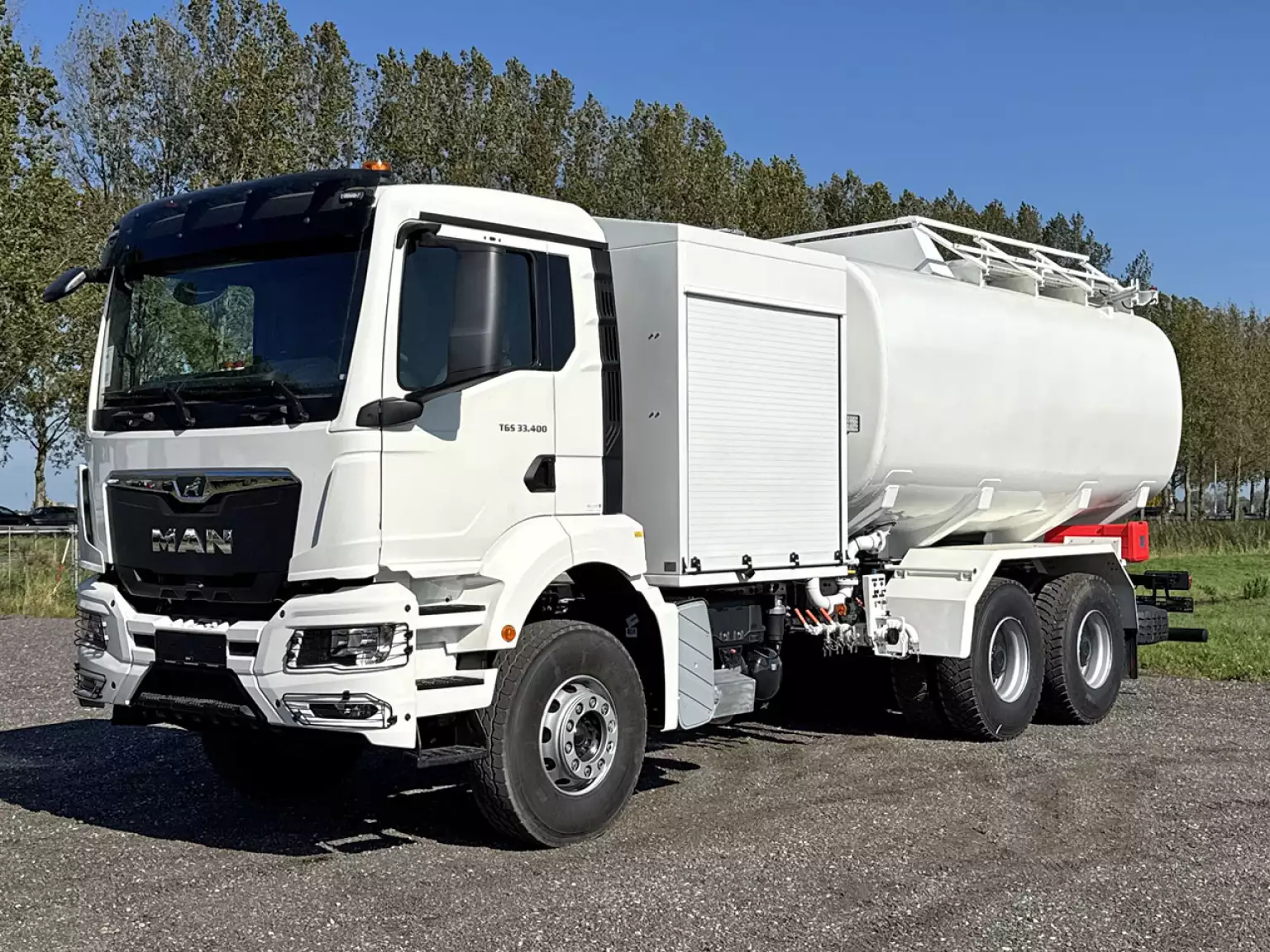

MAN TGS 33.400 BB CH ADR 6x4 Aviation Fuel Tank Truck

New/unused
Left hand drive
Automatic

Web-ID: VMA5289

Availability:: 1
Condition:: New/unused
Axle configuration:: 6x4
Engine:: 400hp/294kW
Emission:: EURO-2
Transmission:: Automatic
Price:: € 325.000

Net unit price, EXW Nieuwerkerk aan den IJssel (NL), without VAT, subject to availability/prior sale.

Quotation request Contact

Vehicle overview

Category:: Aviation Fuel Tank Trucks
Brand:: MAN
Type:: TGS 33.400 BB CH ADR
Axle configuration:: 6x4
Volume: 20000 Ltr.

Technical Specifications

Stock number VMA5289

Engine power 400hp/294kW

Emission EURO-2

Fuel Diesel

Engine type D2066LF06

Cylinder capacity 10.518 cc

Cylinders 6

Transmission Automatic

PTO NH/4C

Gearbox Tipmatic 12.28 OD

Suspension Spring

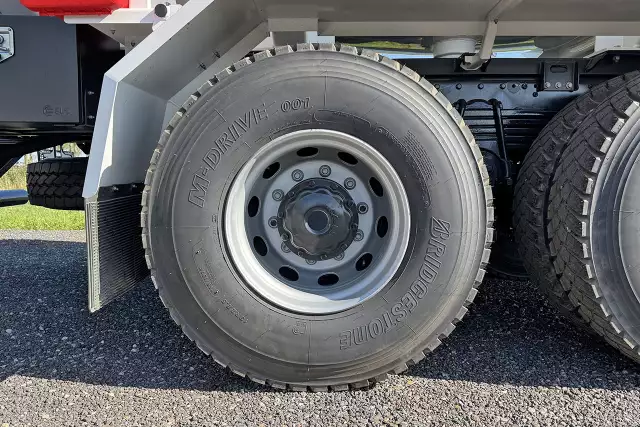

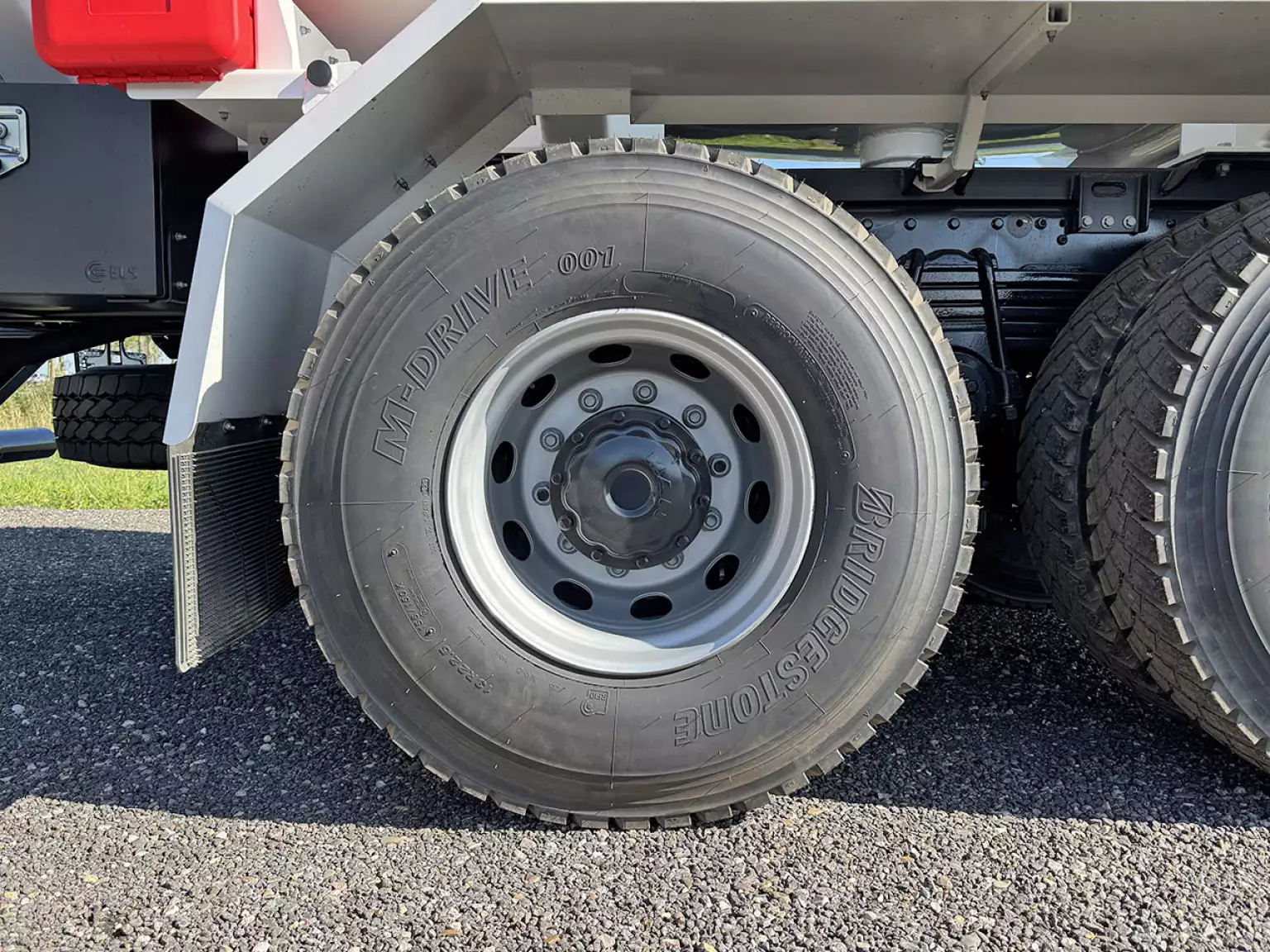

Tyres 13R22.5

Wheelbase 4.500 mm

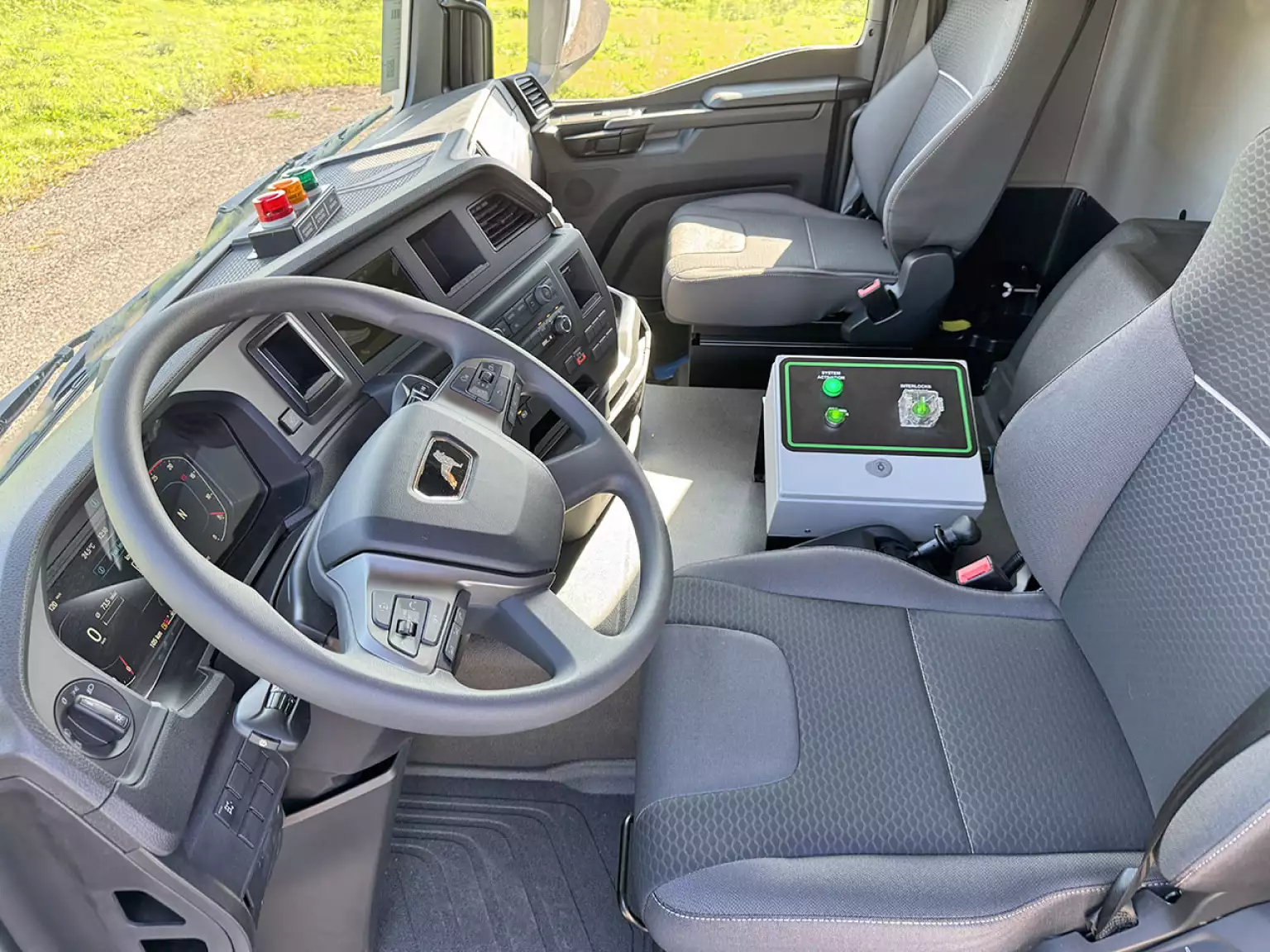

Cabin Day

Total weight GVW 33.000 kg

Vehicle length 9.800 mm

Vehicle width 2.500 mm

Vehicle height 3.500 mm

Model year 2025

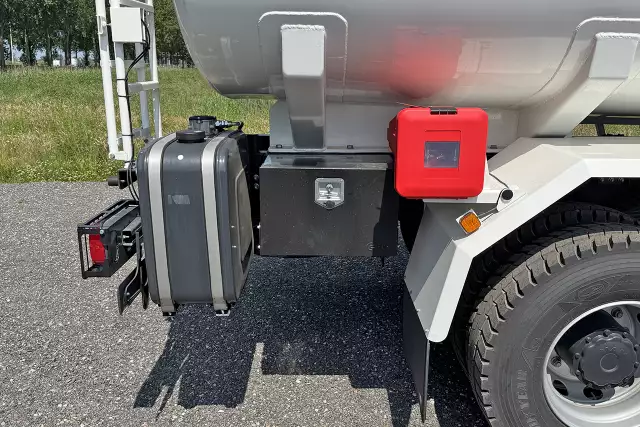

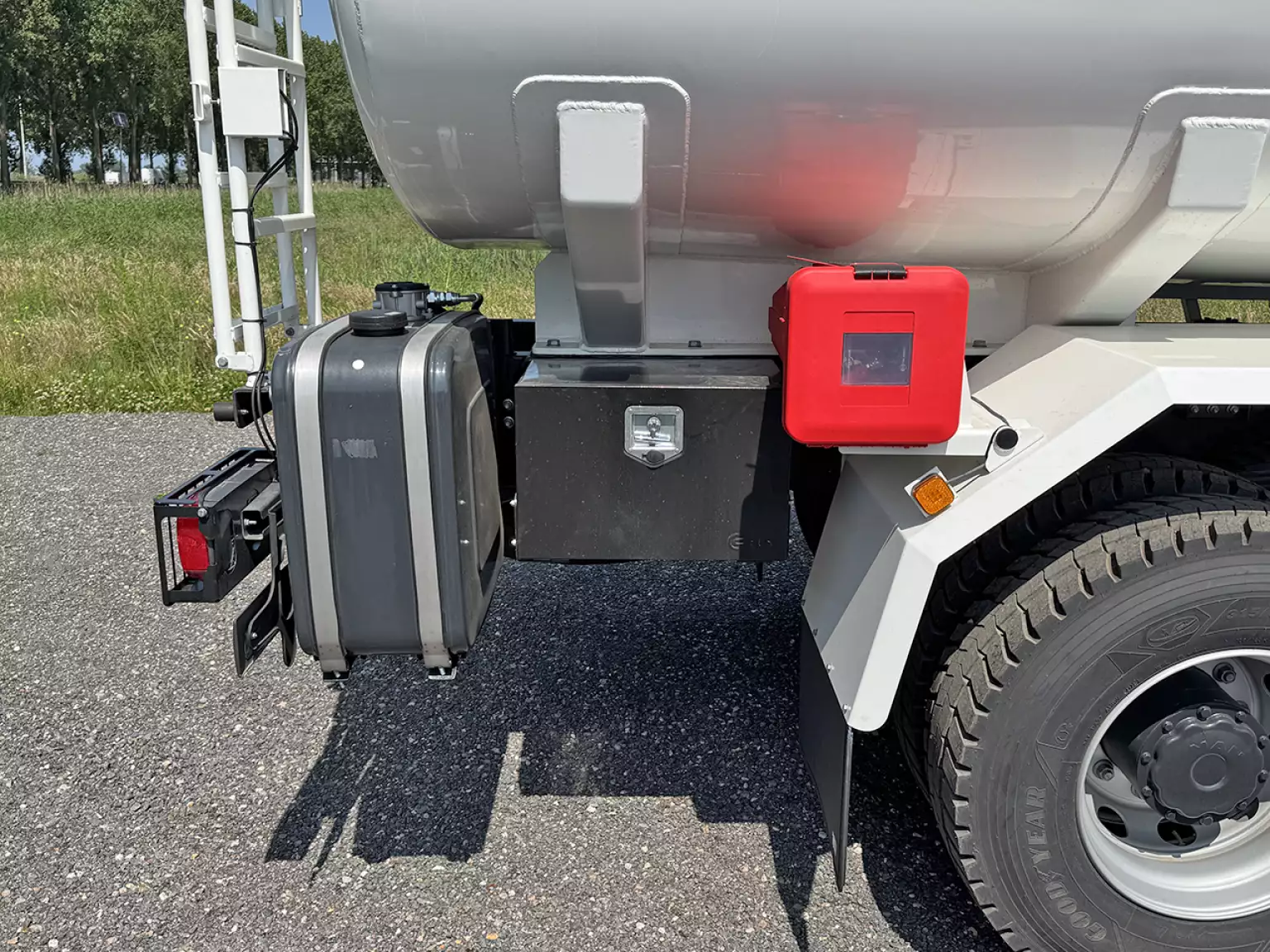

Remarks Fuel tank: 300 ltr.
Air conditioning
ADR type EXIII (EXII,FL,AT)

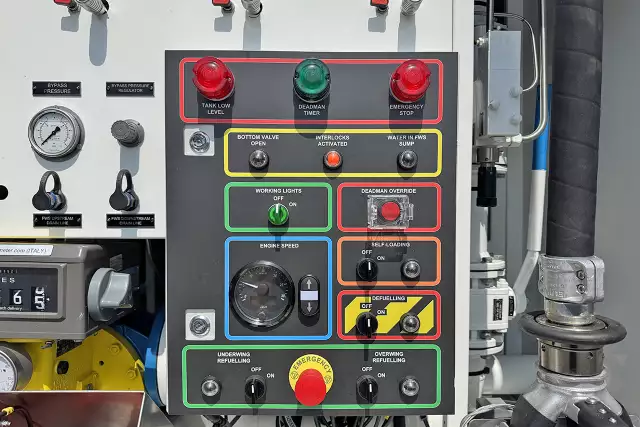

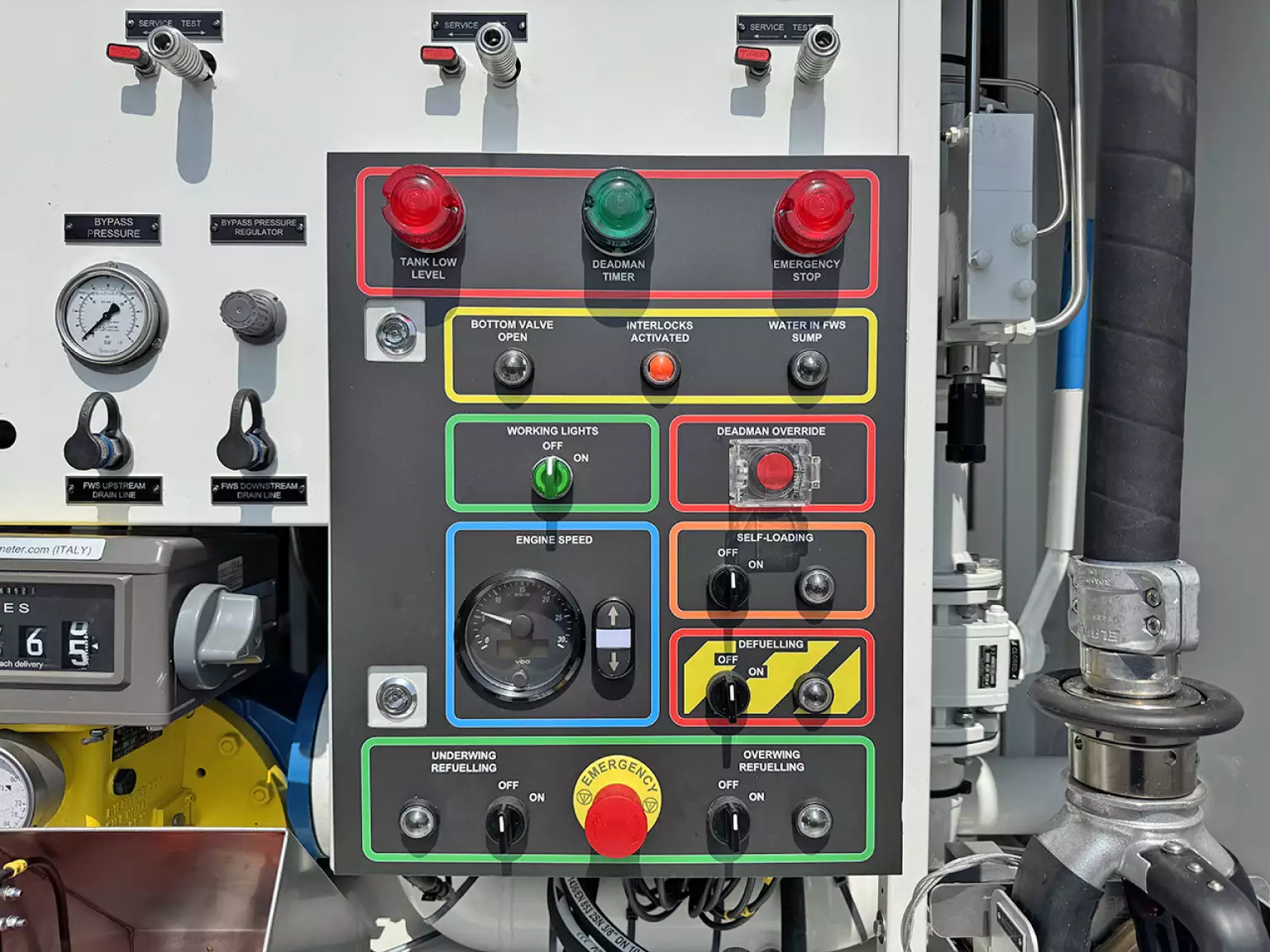

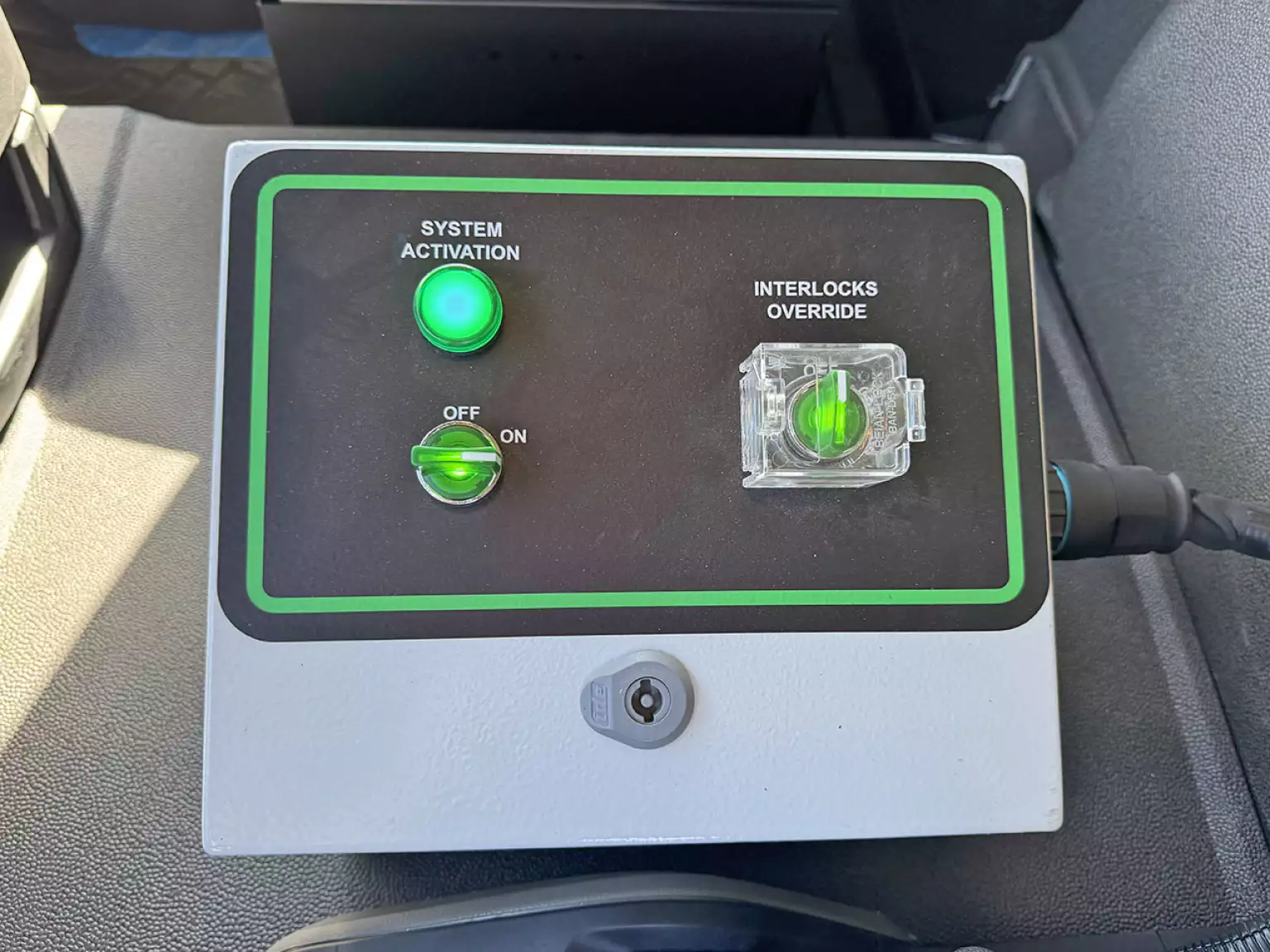

Battery emergency stop switch

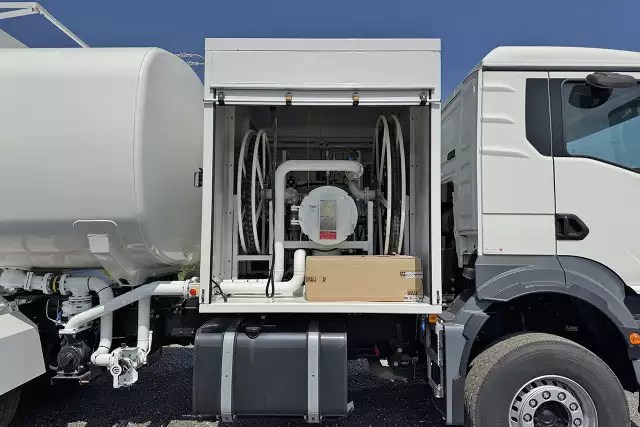

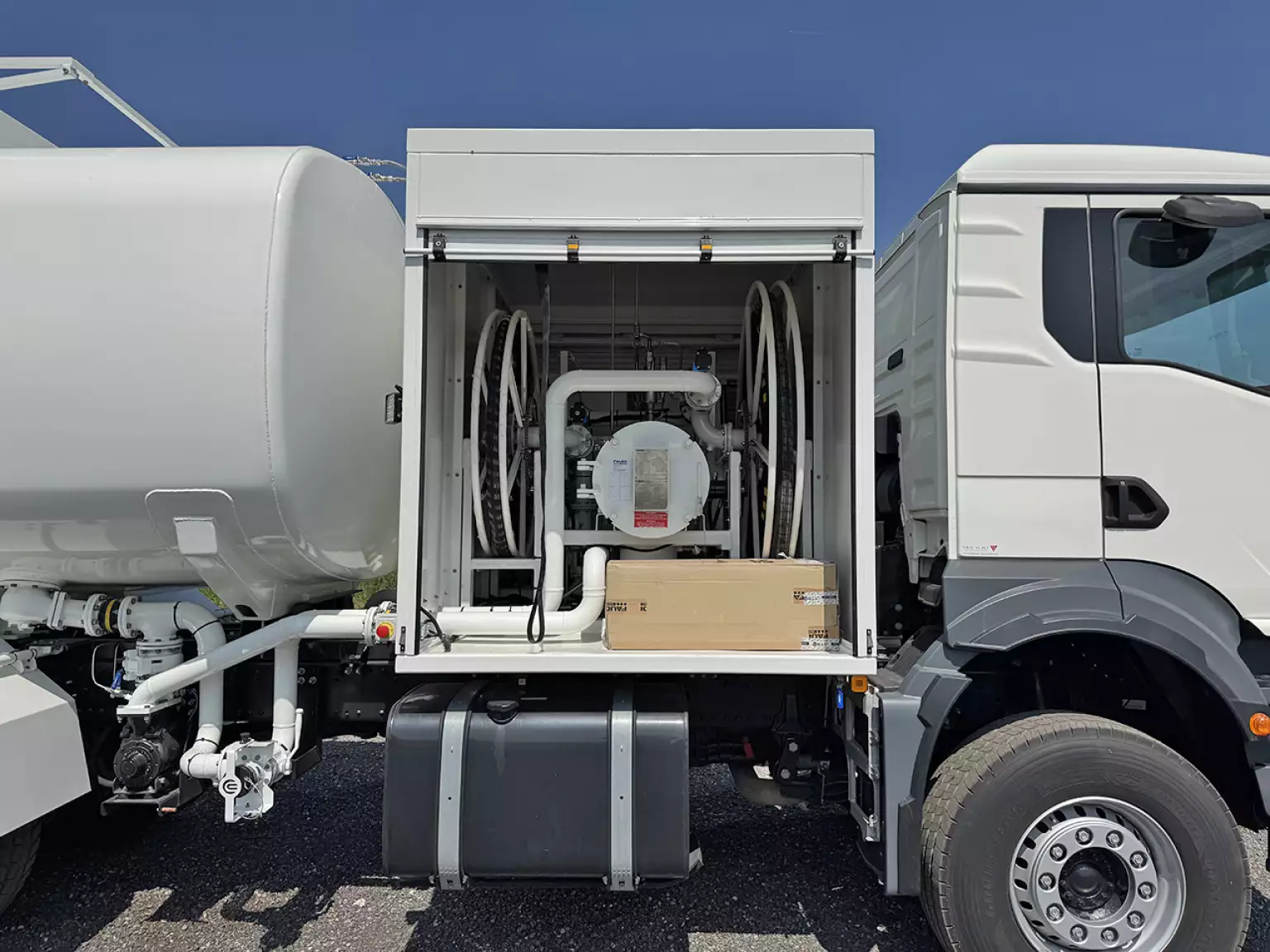

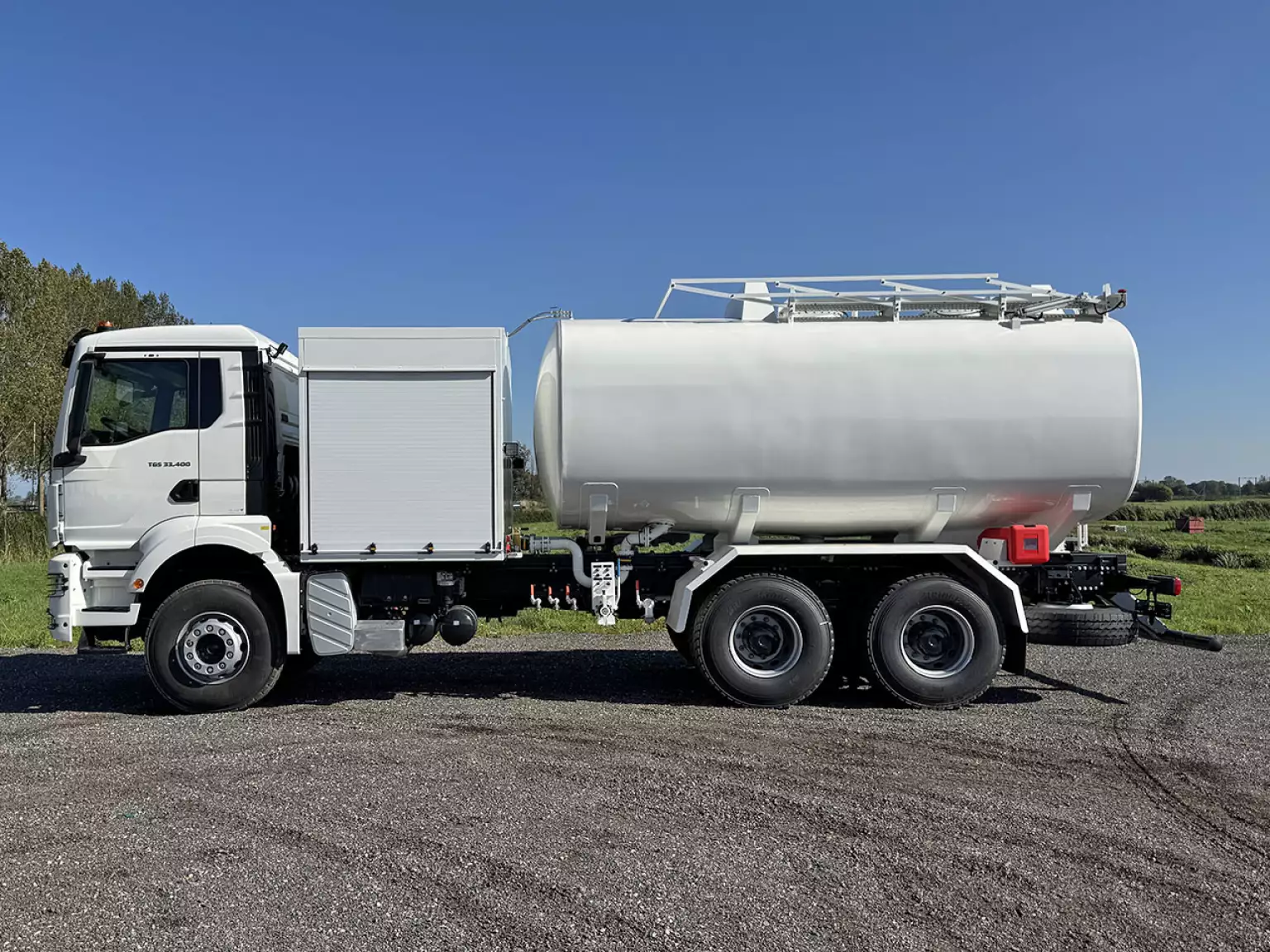

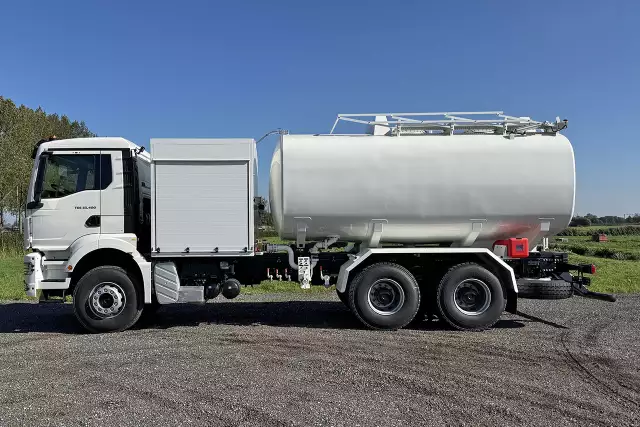

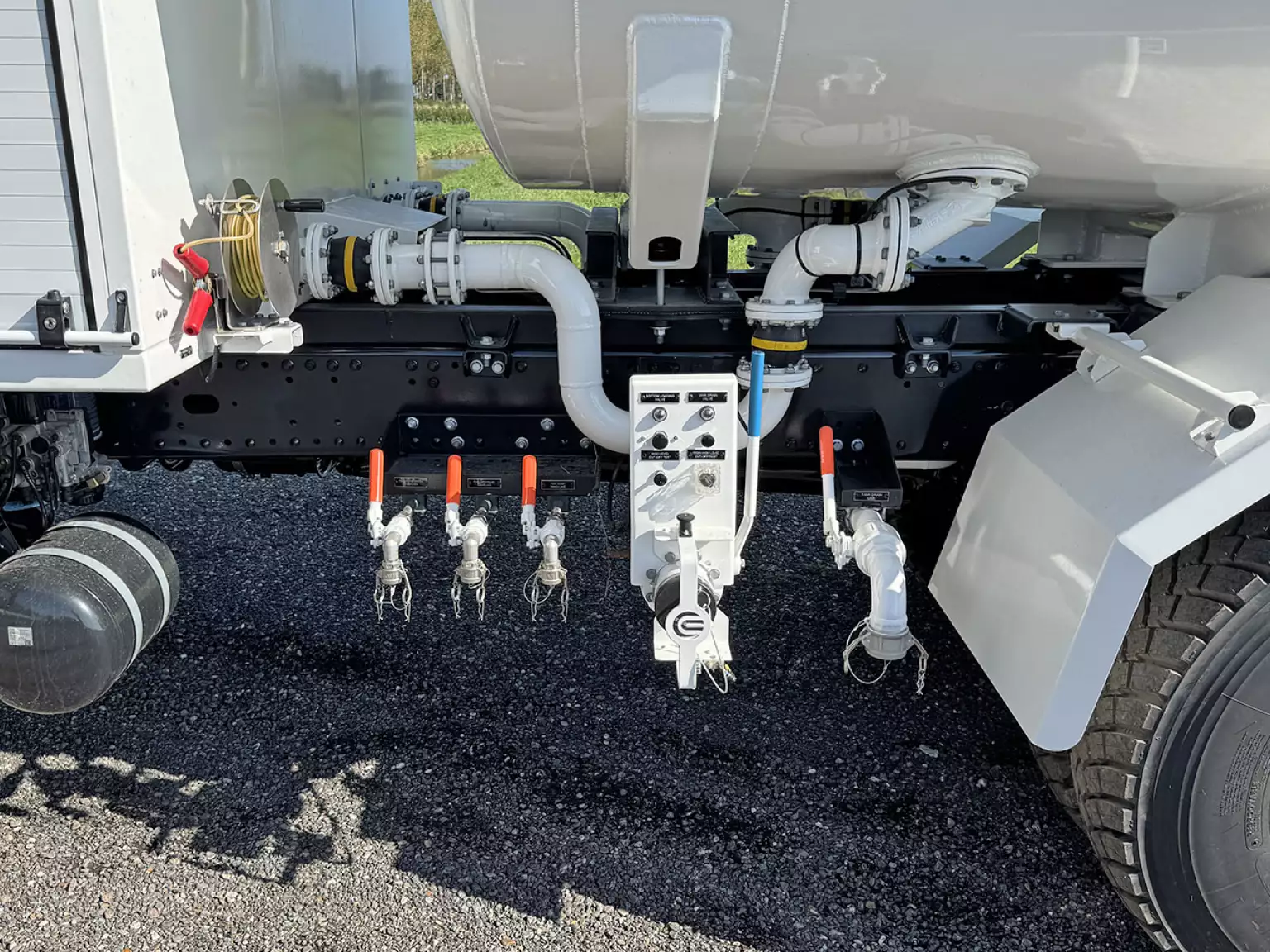

Equipped with aviation refueler tank.
Capacity: 20.000 ltr.

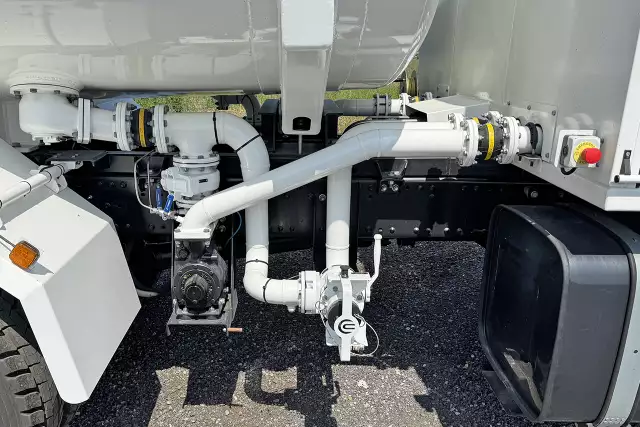

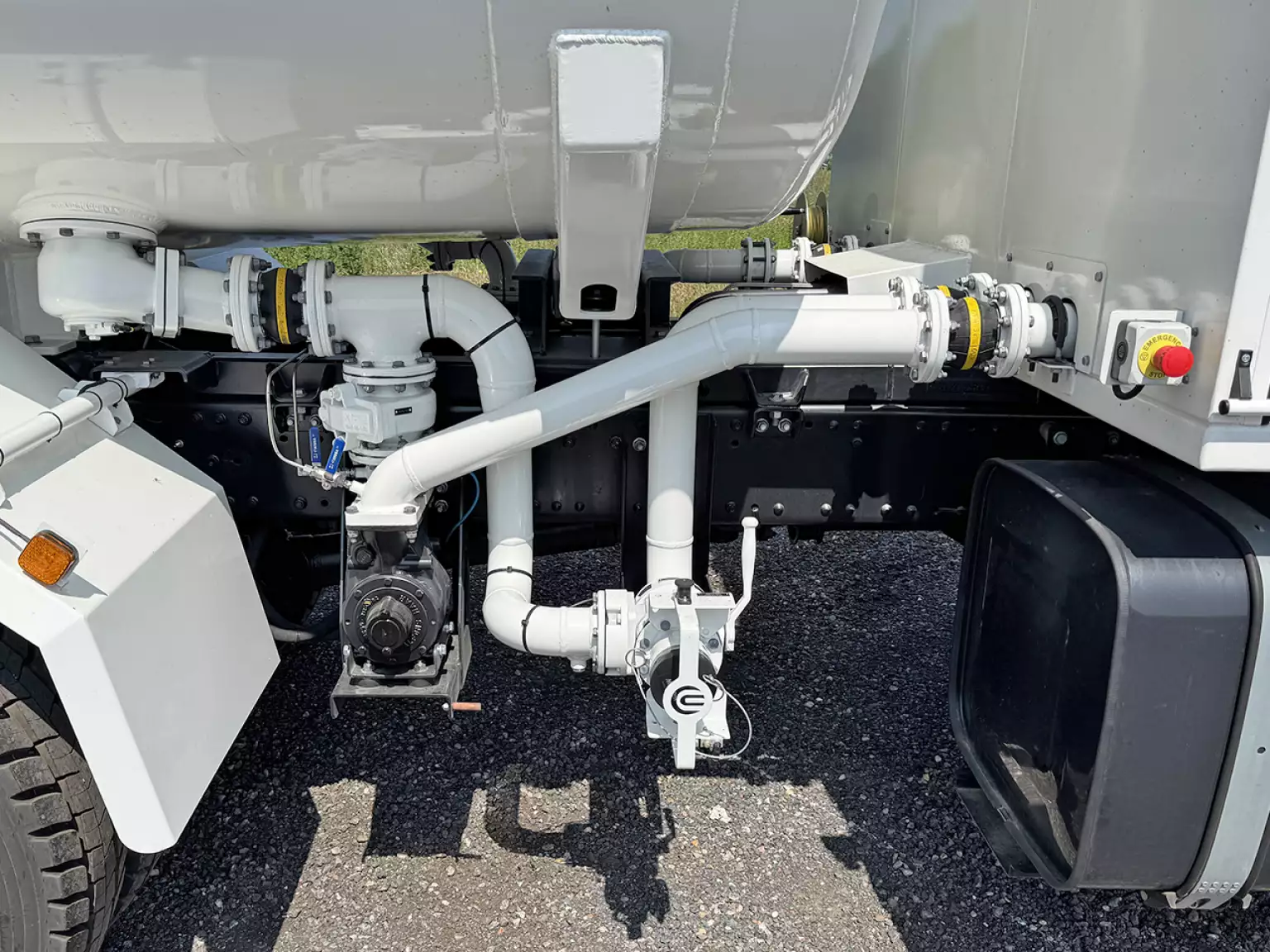

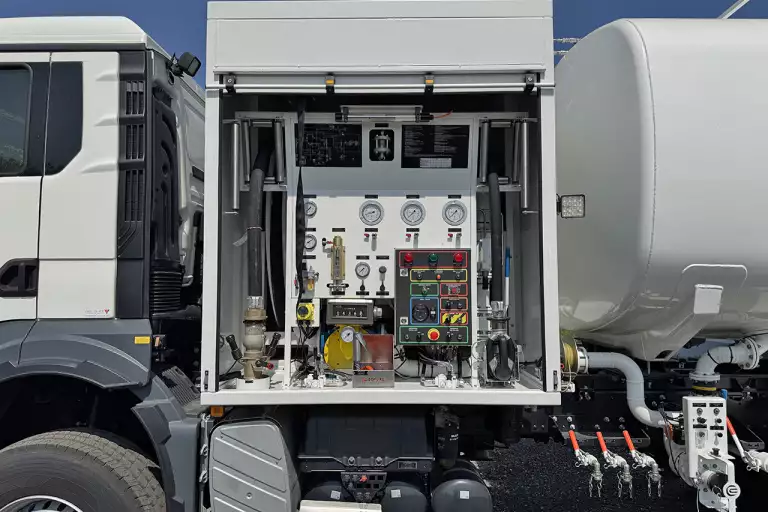

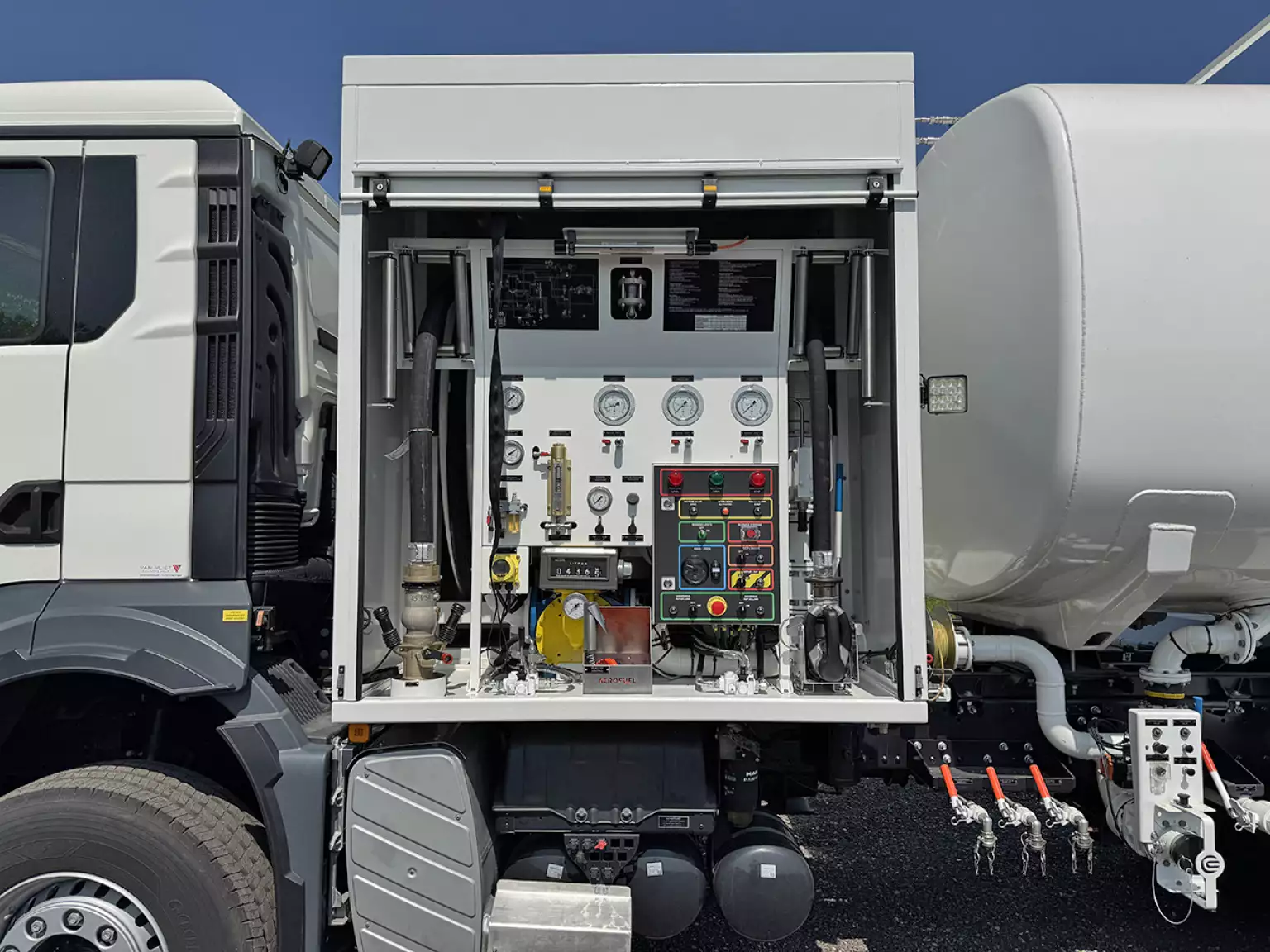

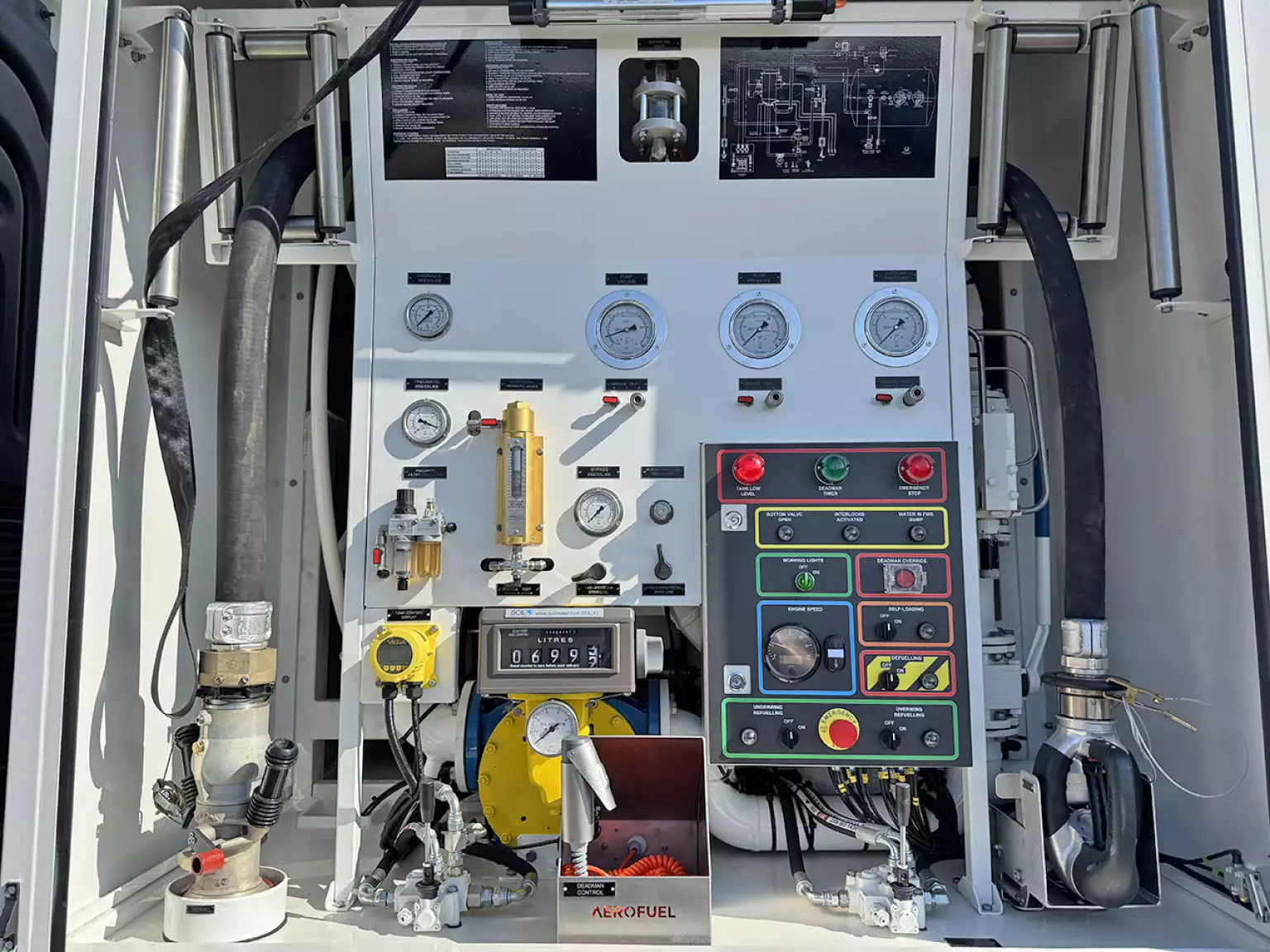

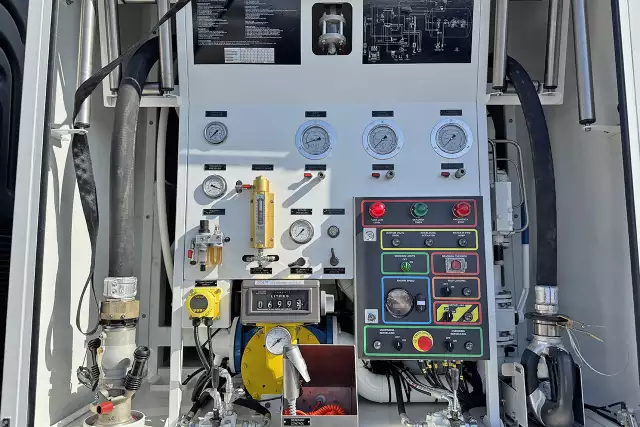

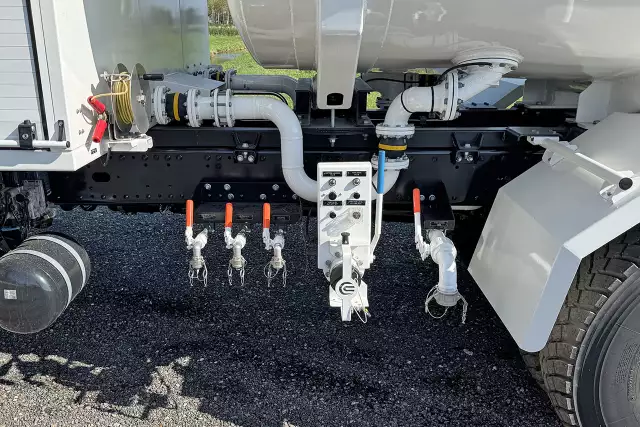

Pump: Alfons Haar FPOJ 80-900.
Pressure control: Alfons Haar AOA80 AV
Hydraulically driven.
Flow rate up to 1.200 lpm.

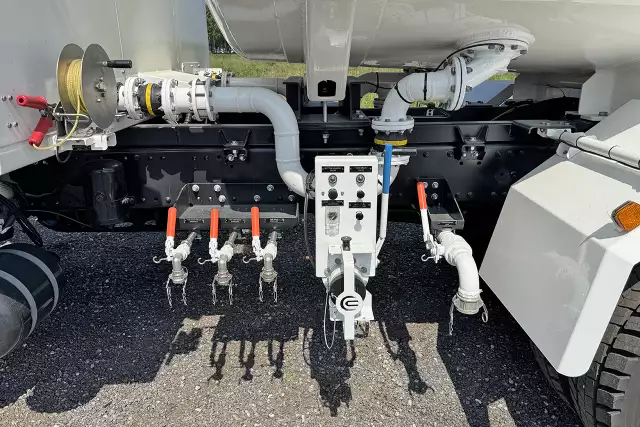

Meter: Satam ZC17 80 - VR7887

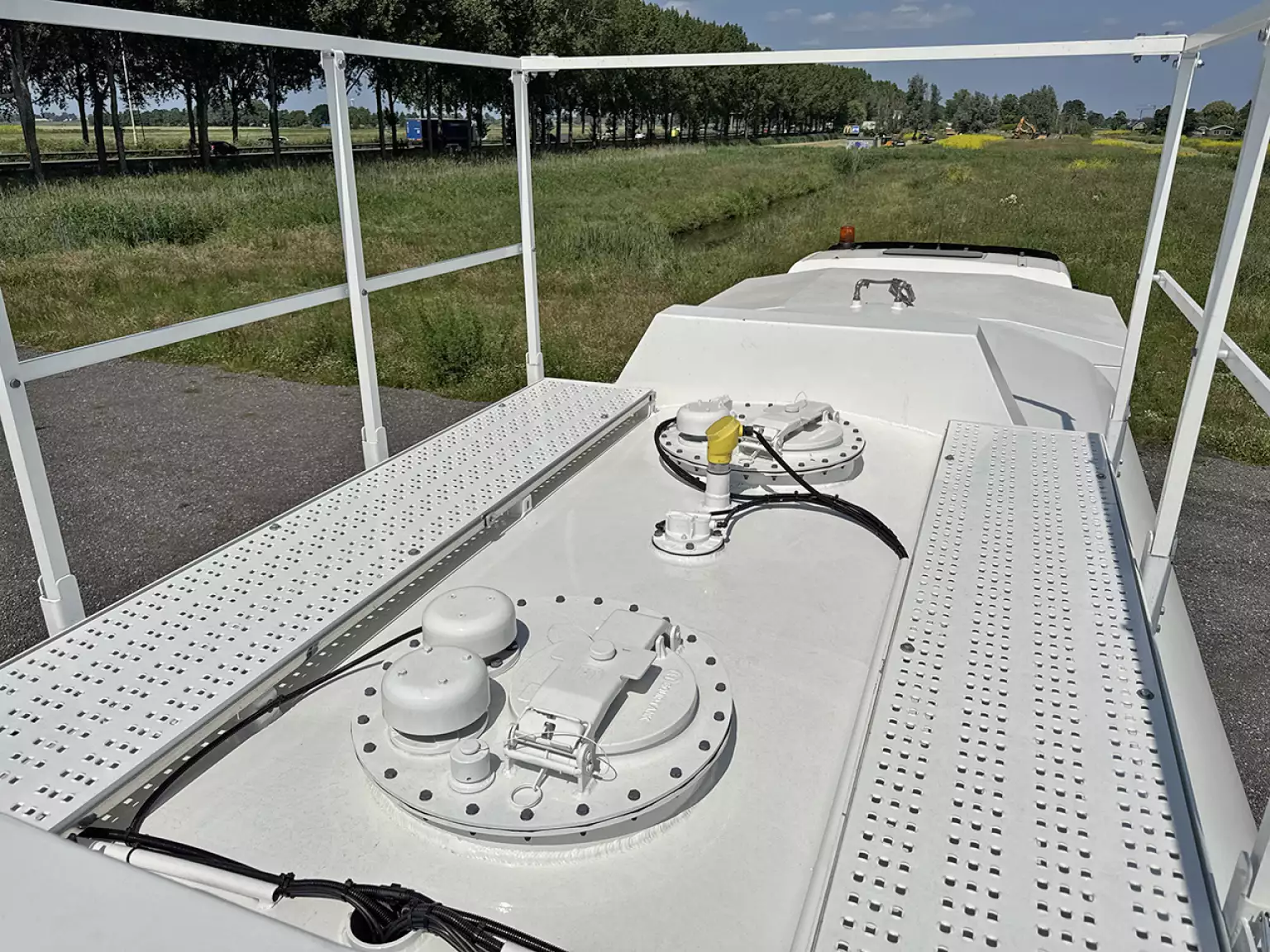

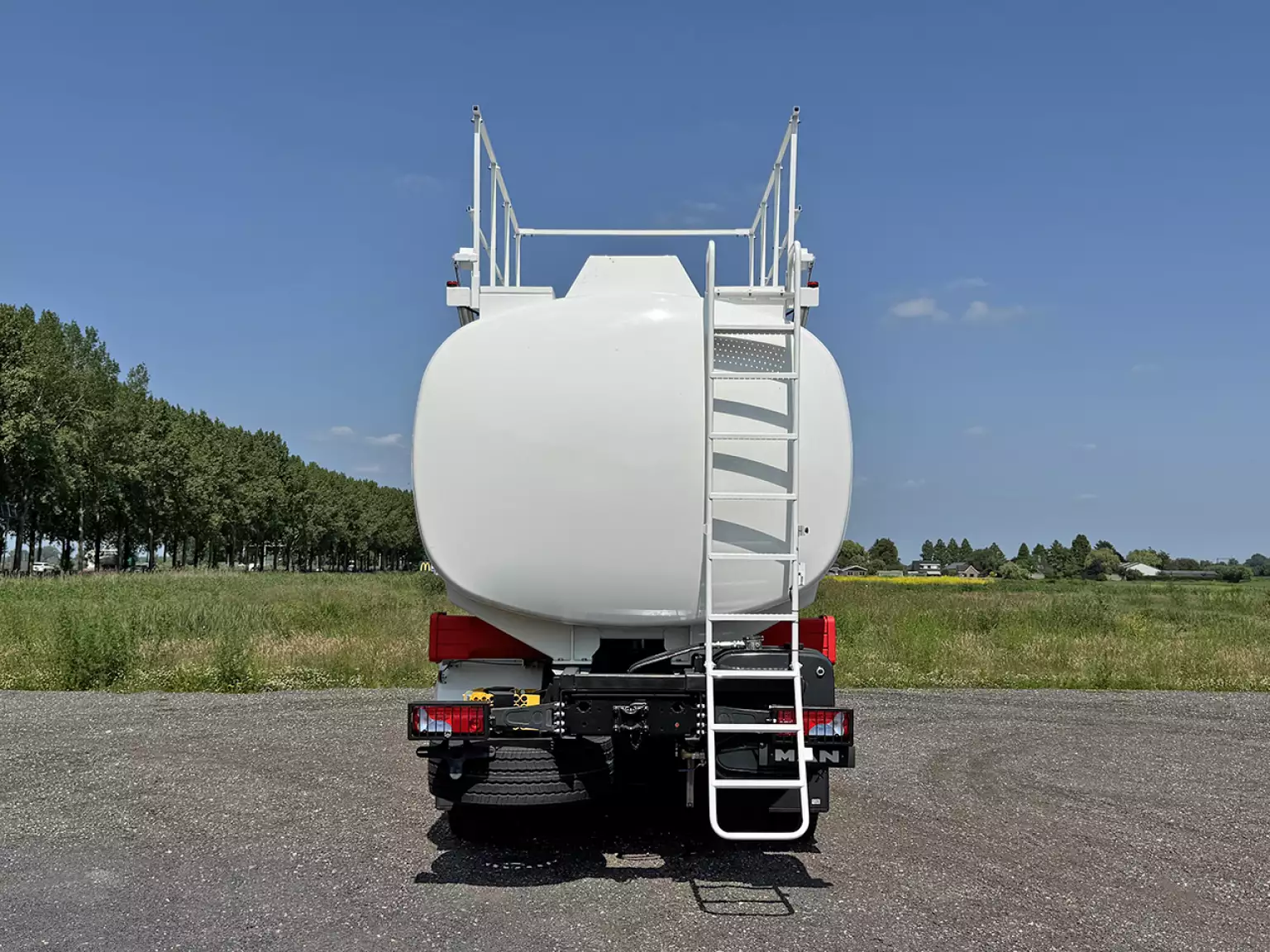

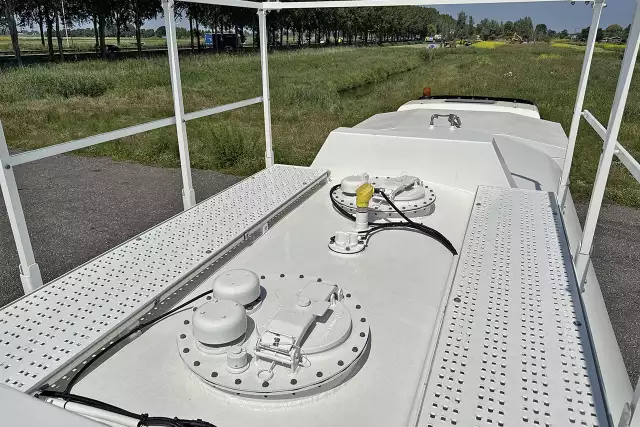

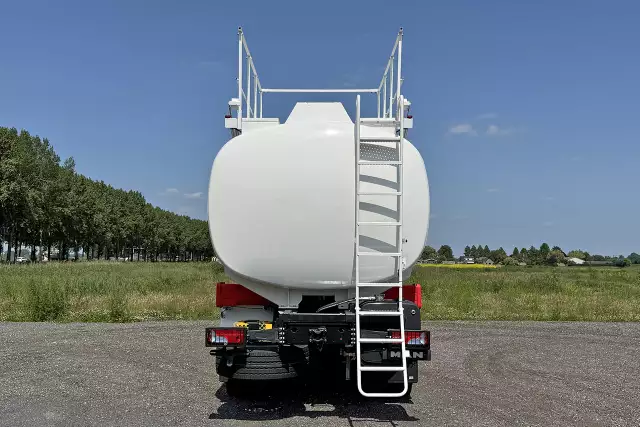

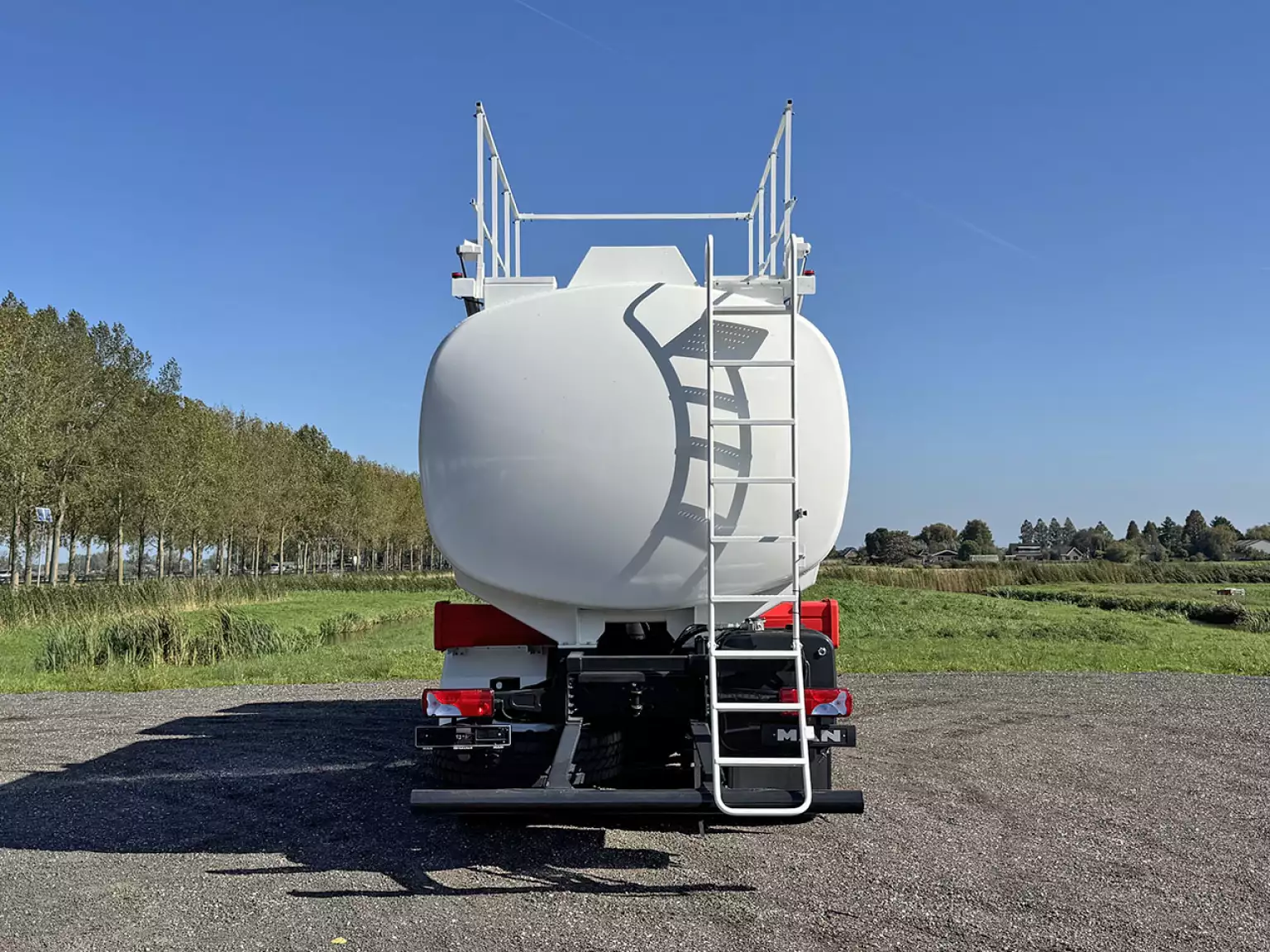

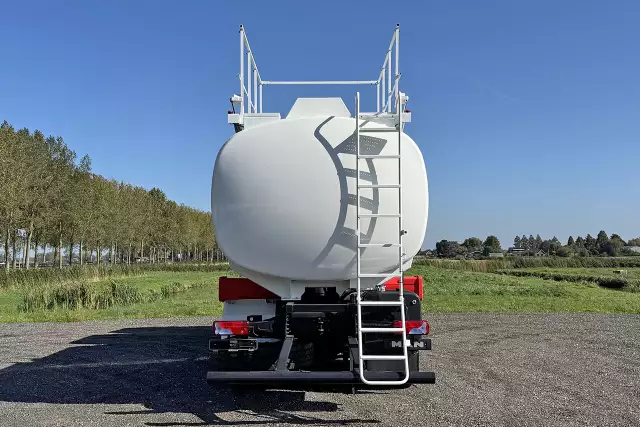

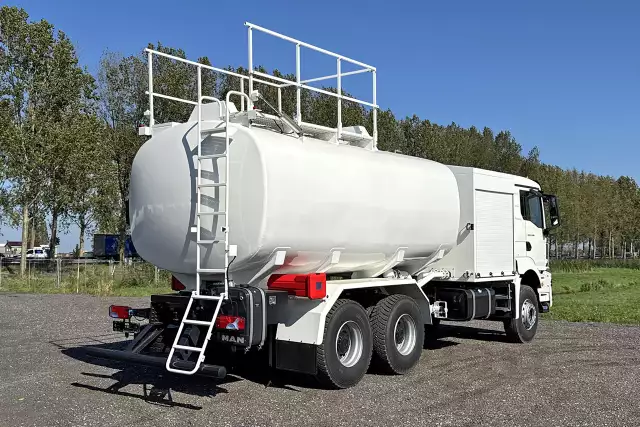

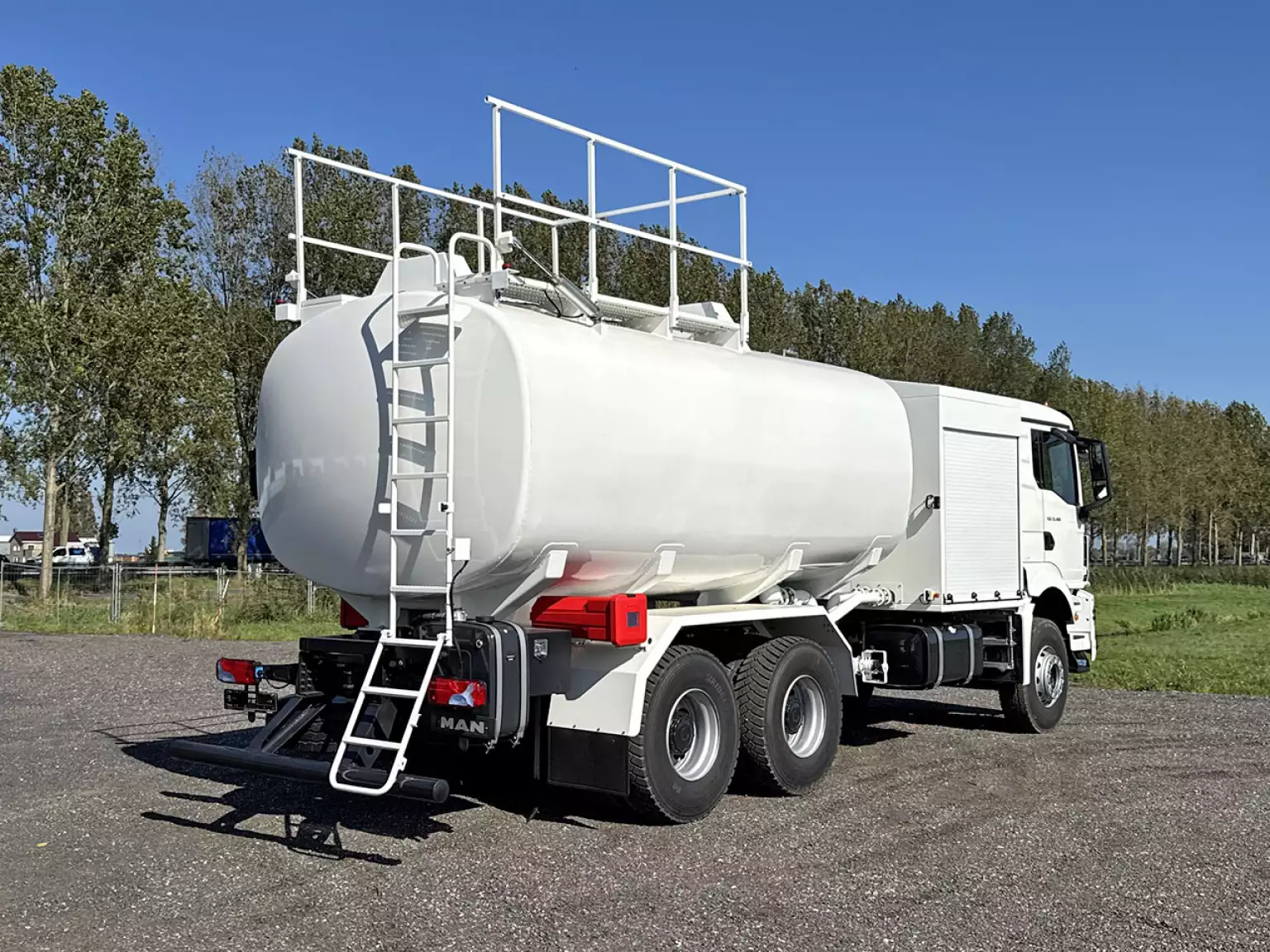

Aluminum antislip catwalk on top of the tank and safety handrail.

The truck will be ready in December 2025.

Complete specification in PDF.
