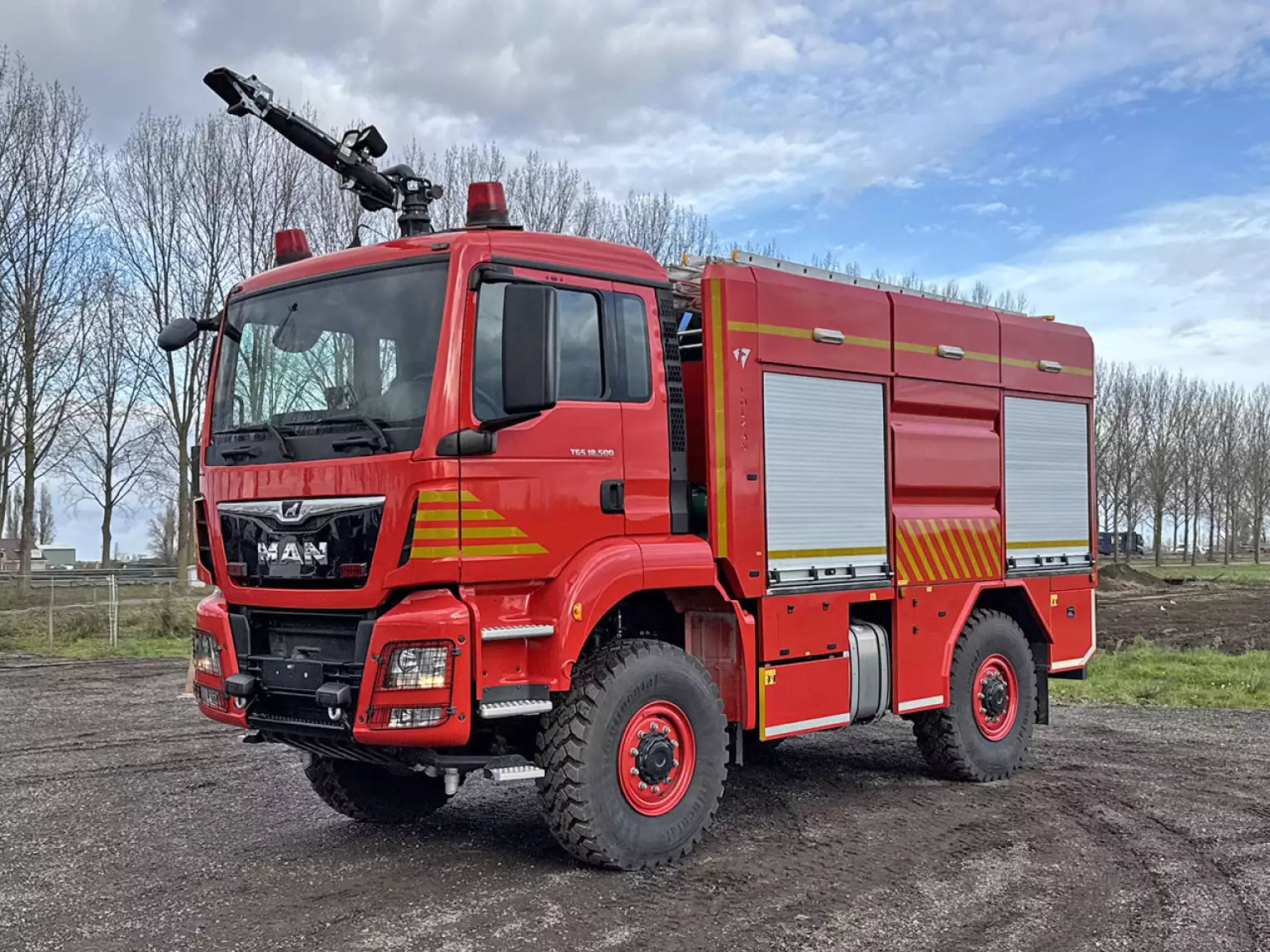

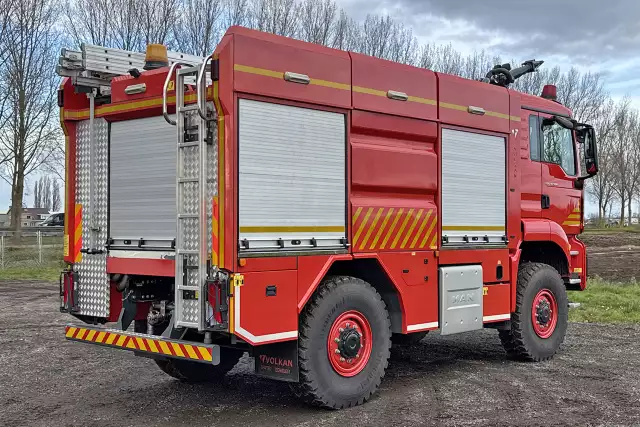

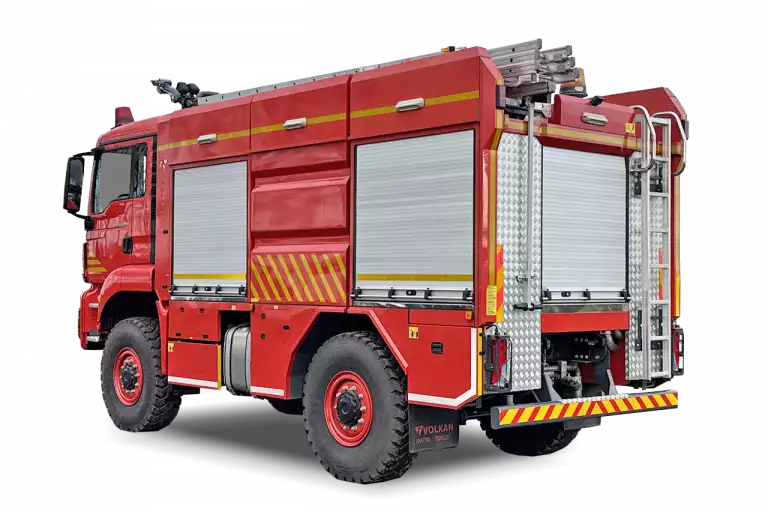

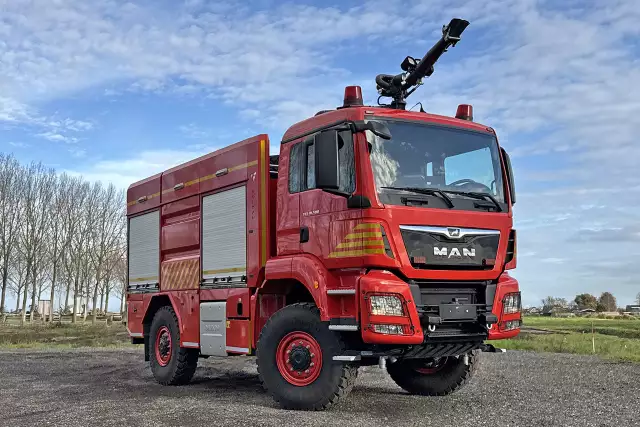

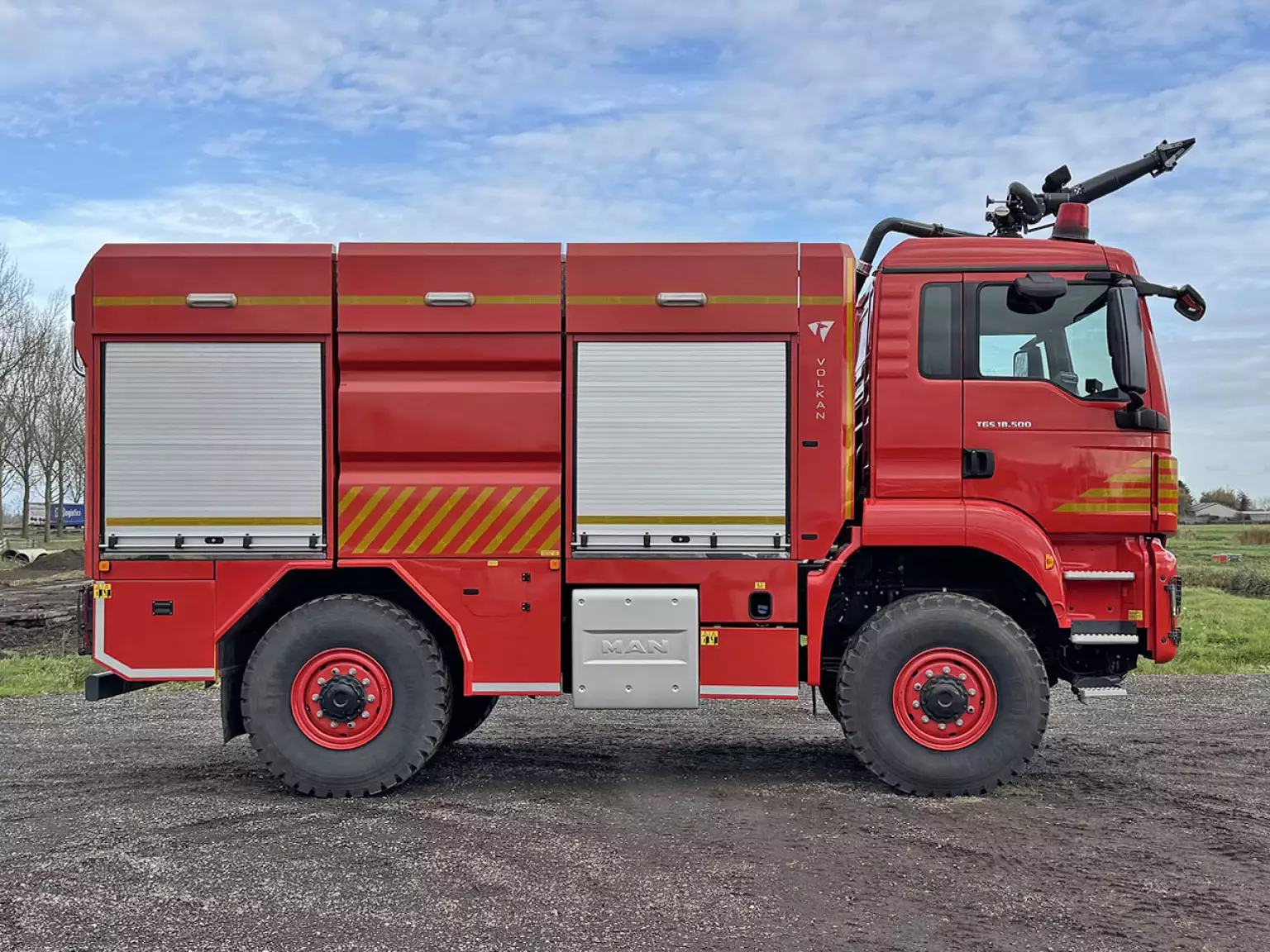

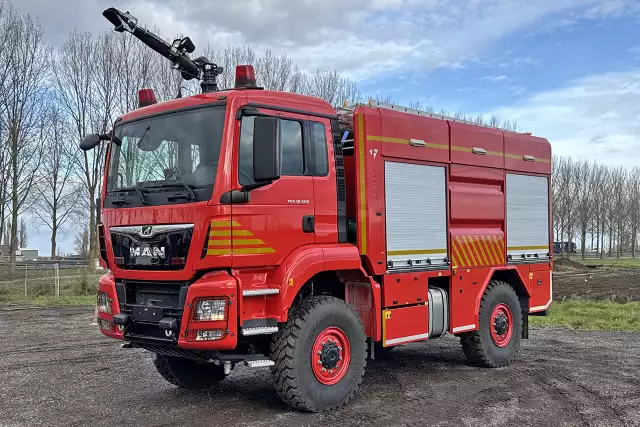

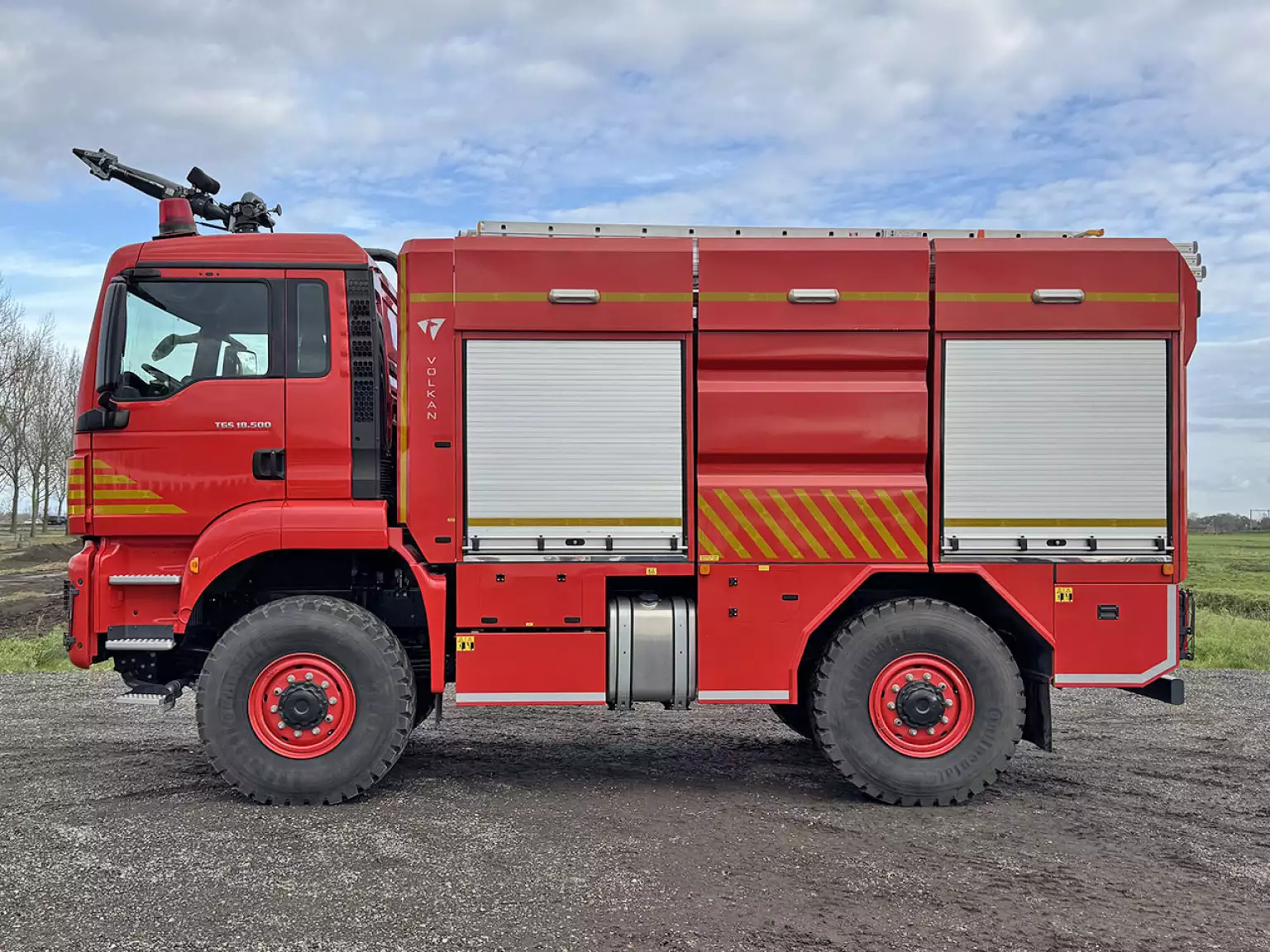

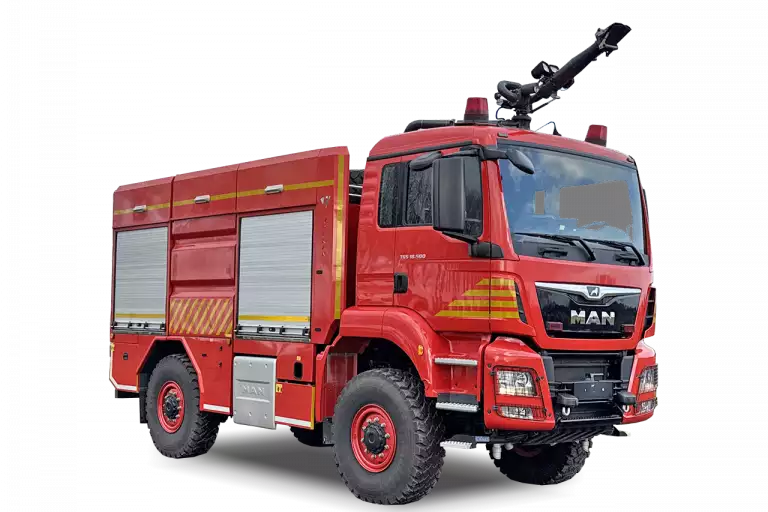

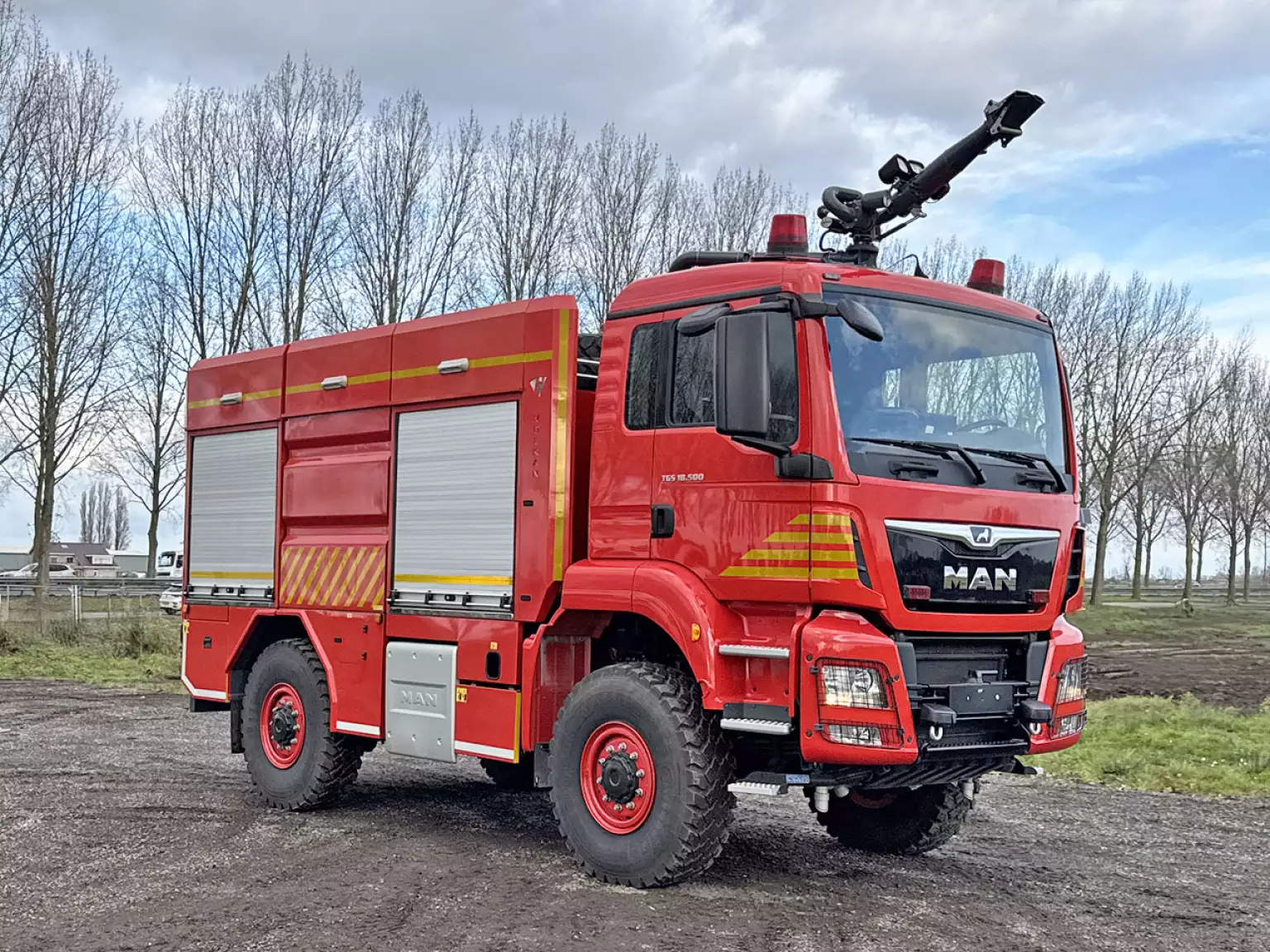

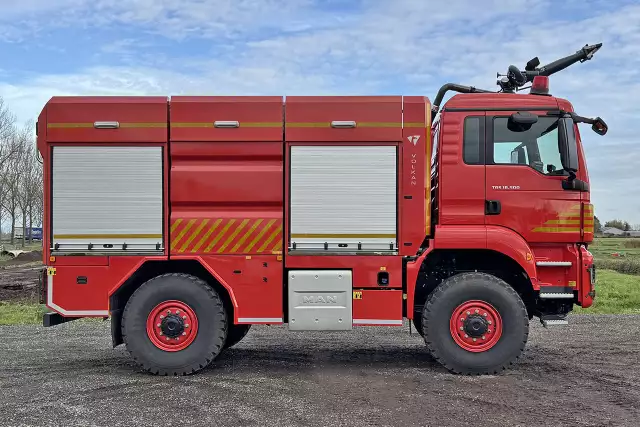

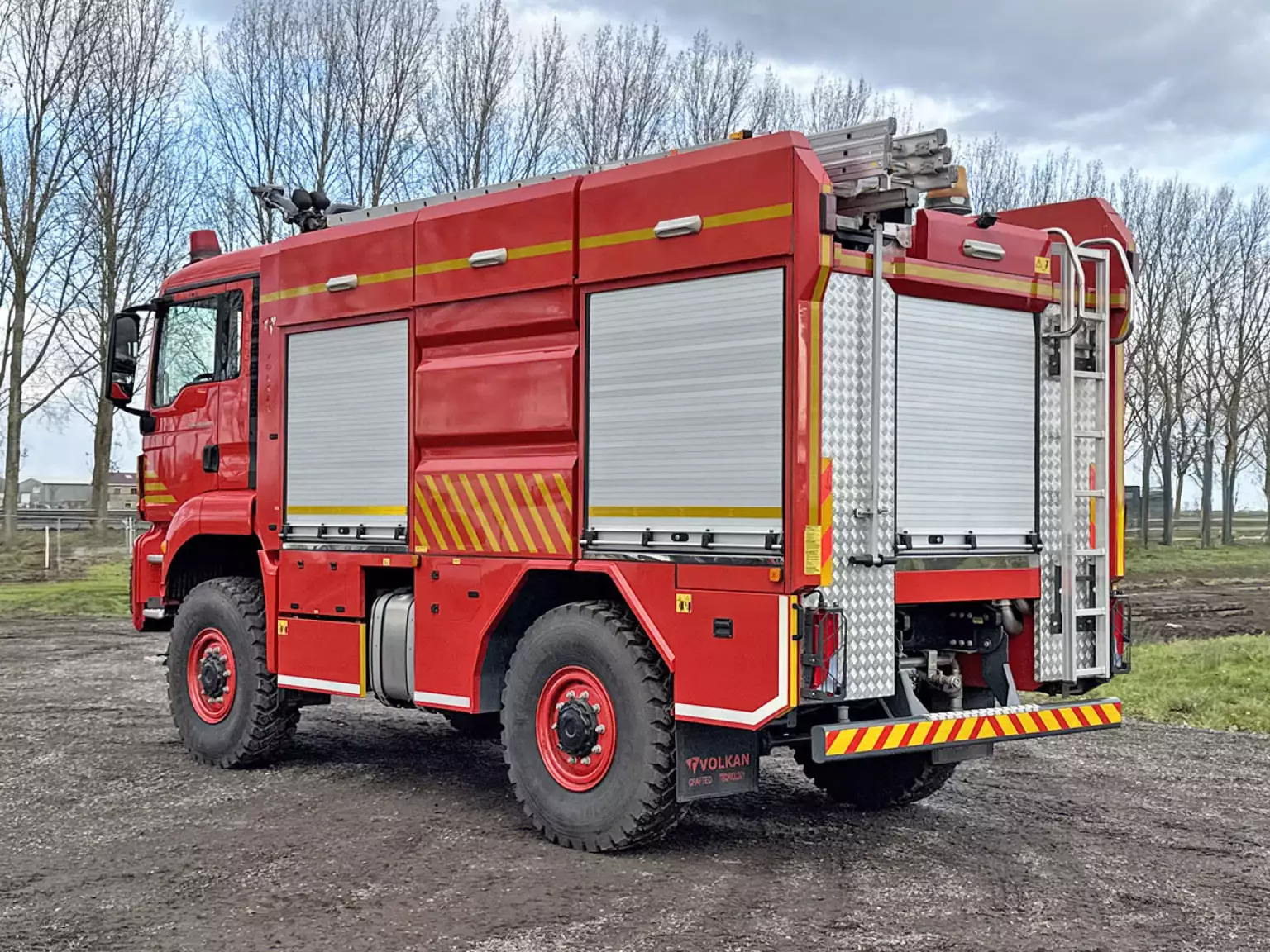

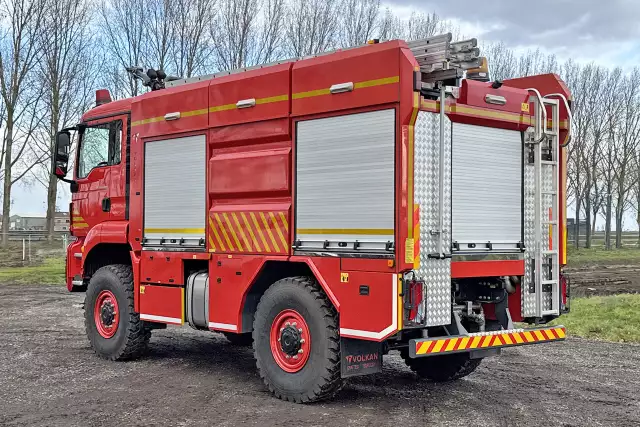

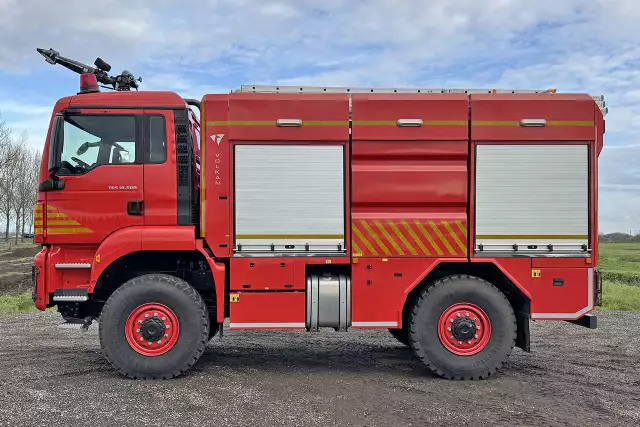

MAN TGS 18.500 BB 4x4 Camion de pompiers

Neuf
Left hand drive
Automatique
Volkan

MAN TGS 18.500 BB 4x4 Camion de pompiers

Web-ID: VMA5349

Disponibilité:: 2
Condition:: Neuf
Configuration des essieux:: 4x4
Moteur:: 500hp/368kW
Norme:: EURO-6
Transmission:: Automatique
Prix:: Price on request

Demande de devis Contact

Vue d'ensemble du véhicule

Catégorie:: Camions Pompiers
Marque:: MAN
Type:: TGS 18.500 BB
Configuration des essieux:: 4x4
Marque de construction: Volkan
Volume: 4000 Ltr.

Spécifications techniques

Numéro de stock VMA5349

Puissance moteur 500hp/368kW

Norme EURO-6

Carburant Gasoil

Type moteur D2676LF66

Cylindrée 12.419 cc

Cylindres 6

Transmission Automatique

PTO Flywheel

Boîte de vitesse TipMatic 12.28 OD

Suspension Suspension à lames

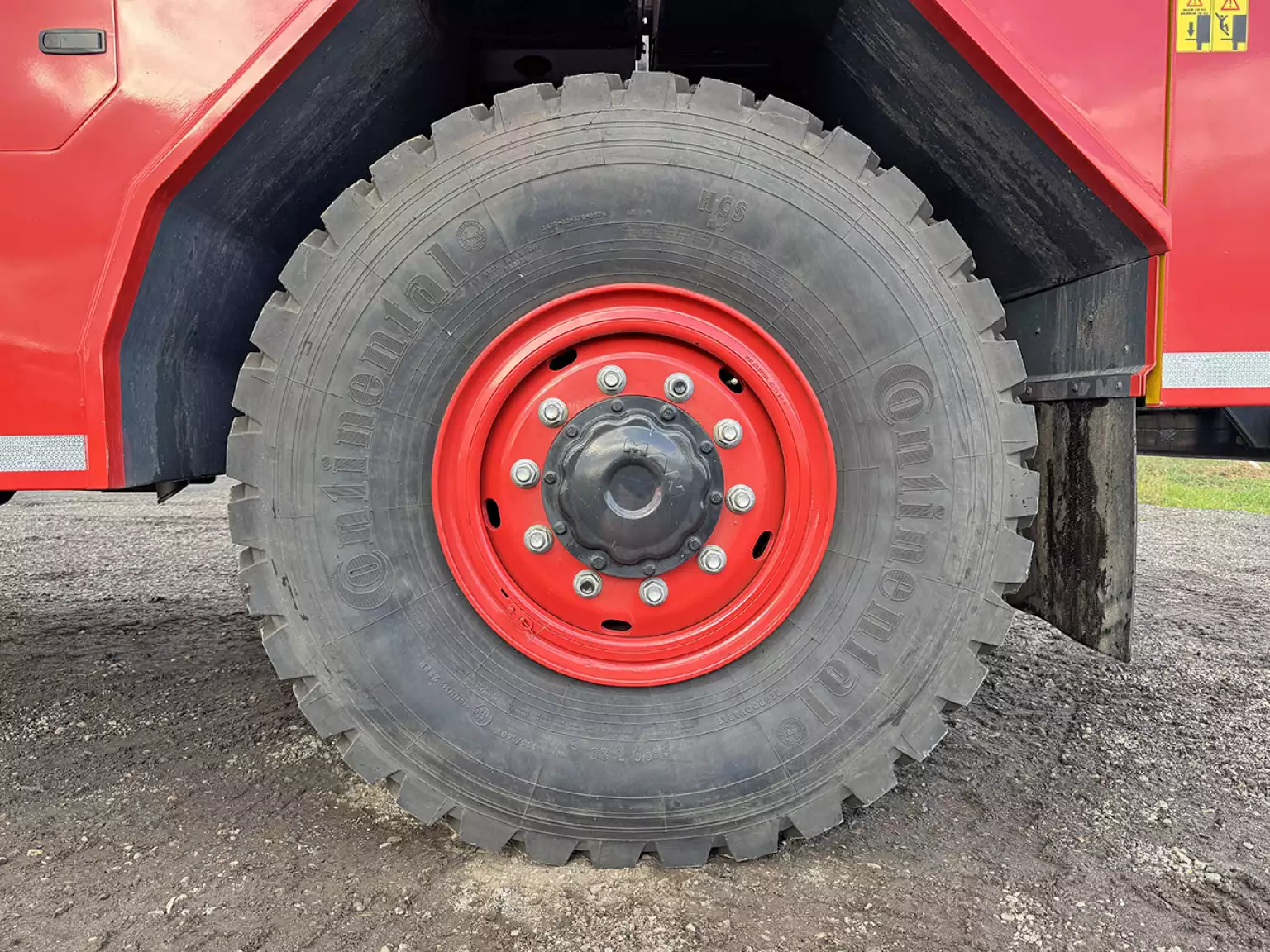

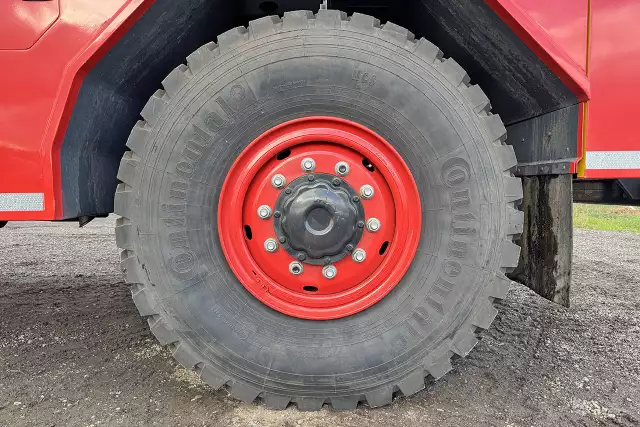

Pneus 14.00R20

Empattement 3.600 mm

Cabine Cabine courte

Poids Total Autorisé en Charge (PTAC) 18.000 kg

Longueur du véhicule 8.000 mm

Largeur du véhicule 2.550 mm

Hauteur du véhicule 3.900 mm

Année modèle 2019

Année de production 2019

Remarque Fuel tank: 200 ltr.
AdBlue tank: 35 ltr.

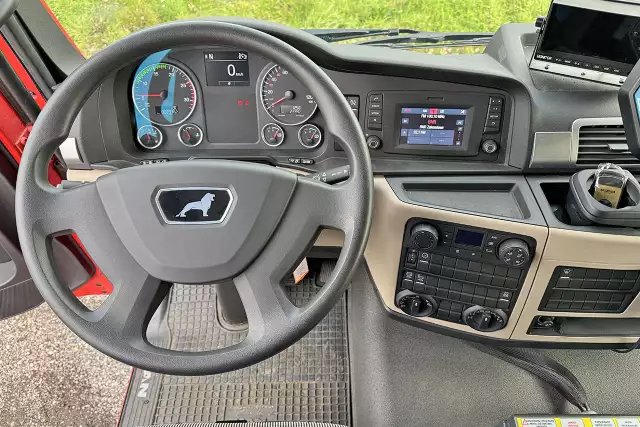

Air conditioning

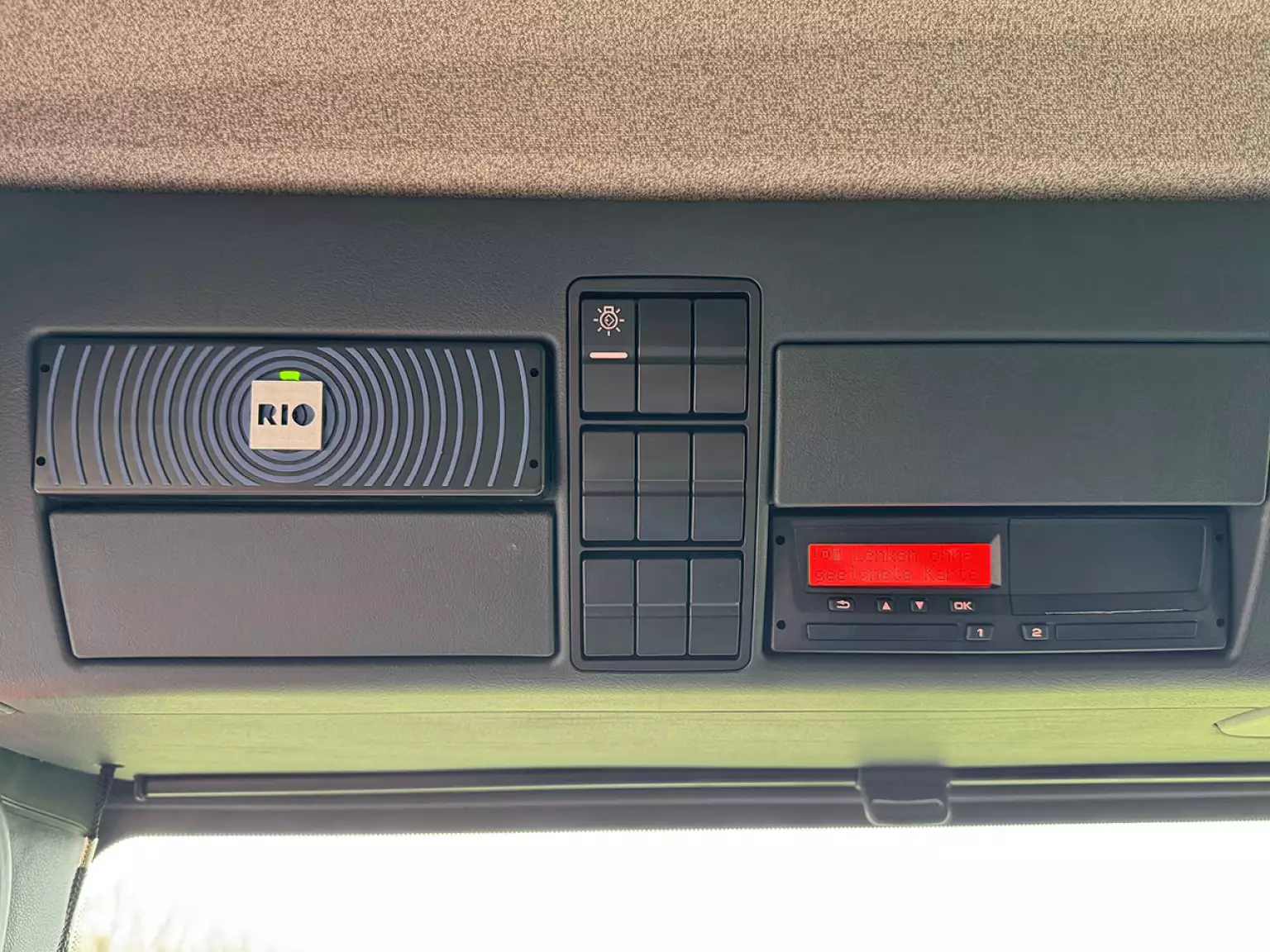

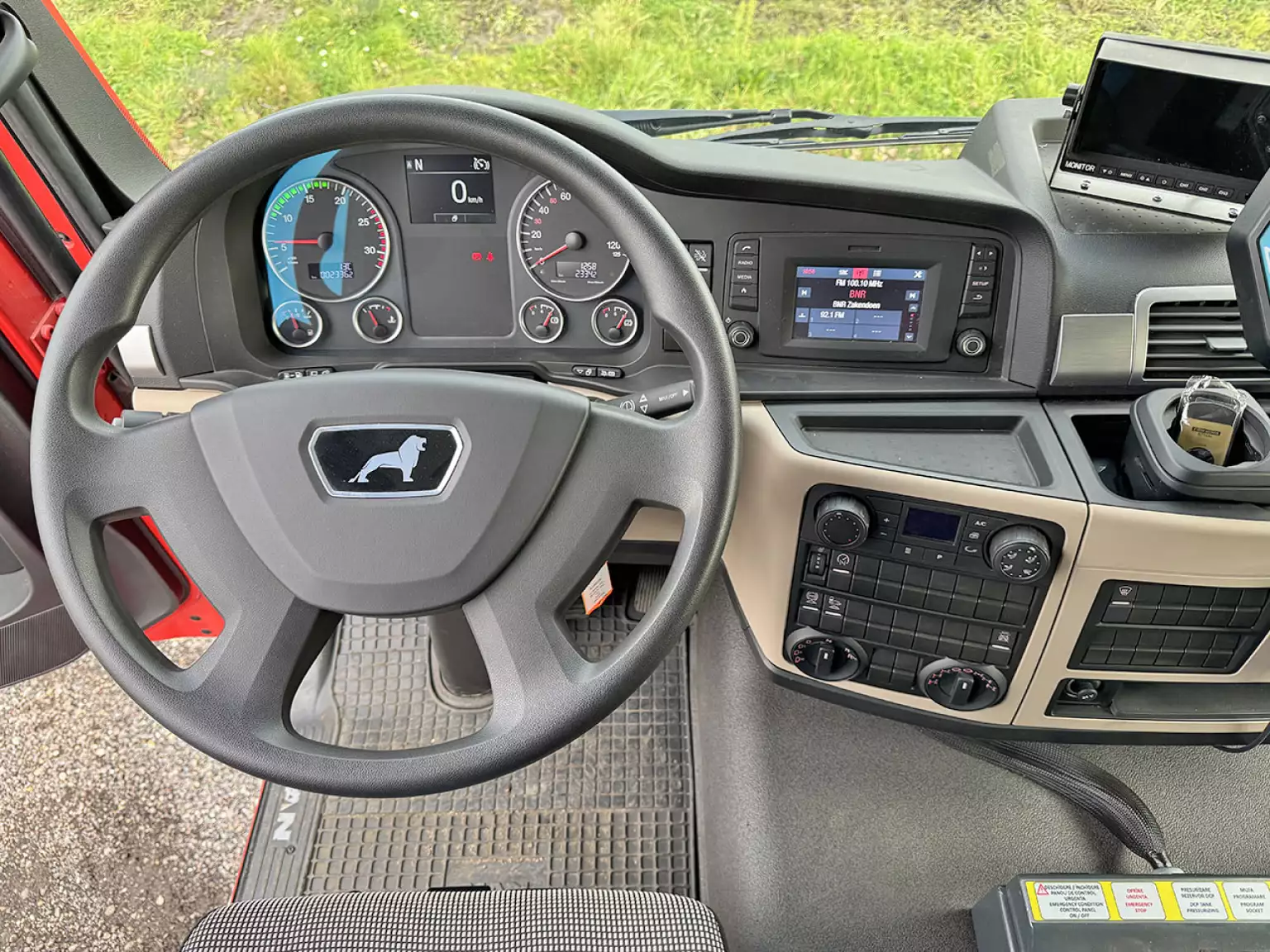

MAN Media Truck radio
Reverse camera, with extra display

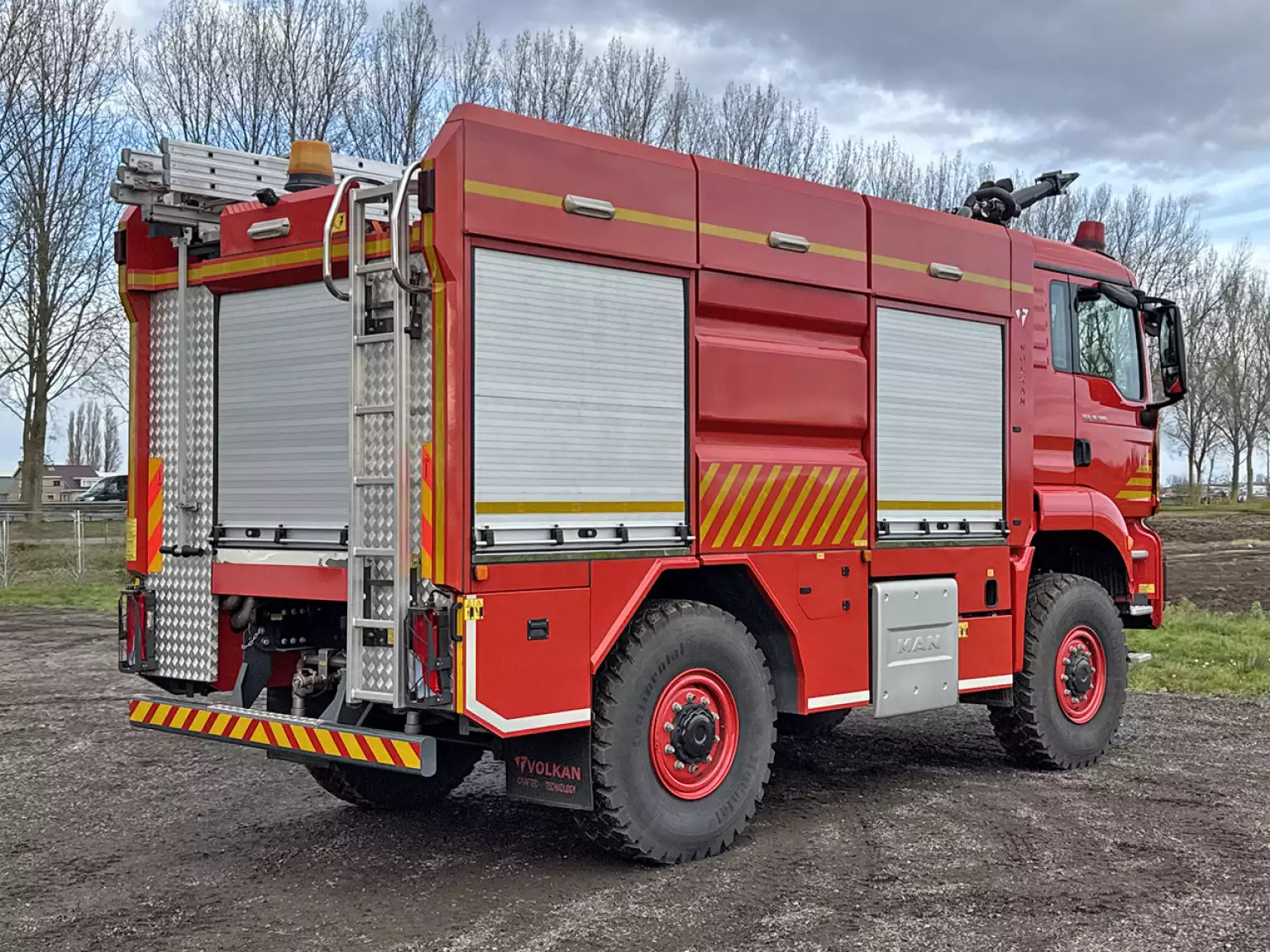

Equipped with Volkan fire fighting engine:

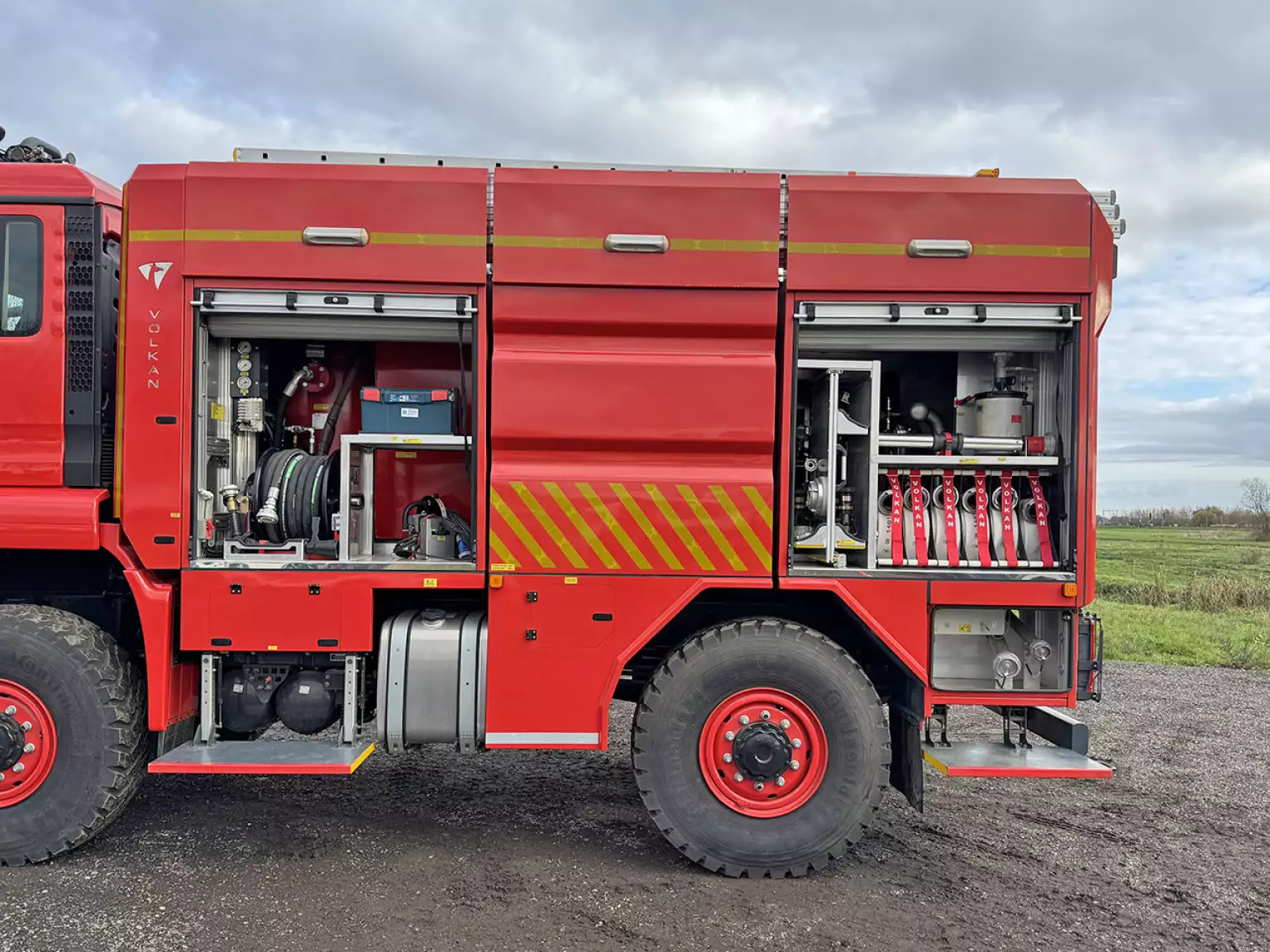

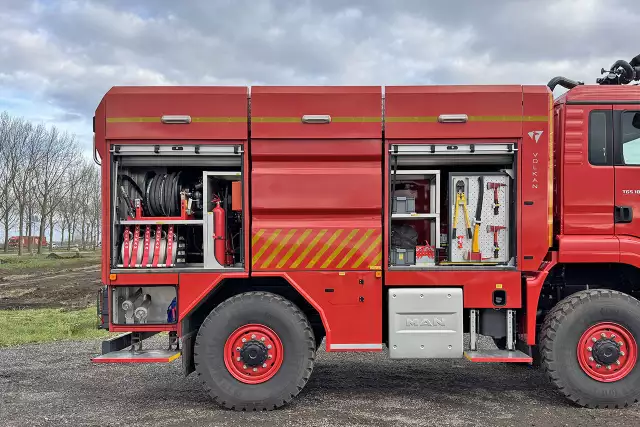

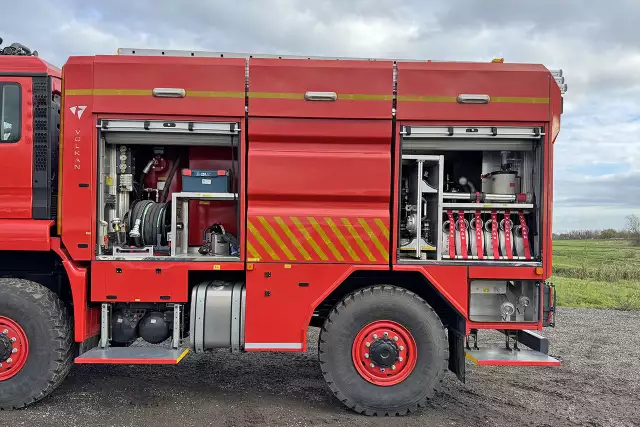

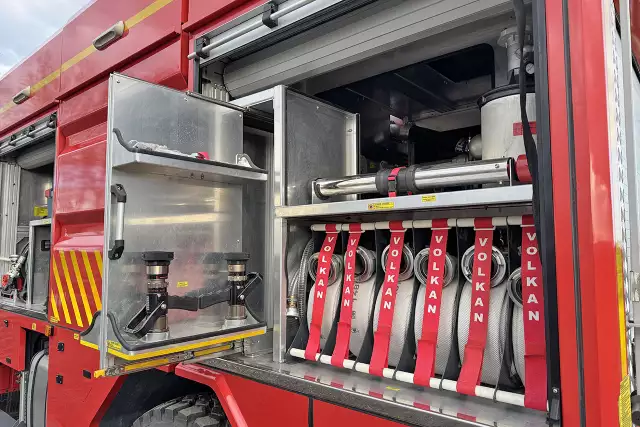

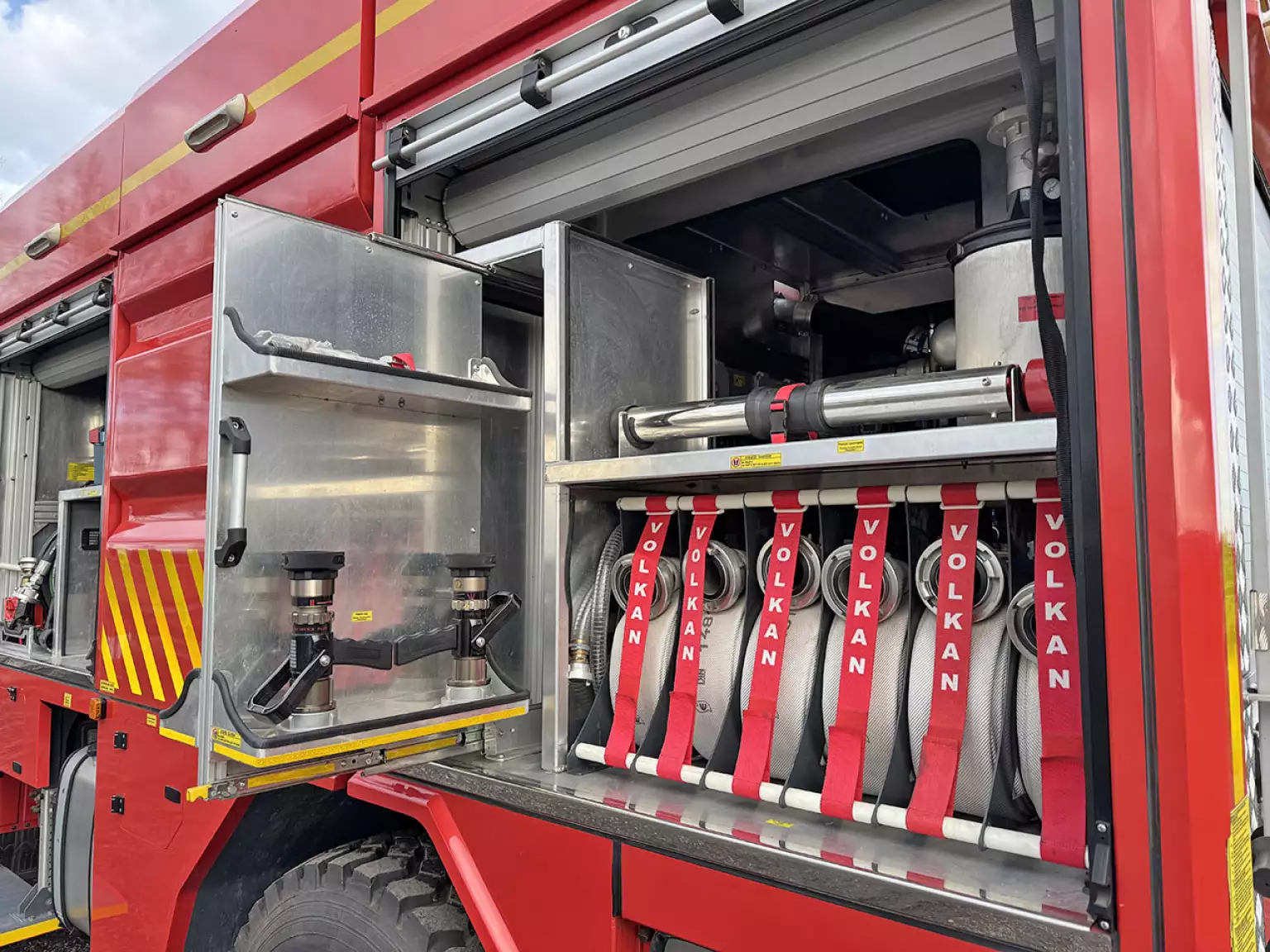

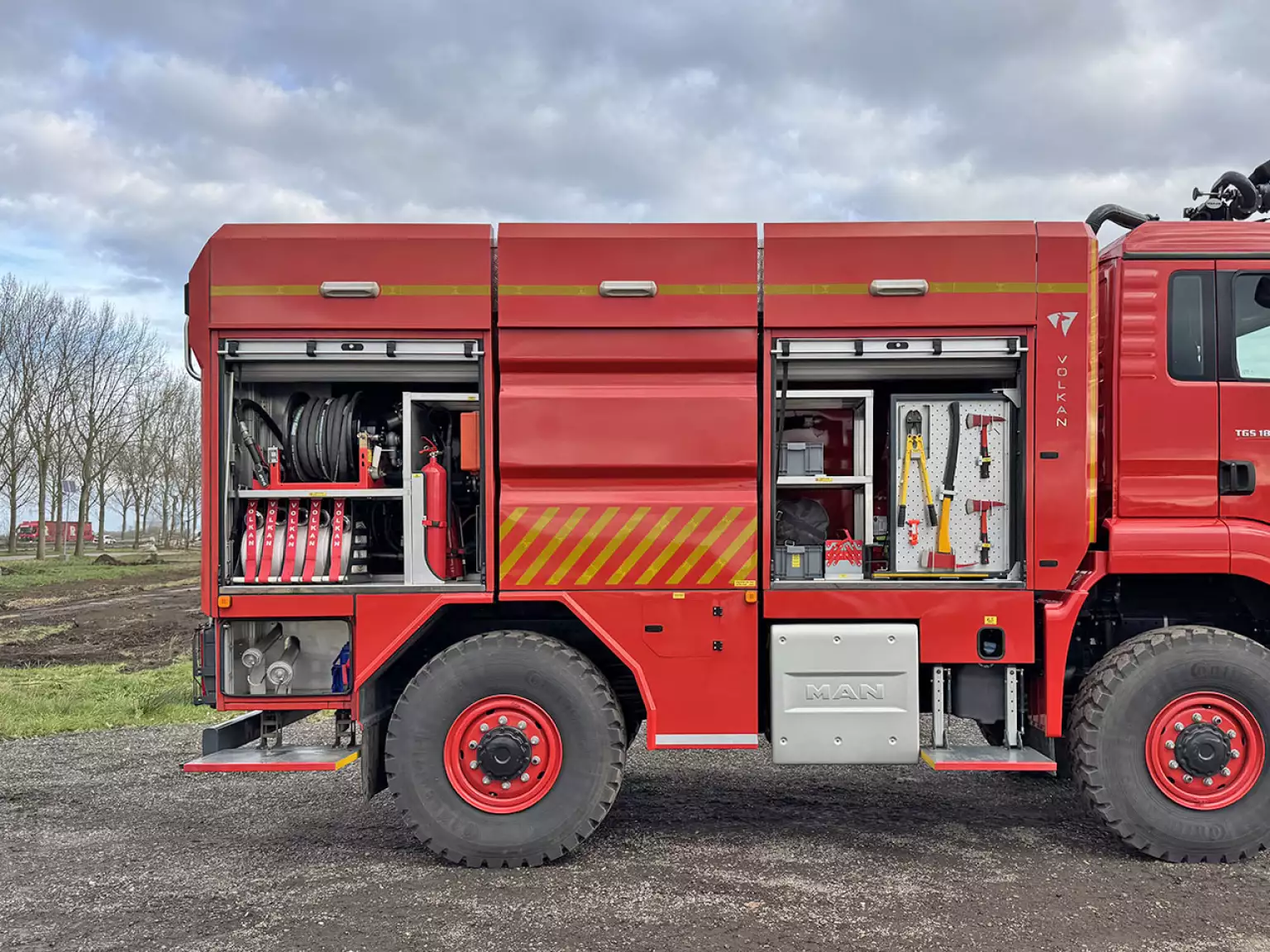

2+2+1 lockers layout
Tanks: water 4.000 ltr. + foam 550 ltr.

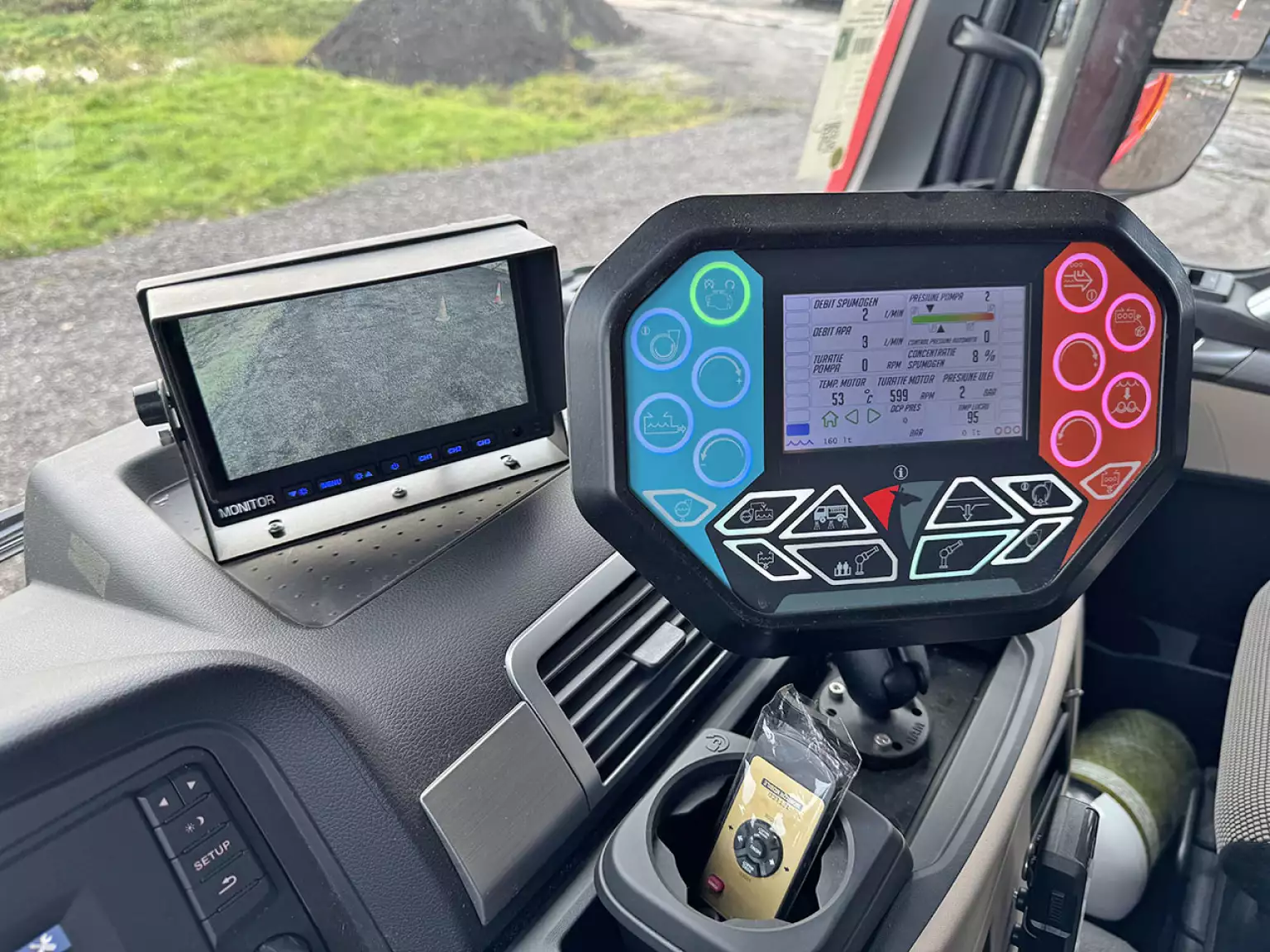

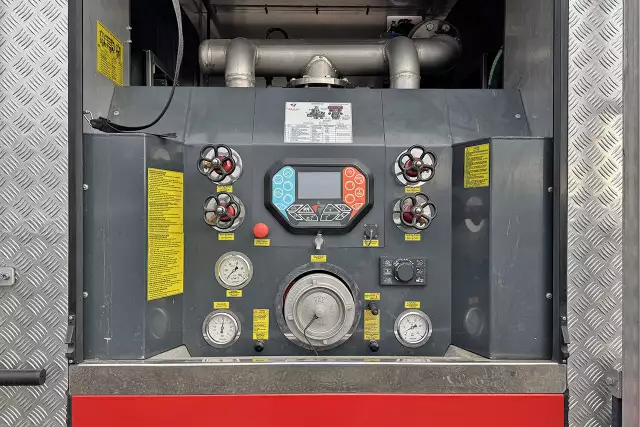

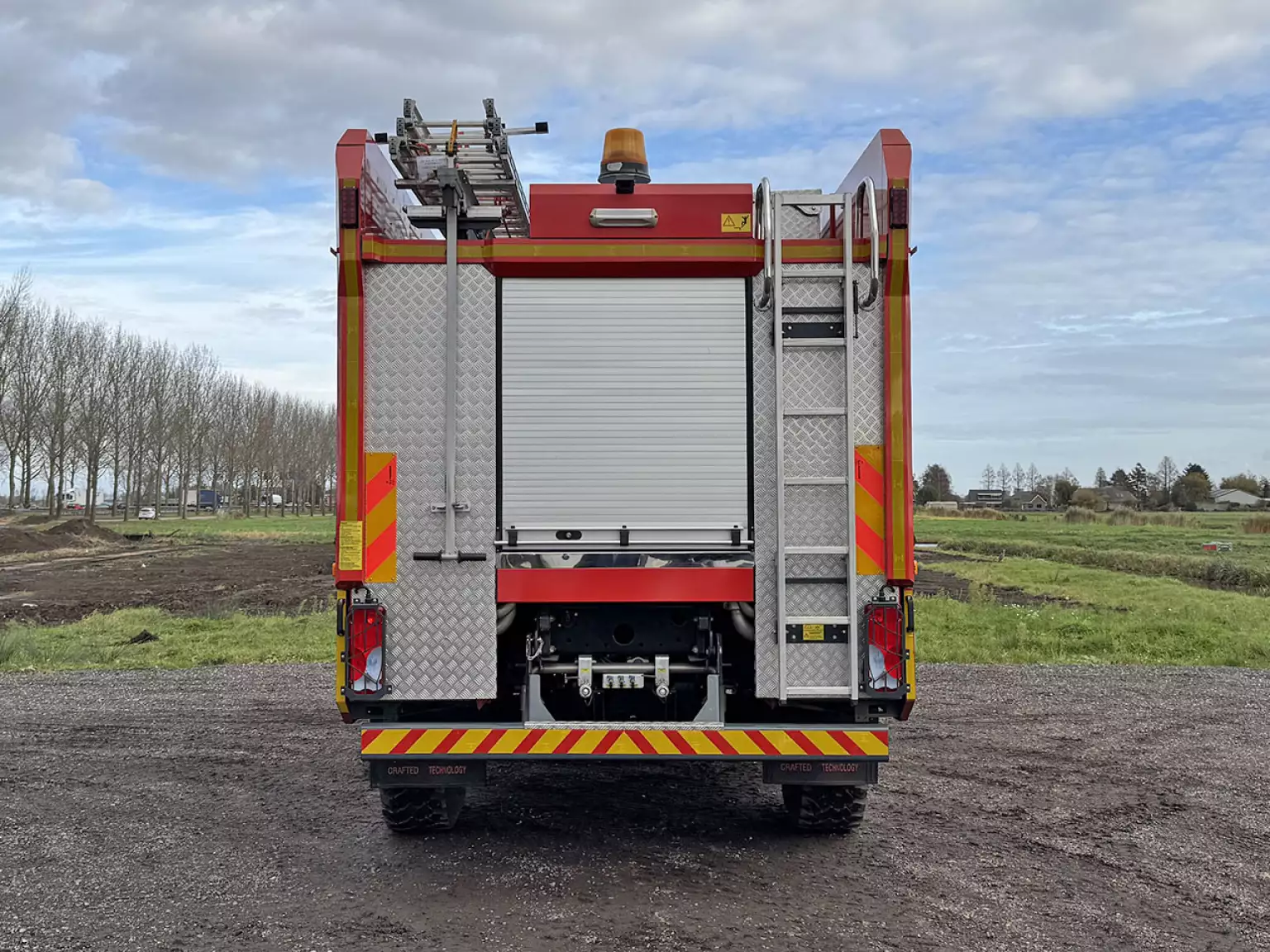

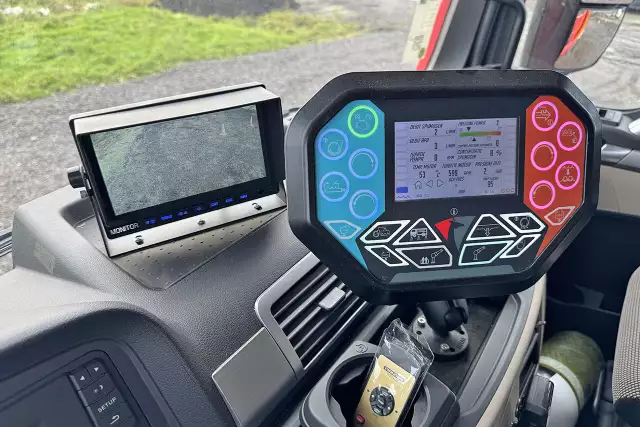

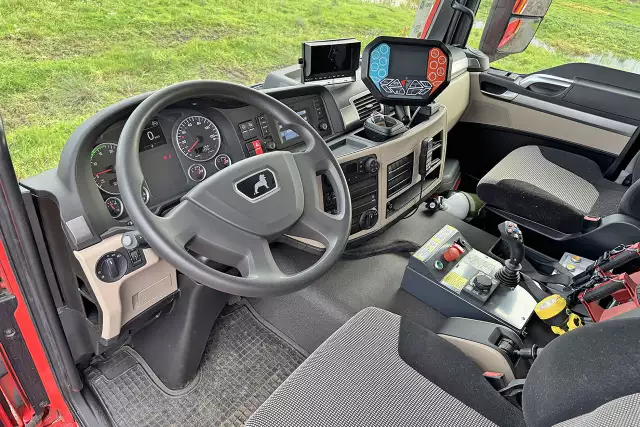

Control panel in the cabin and outdoors at the rear with a complete overview of information.

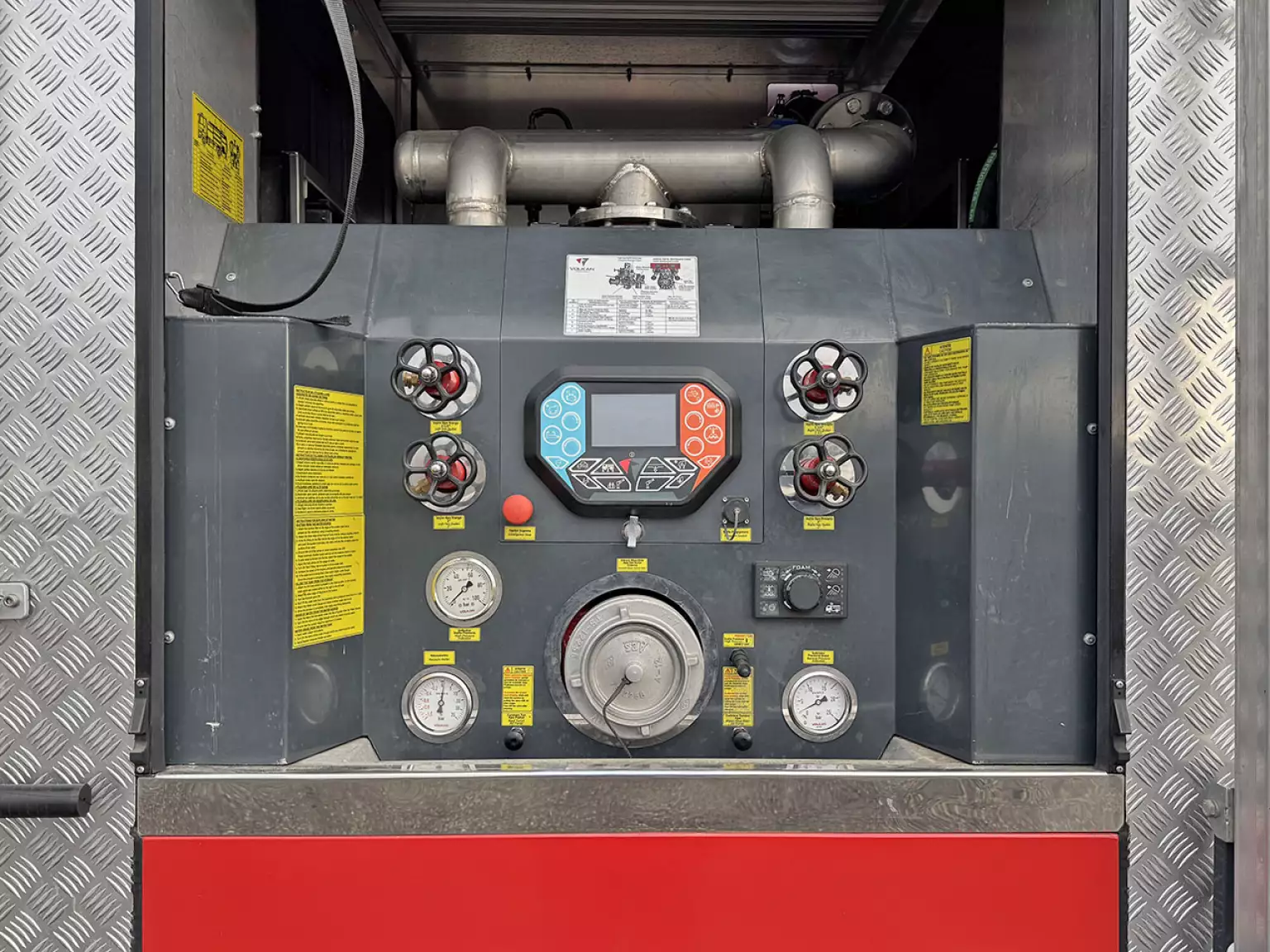

Central pumping unit VFPN-H 10-400/40-250
Centrifugal pump with 2 self-priming steps

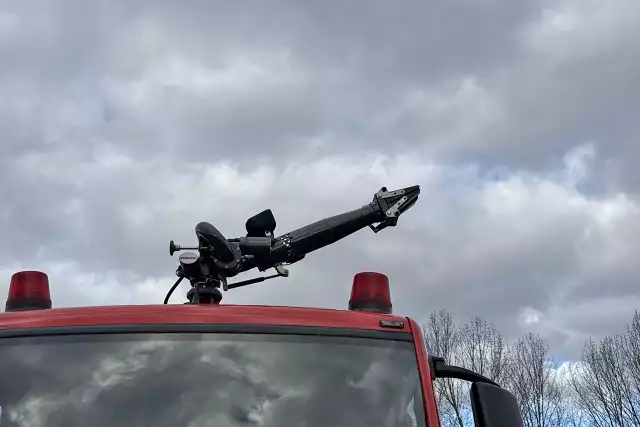

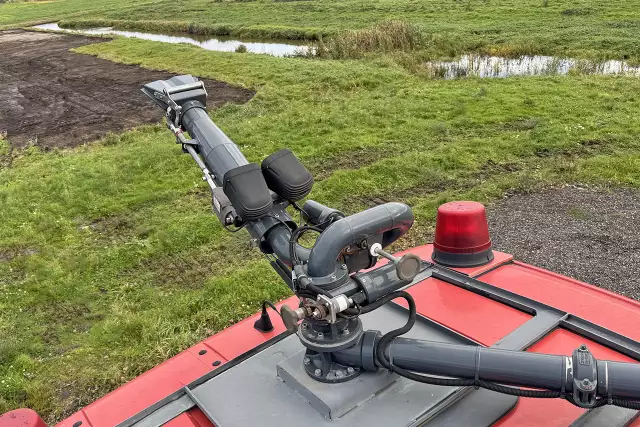

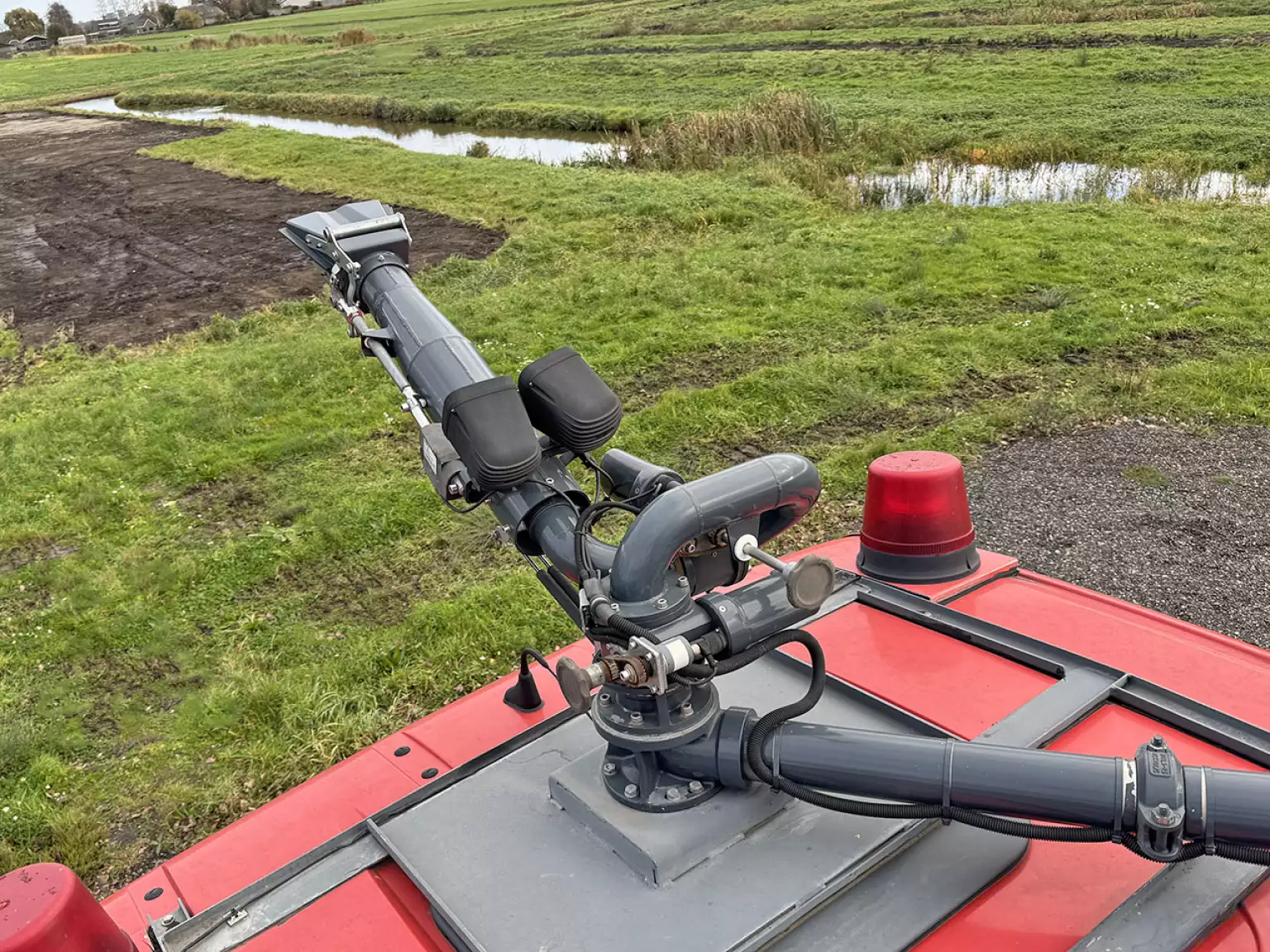

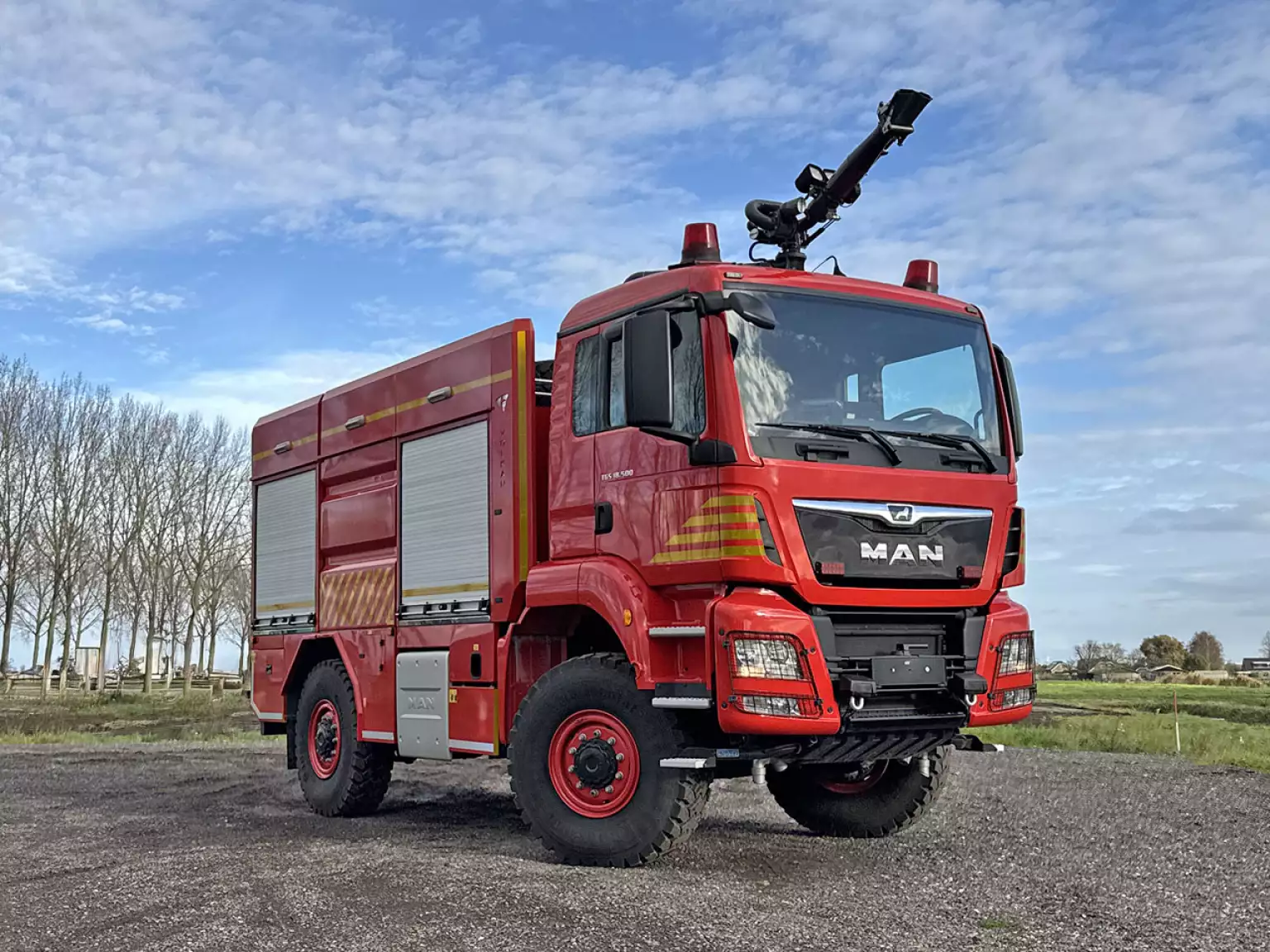

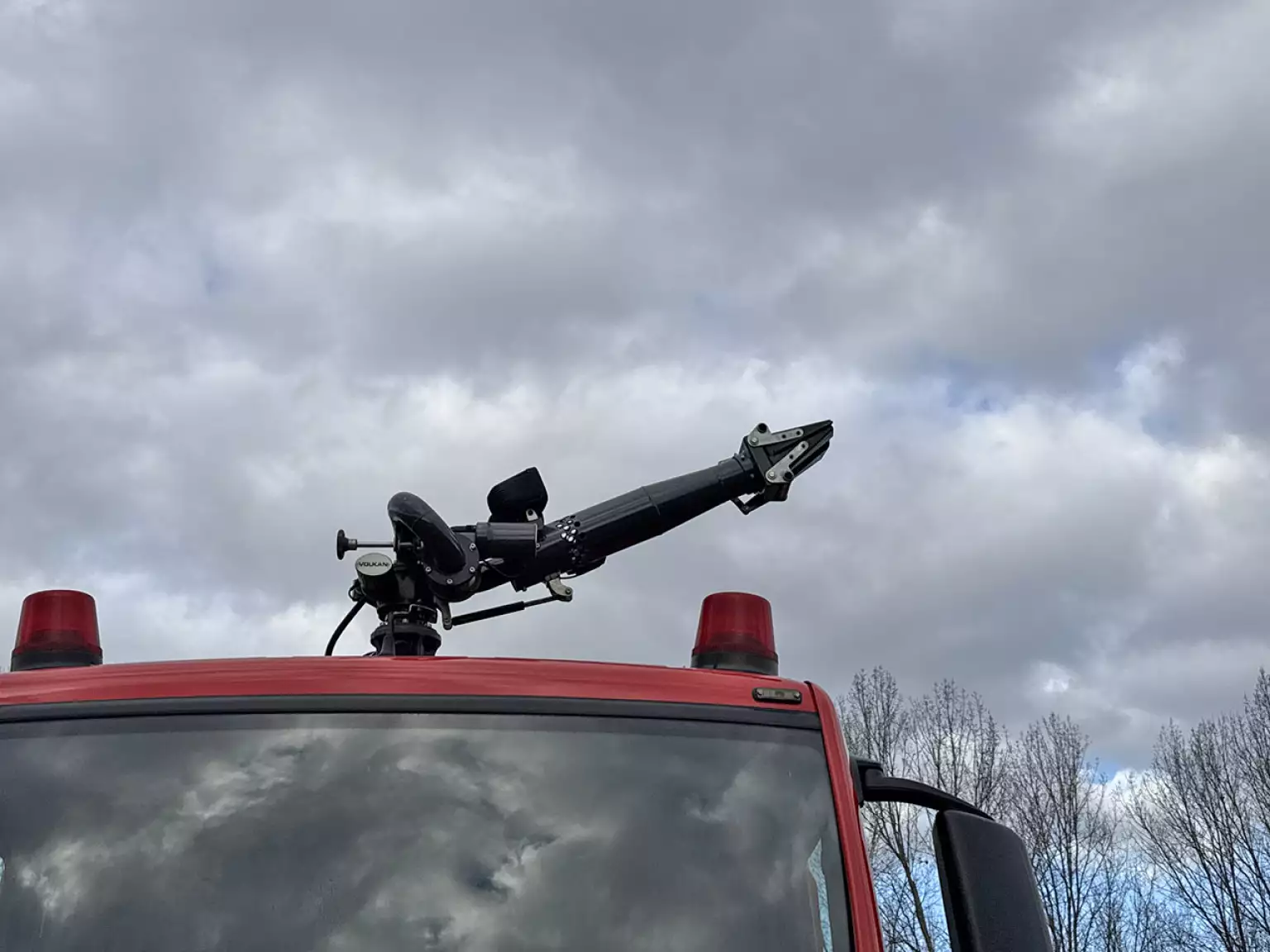

Water and foam monitor: WG3000SE
Monitor flow rate of 3.000 ltr. / min.

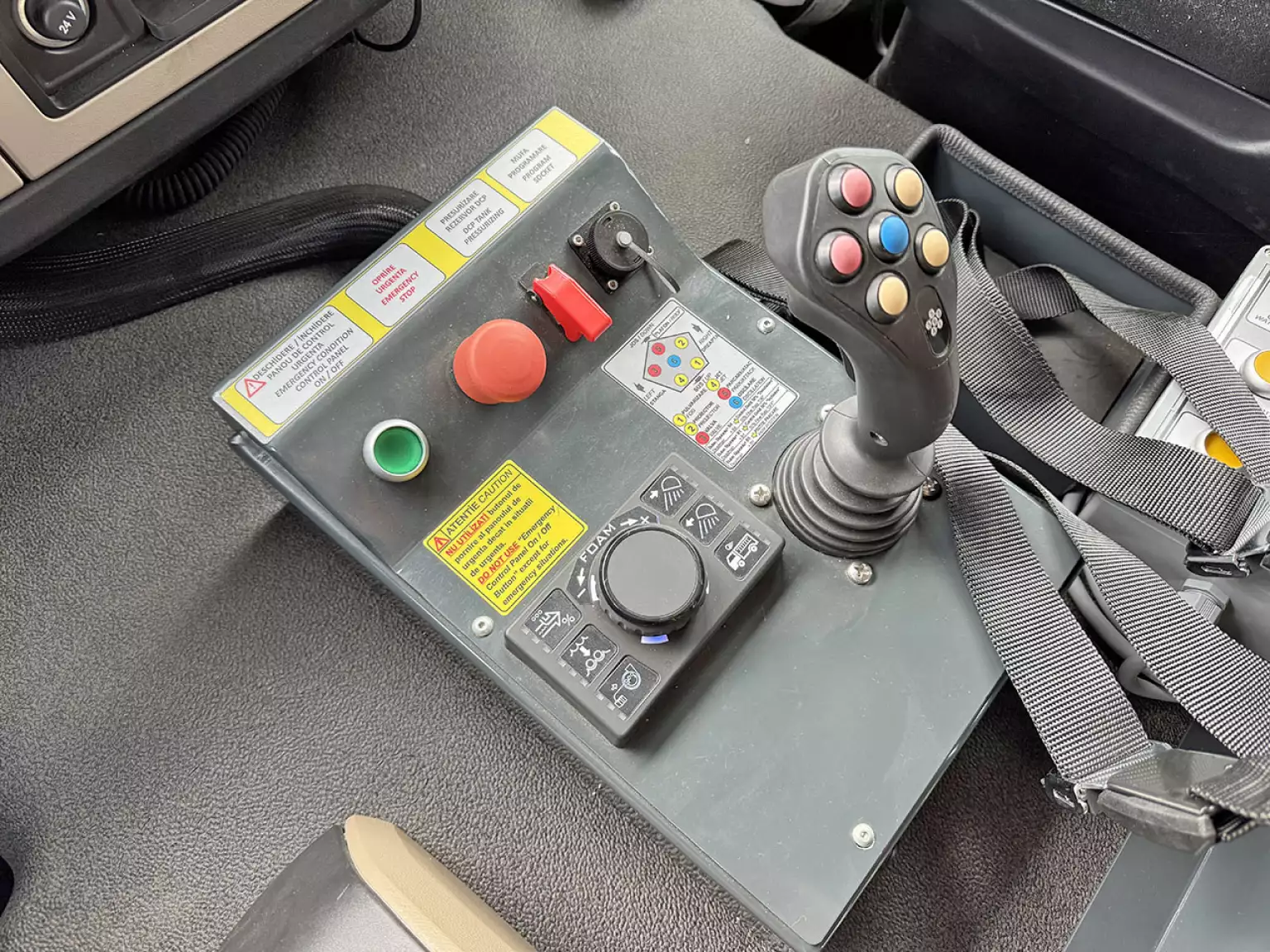

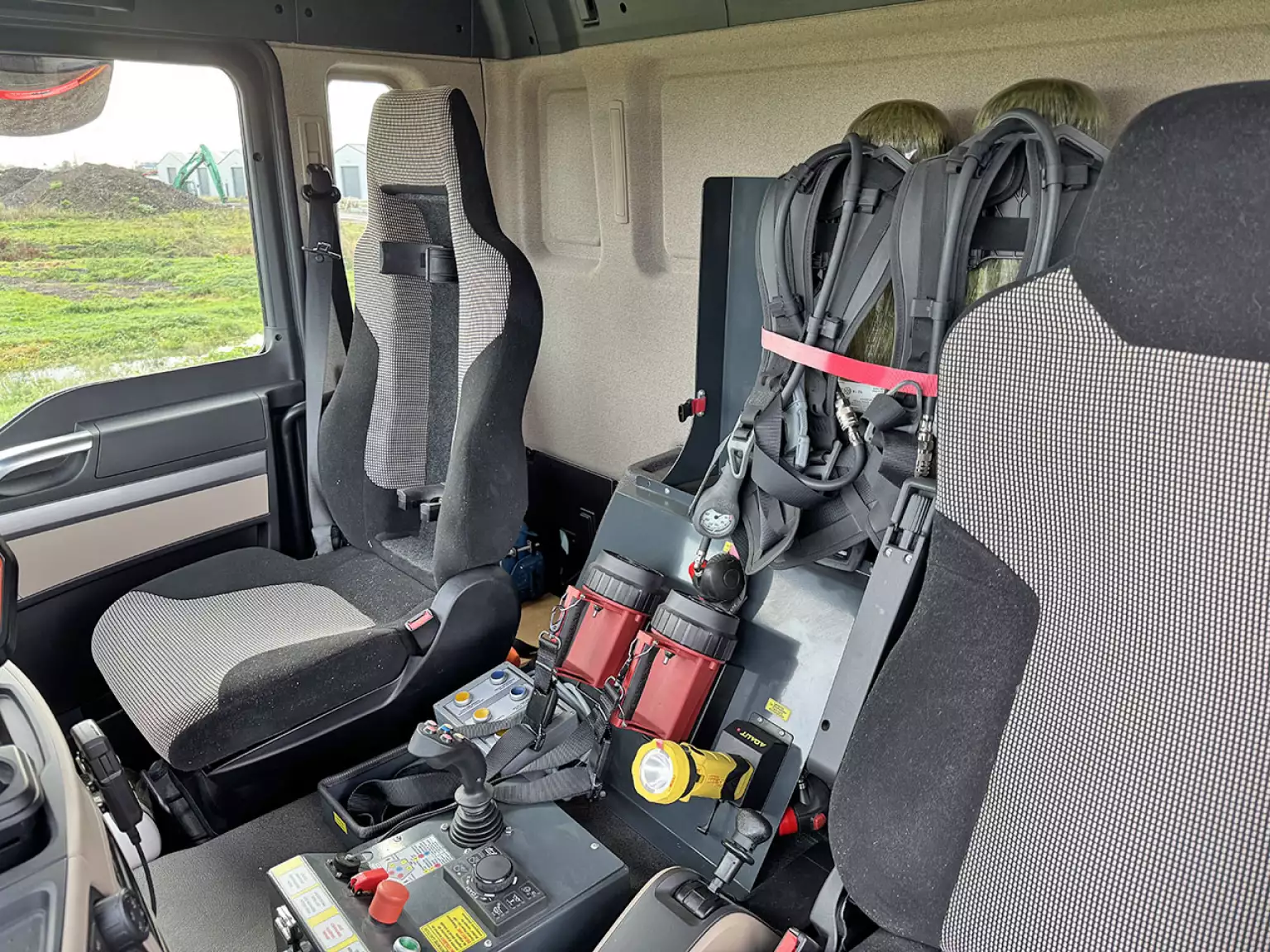

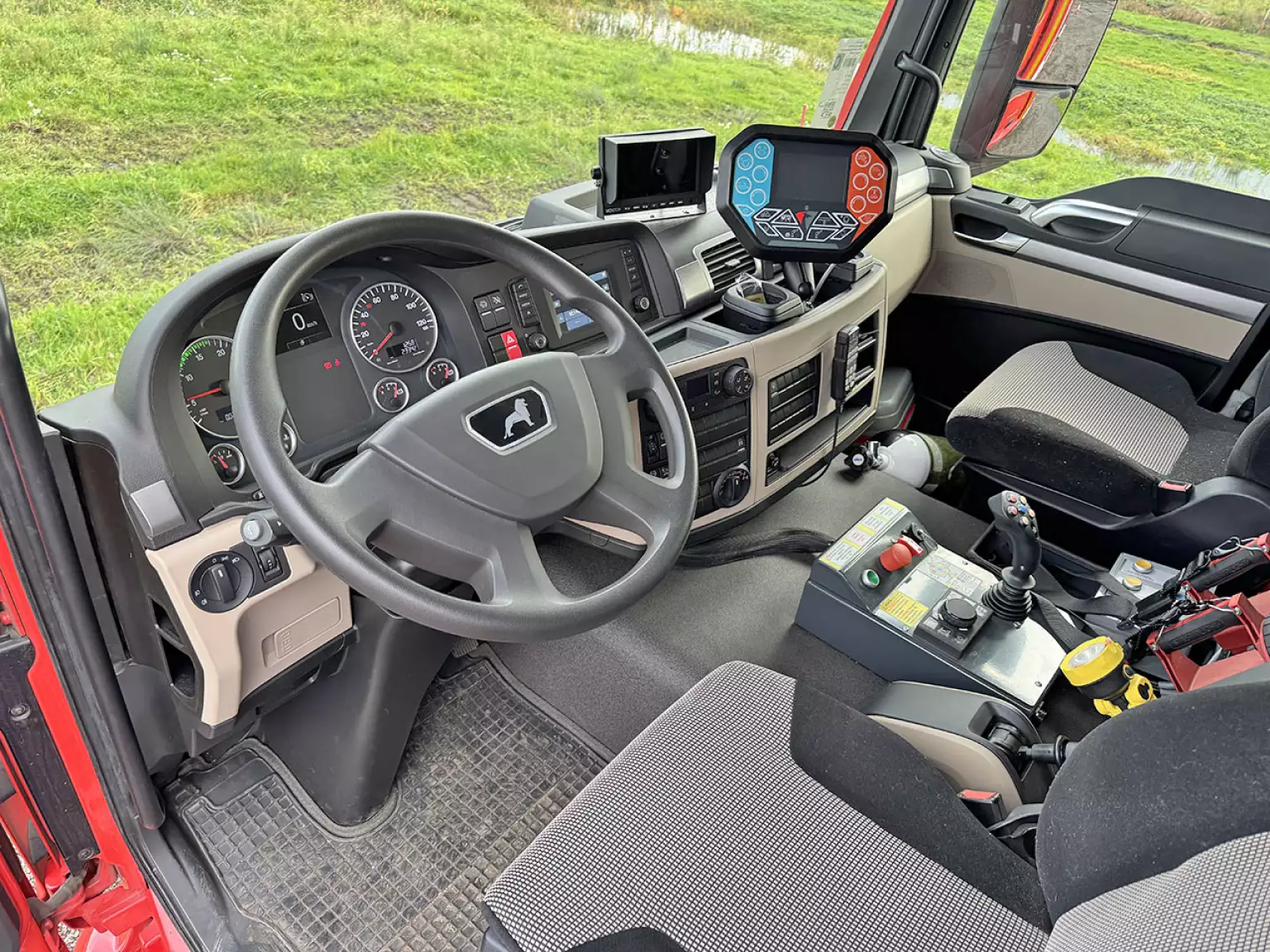

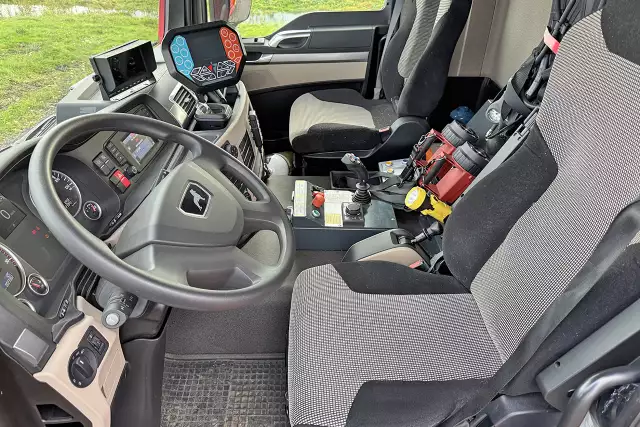

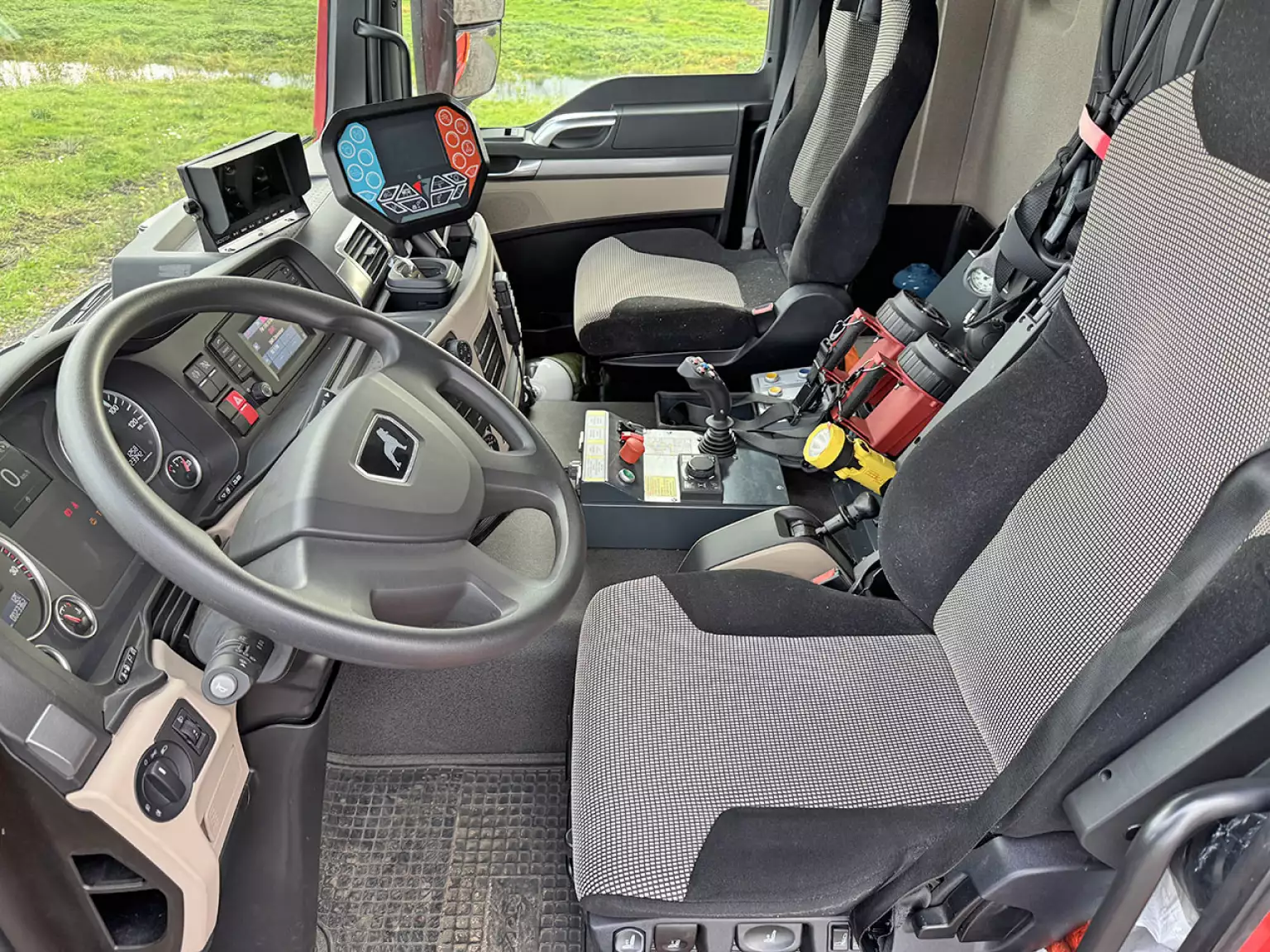

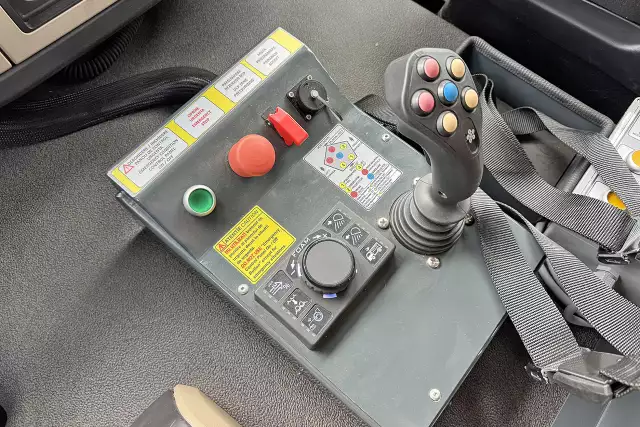

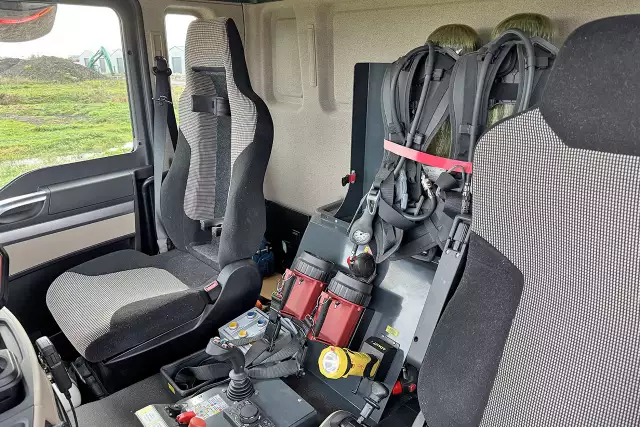

Command: joystick type, in the vehicle cabin.
Shape of the jet adjustable by the joystick
Range of the monitor at the maximum capacity: with a full jet of foam is 45 mtr. with a full jet of water is 60 mtr.
Lifting the monitor vertically from -50 to + 450, horizontal rotation of the monitor 2700, (1350 in each direction)

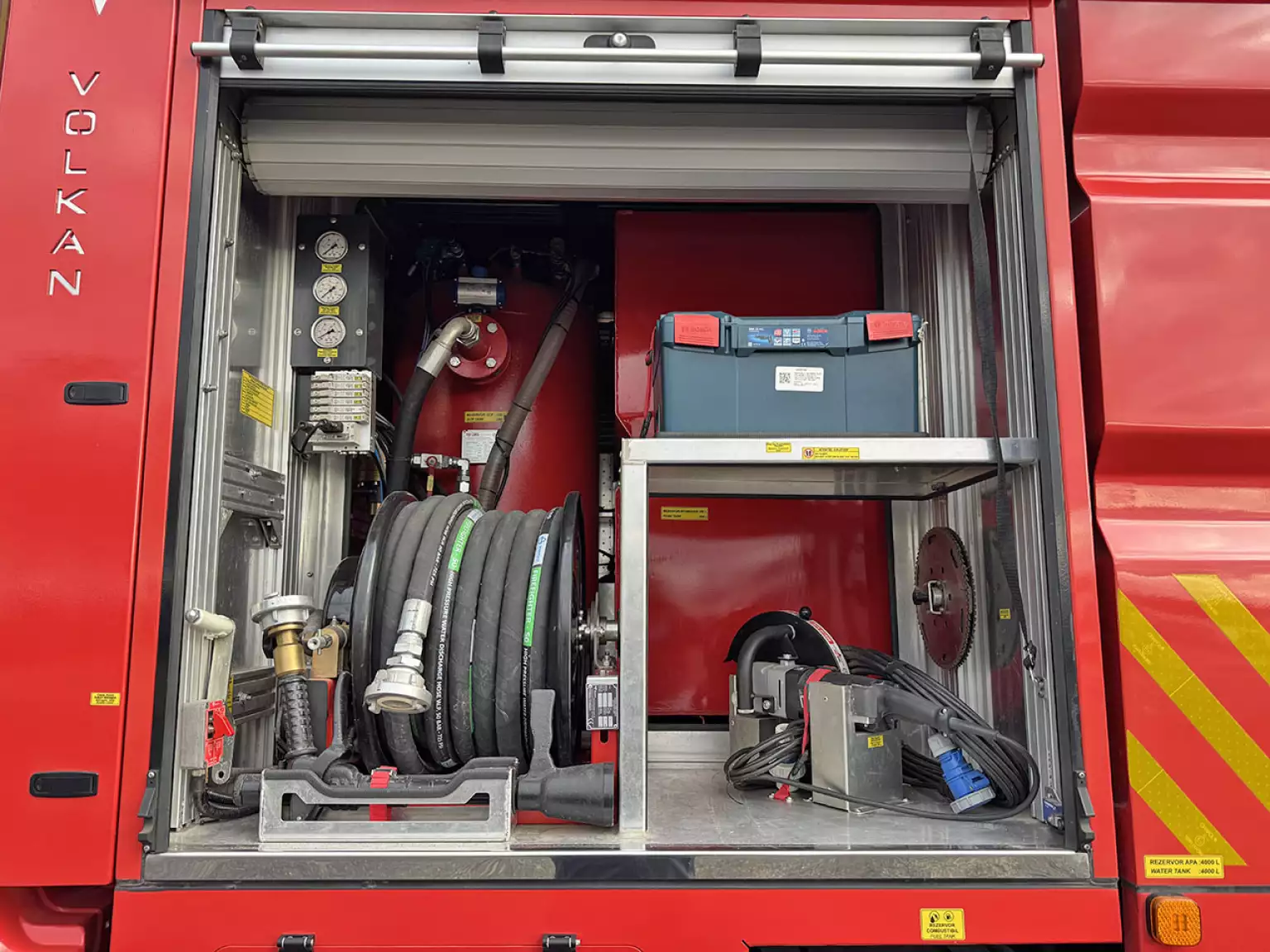

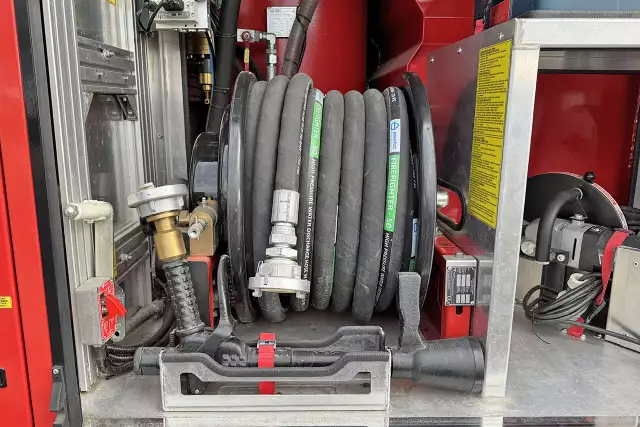

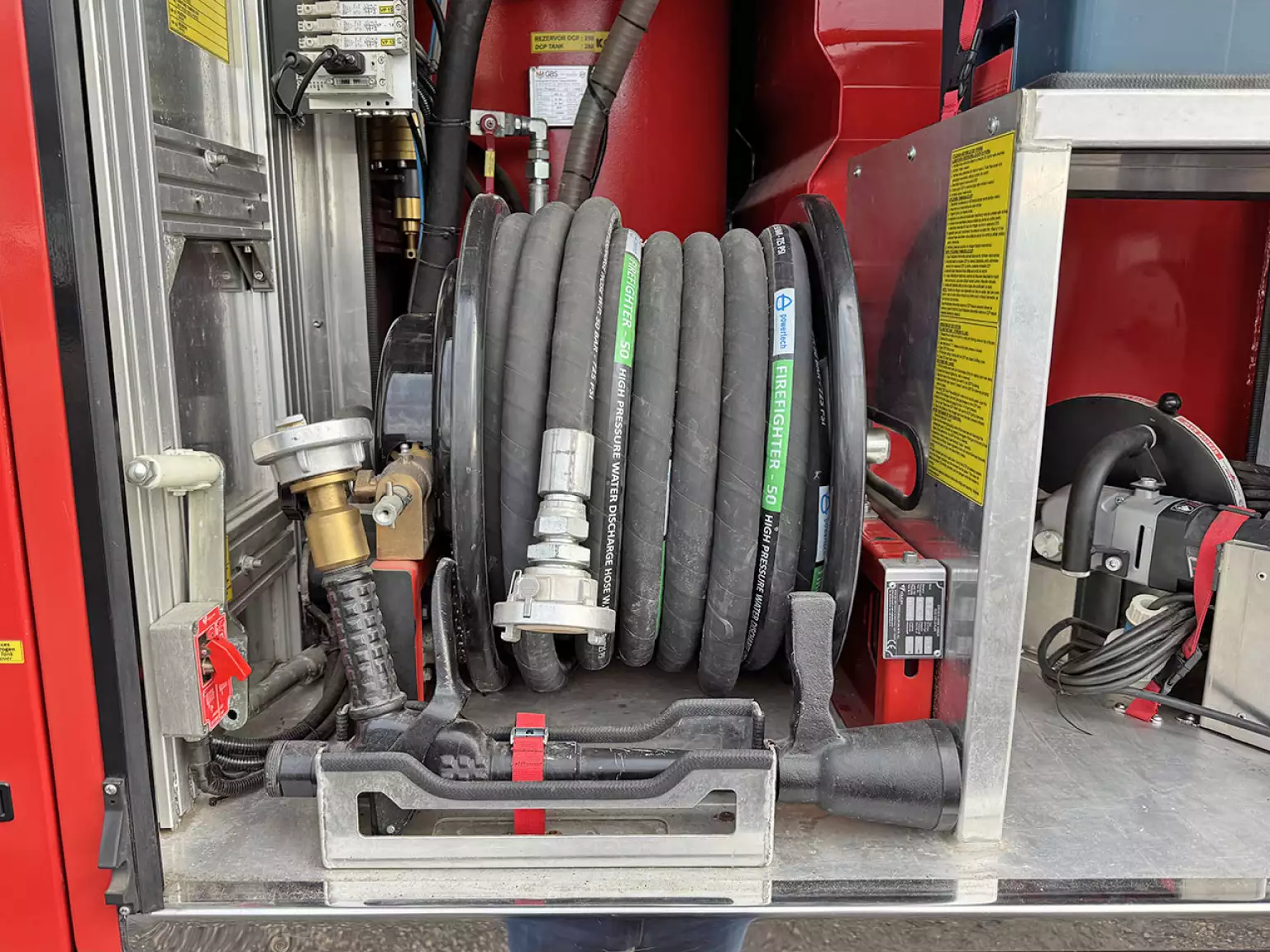

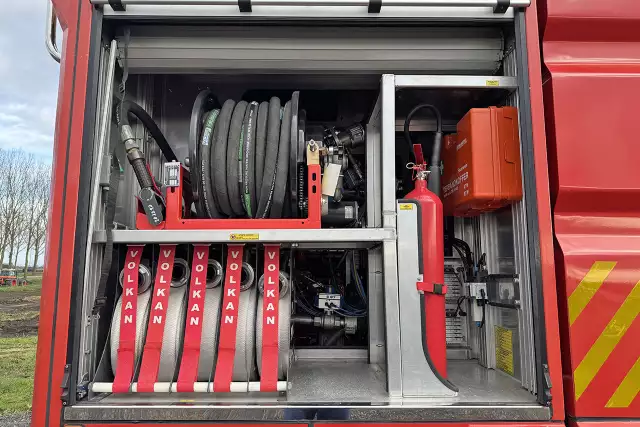

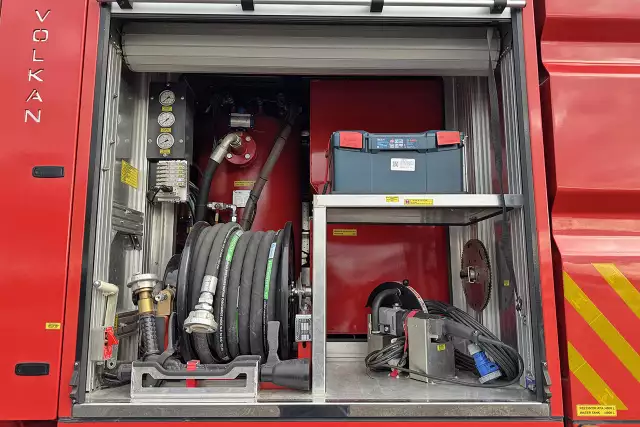

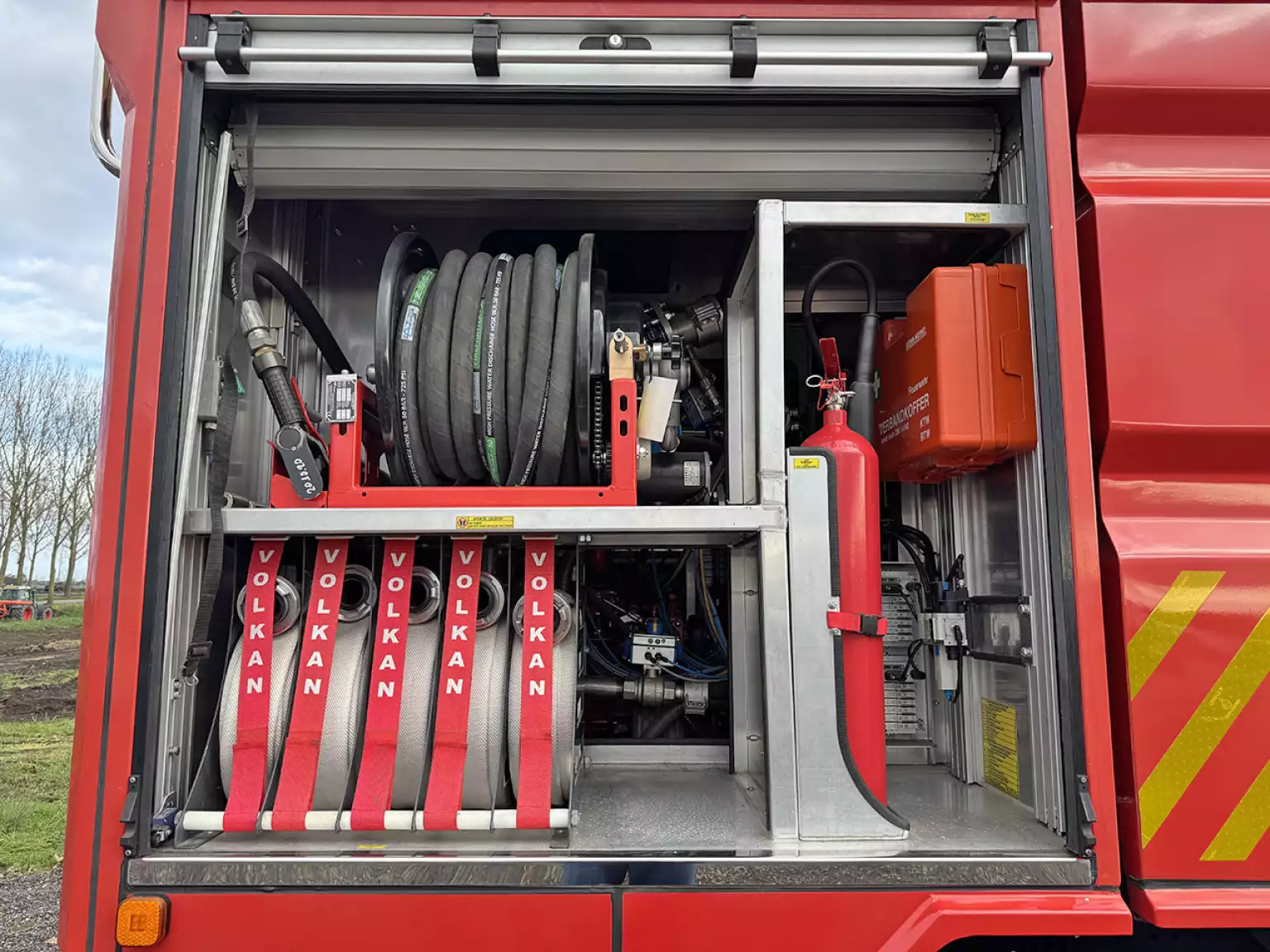

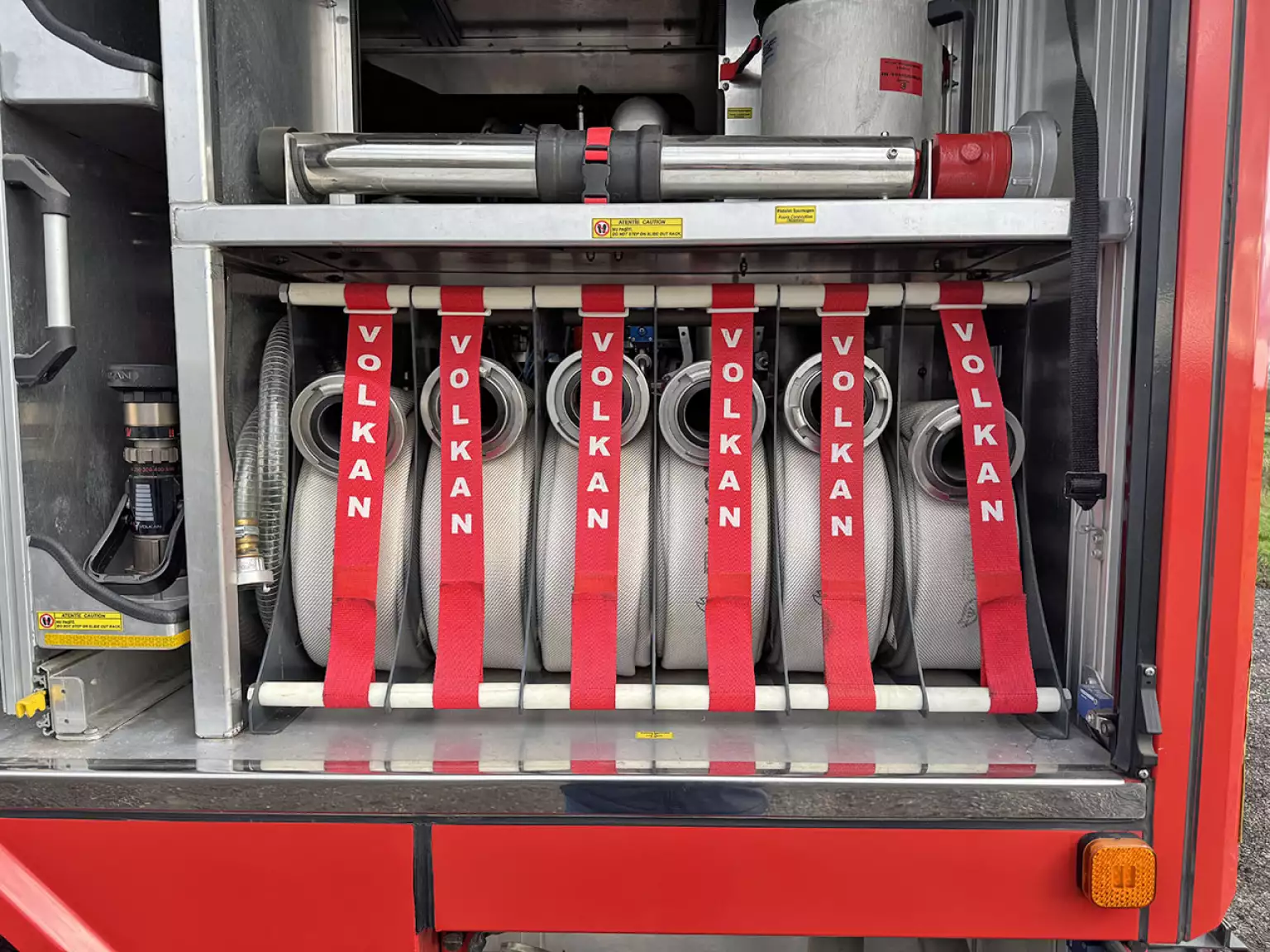

High-pressure hoses are winded on two reels, one on each side of the truck 30 mtr.

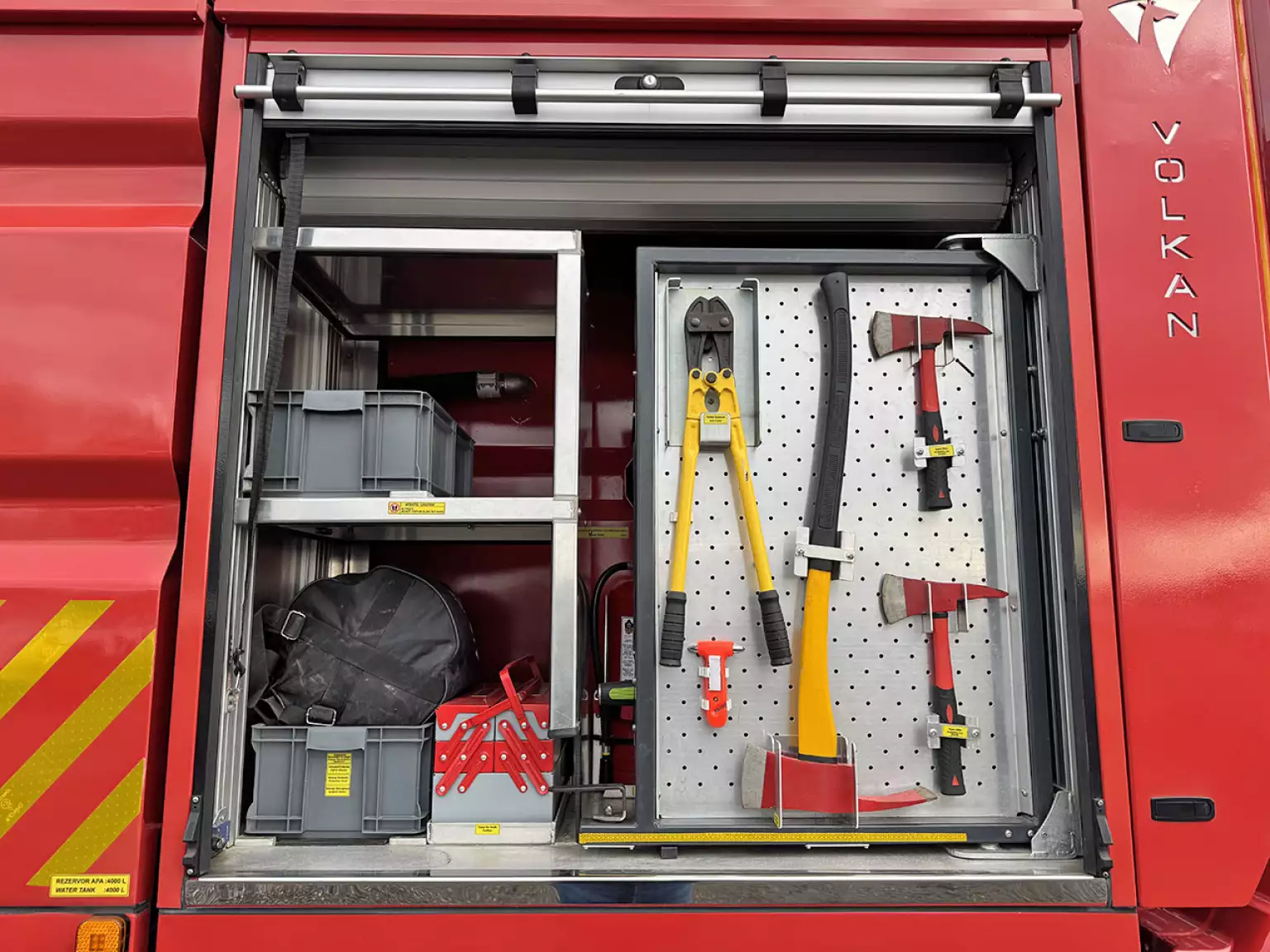

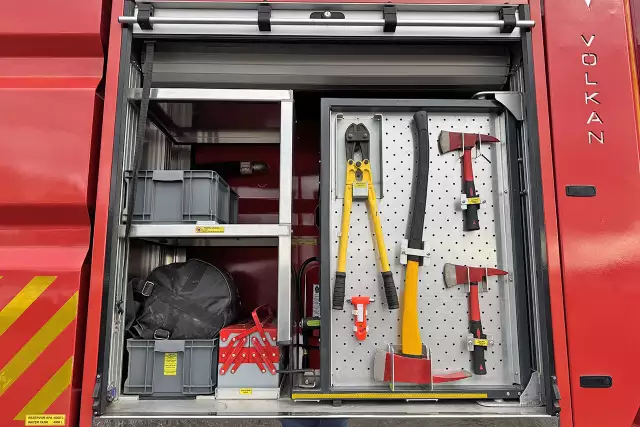

Tools for forcing entry

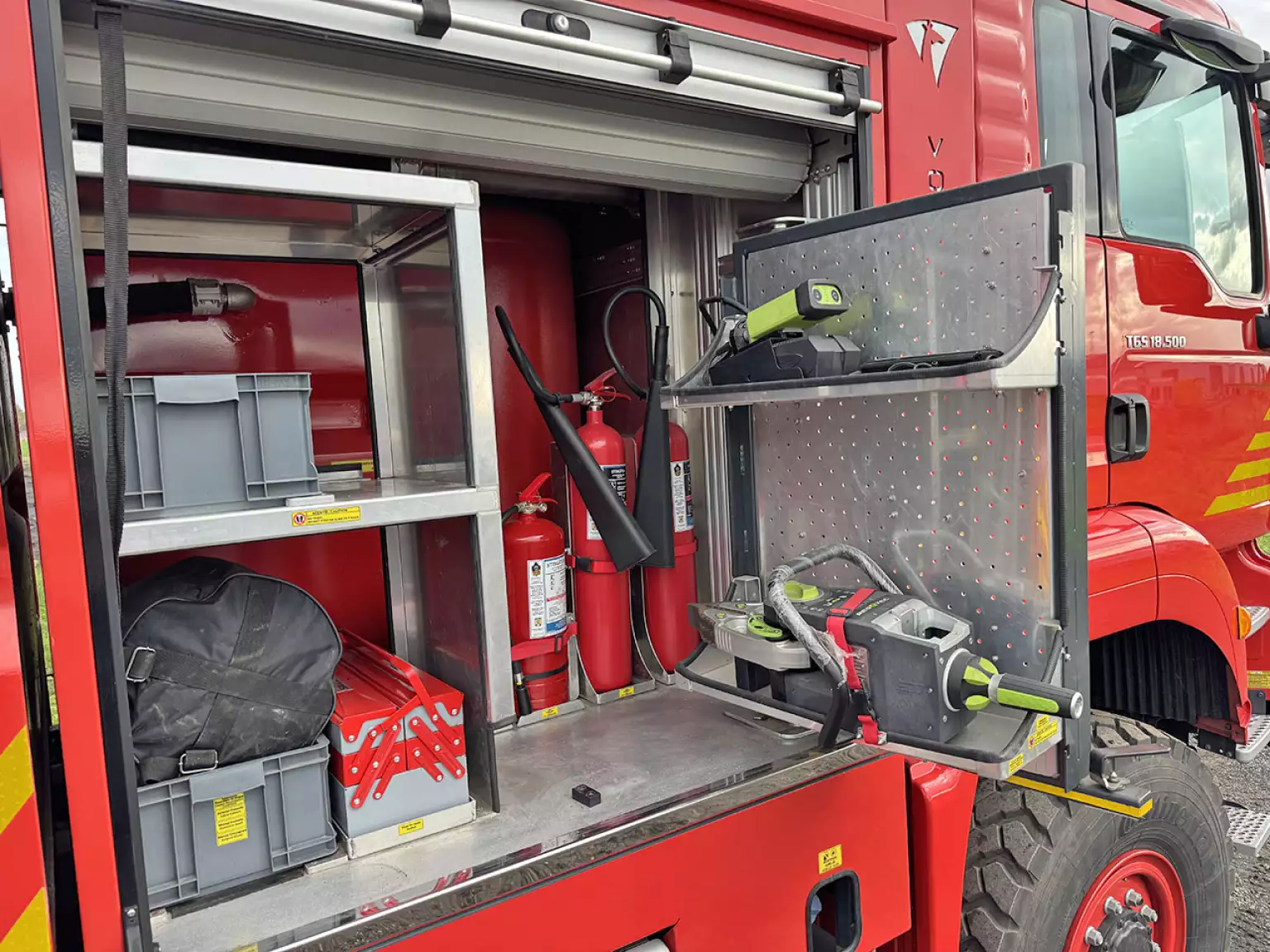

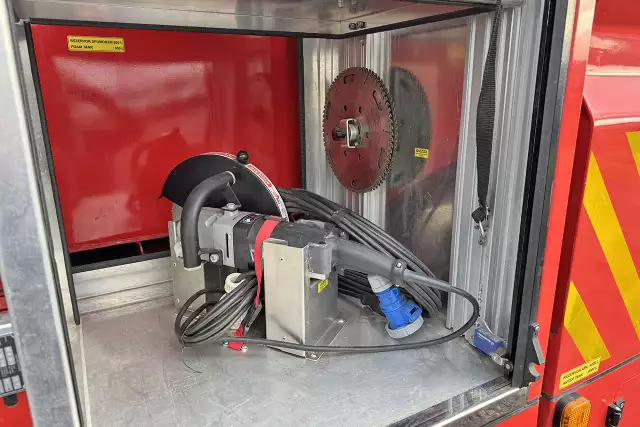

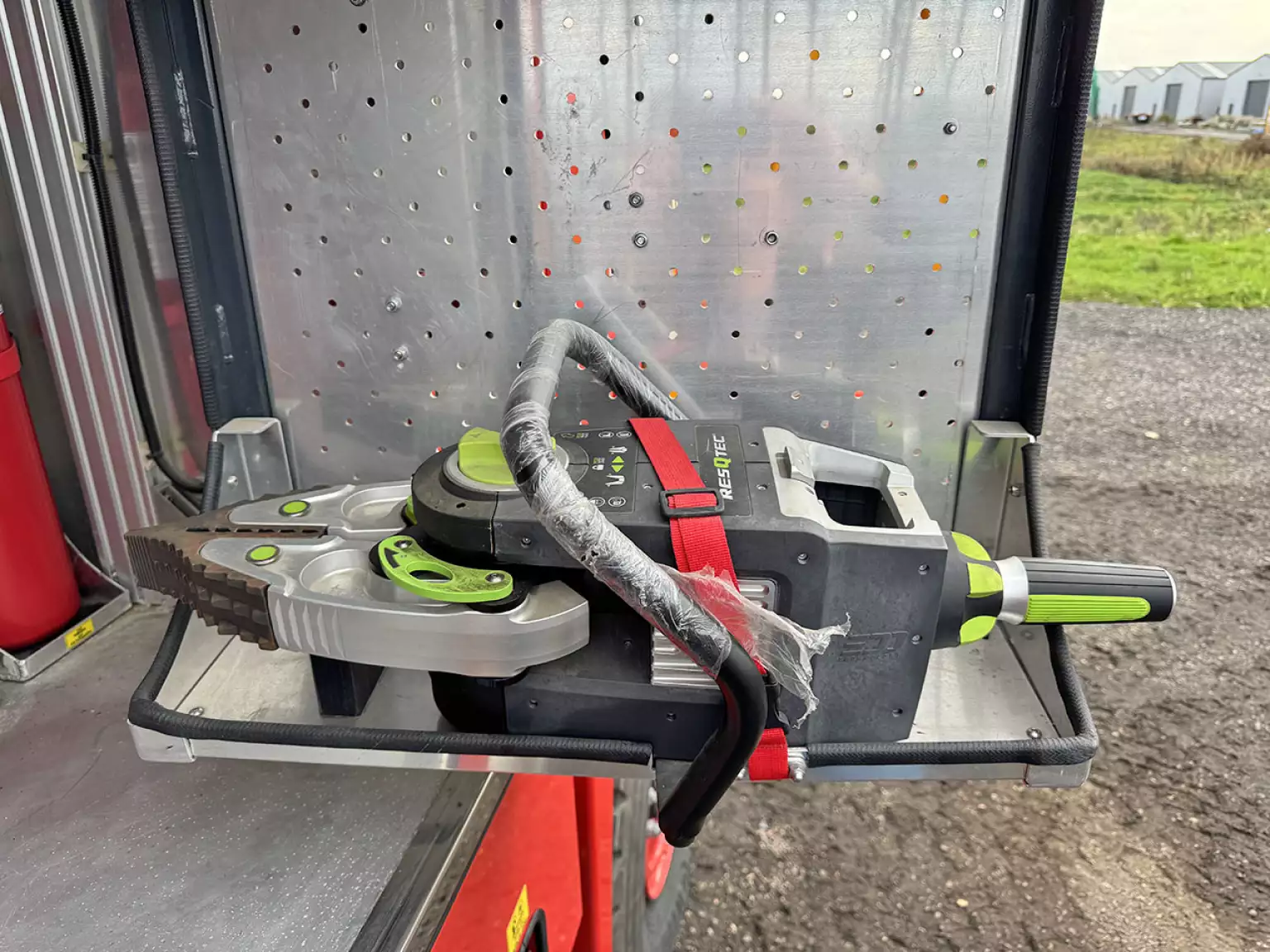

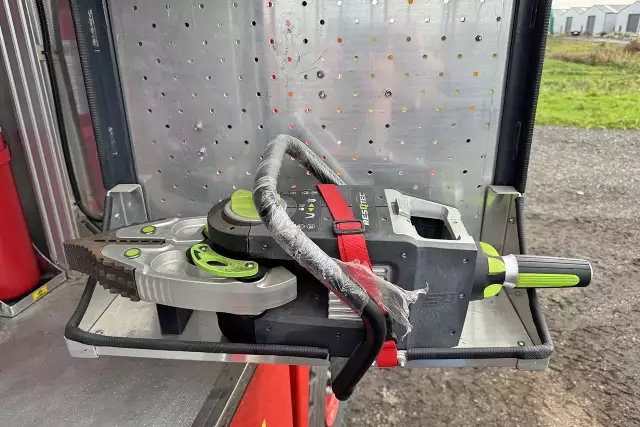

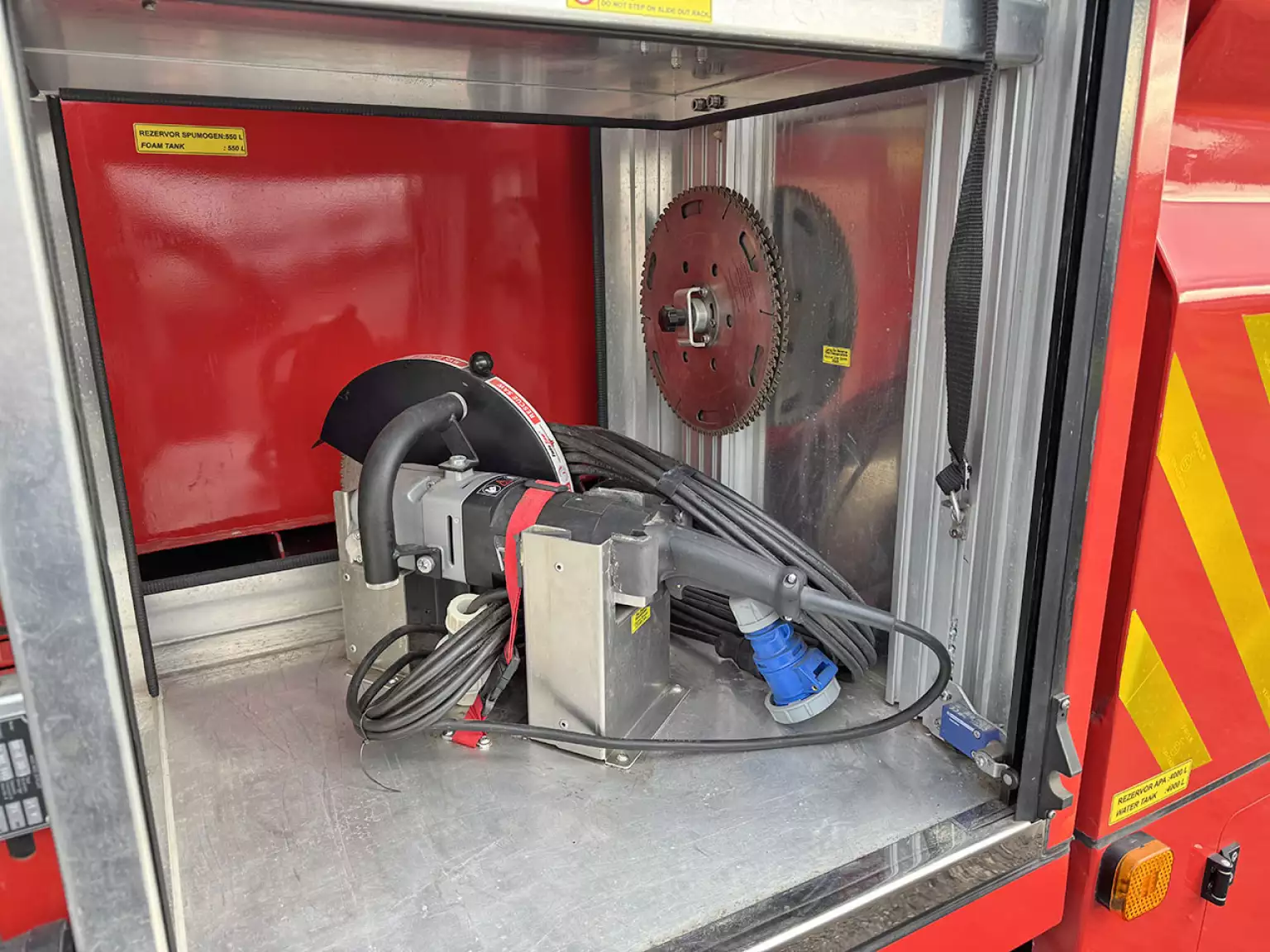

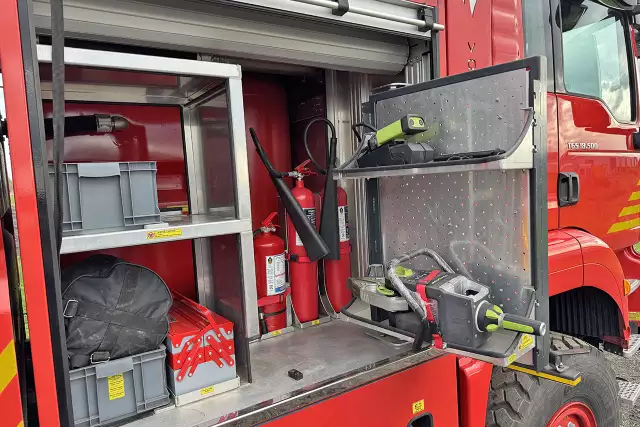

Rescue / cutting equipment including electrical equipment

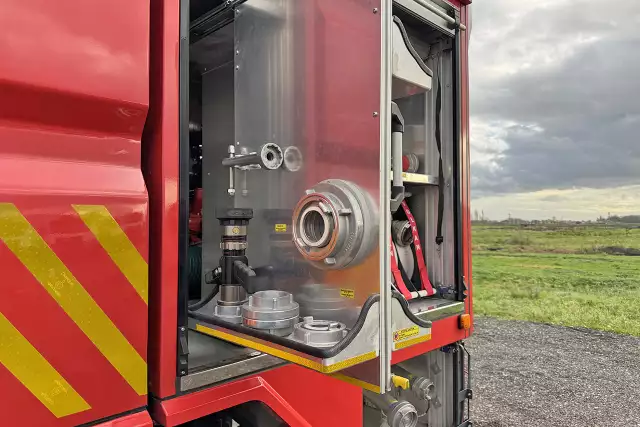

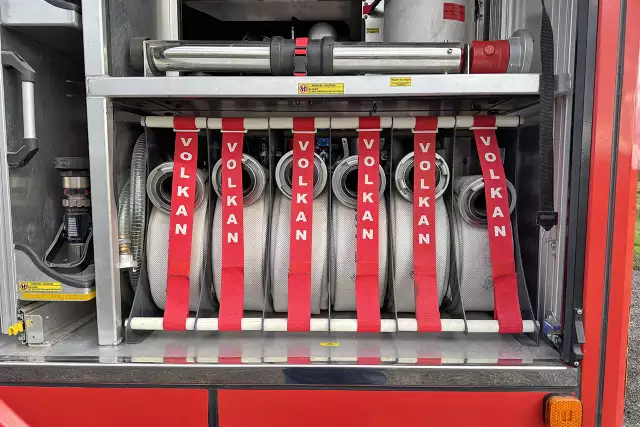

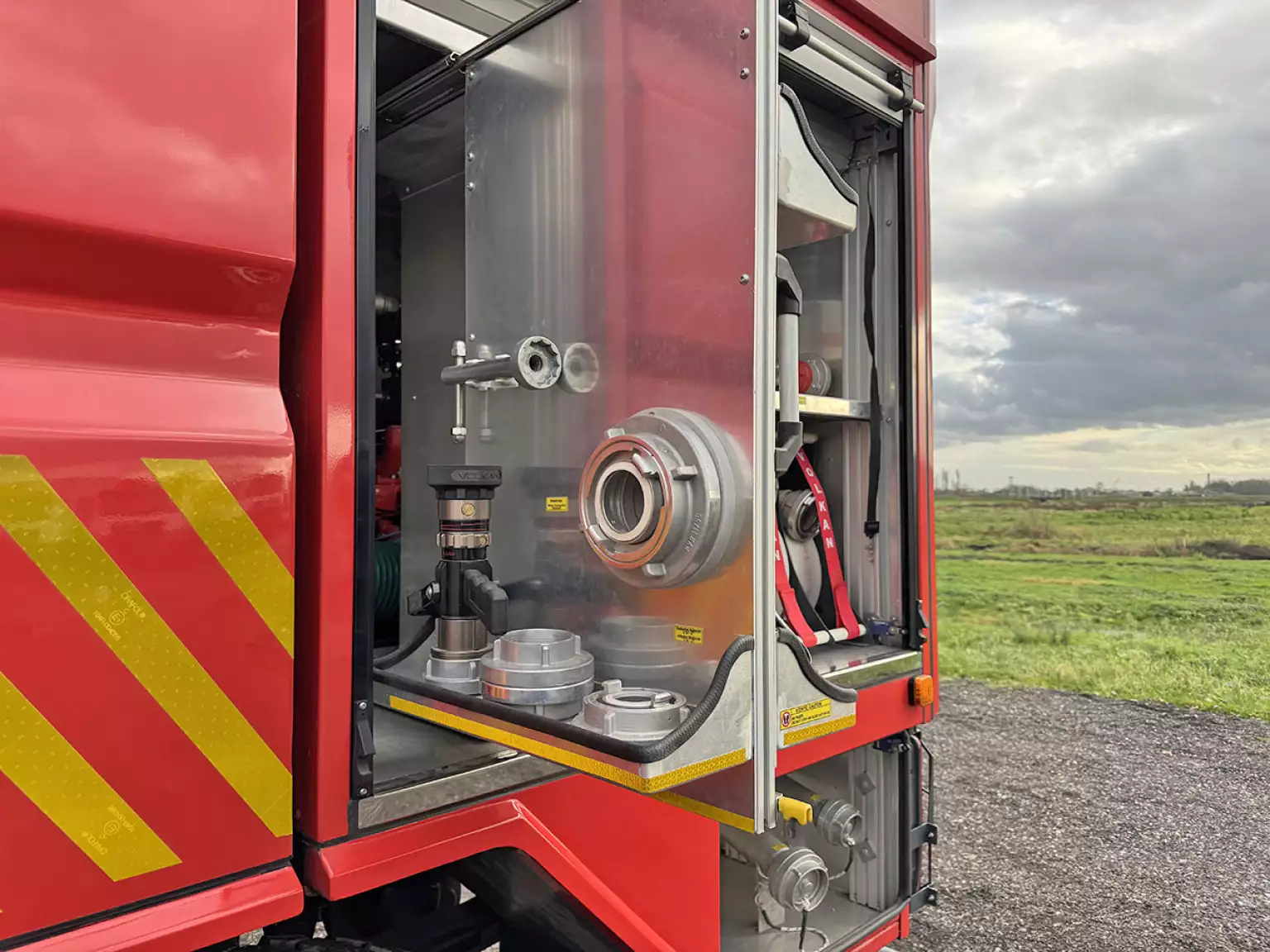

Equipment for delivery of the fire extinguishing agent

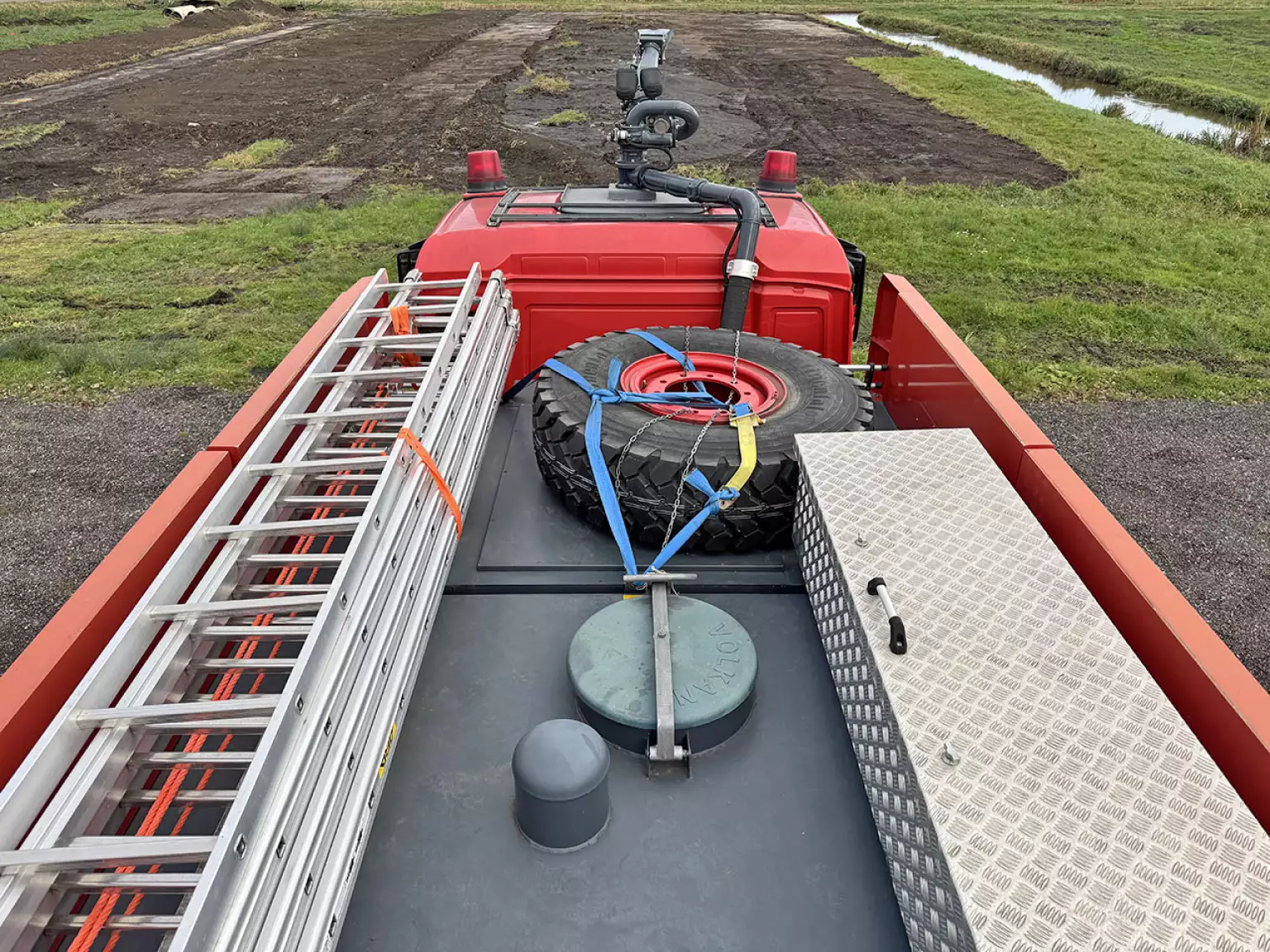

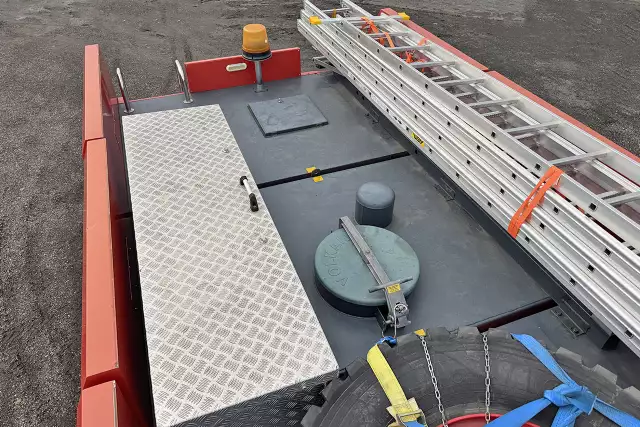

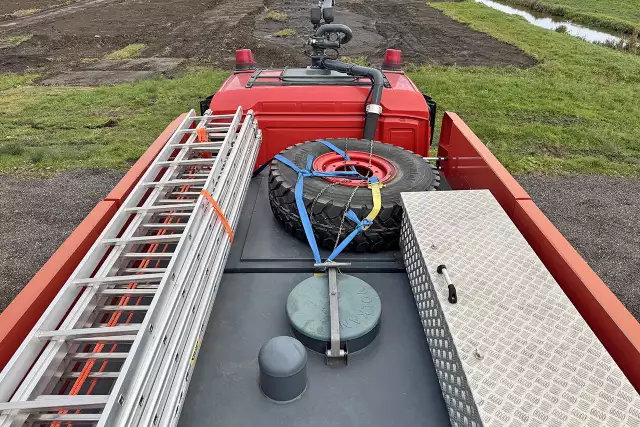

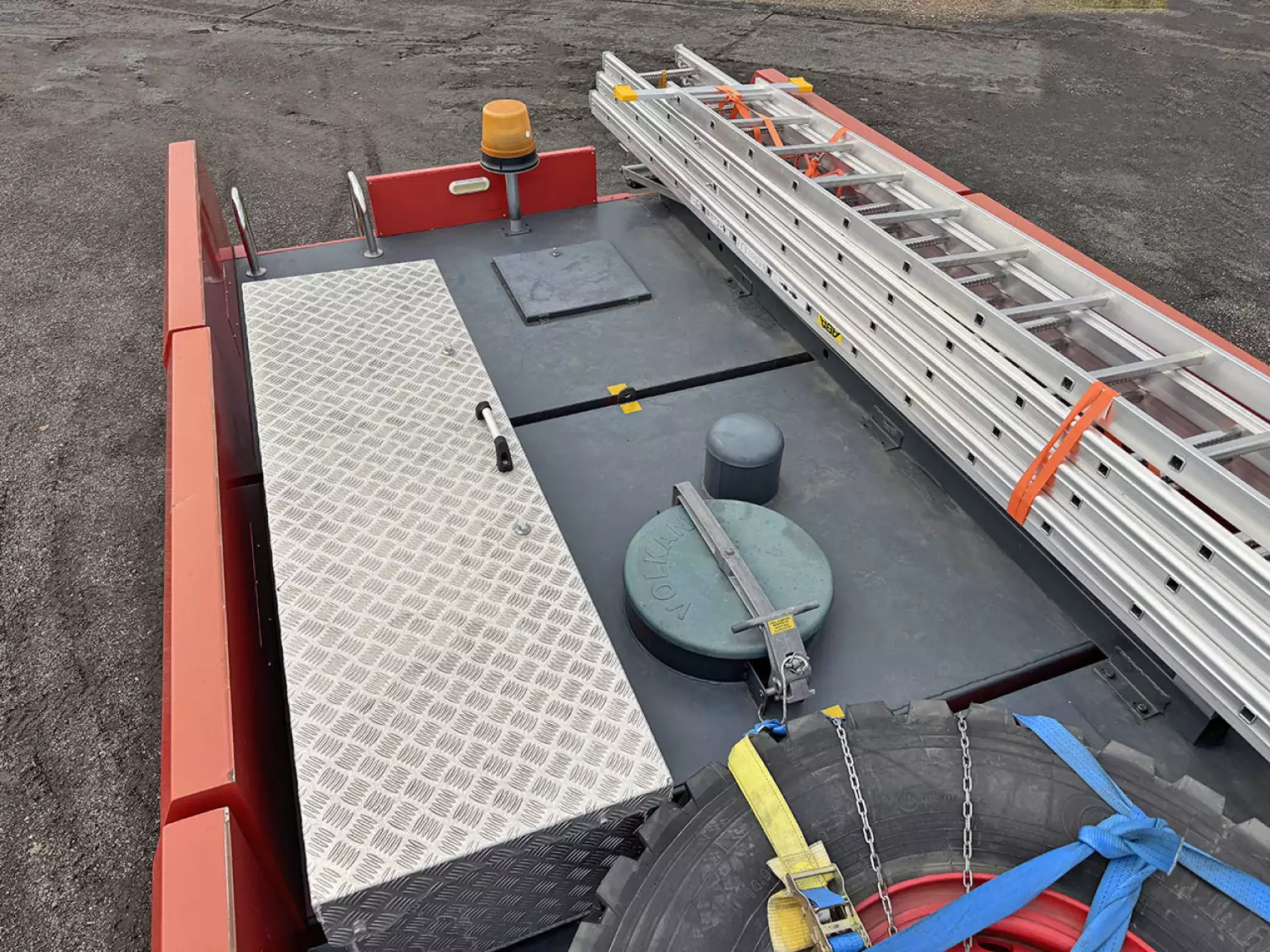

Ladders, extensible rescue and general use.

Complete specification in pdf.
