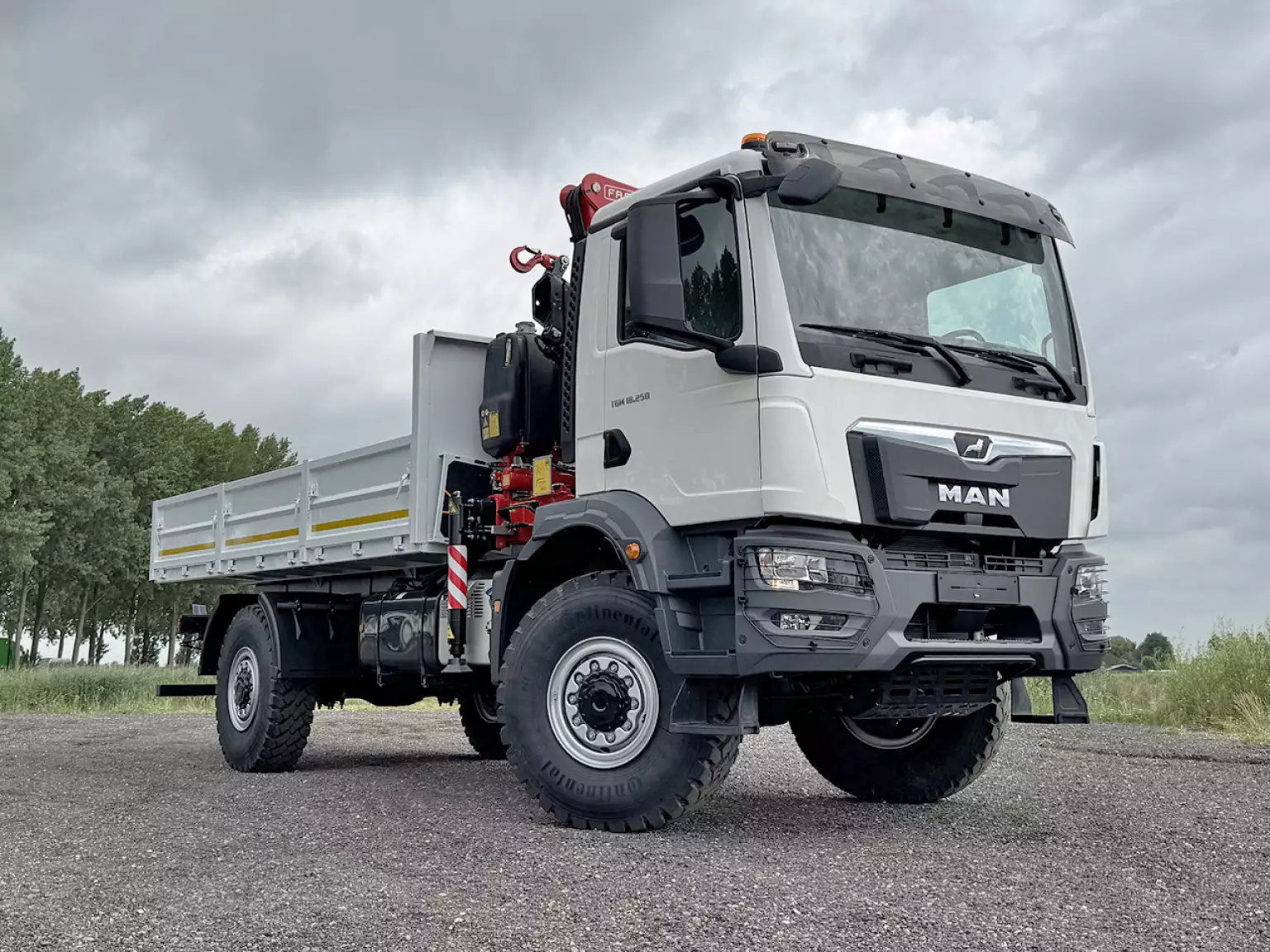

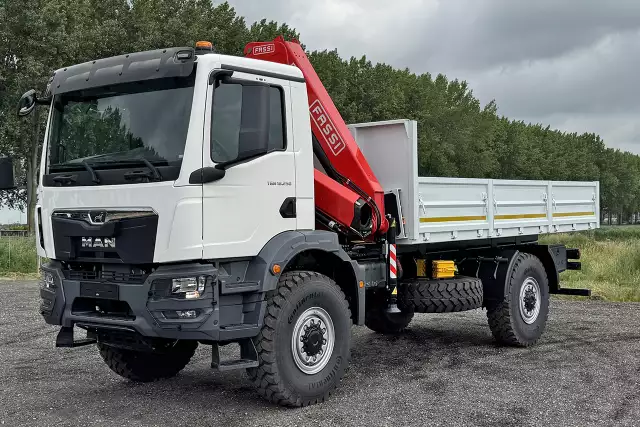

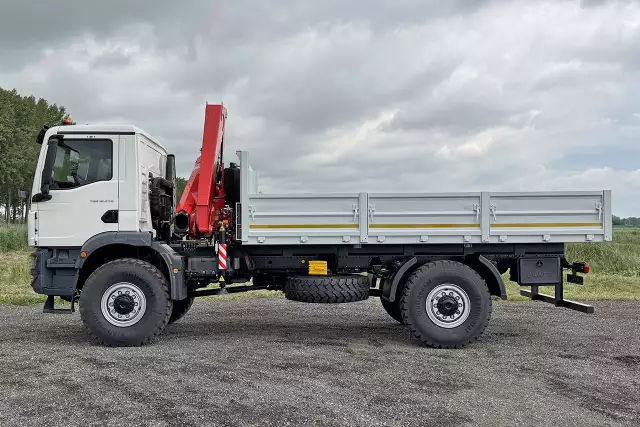

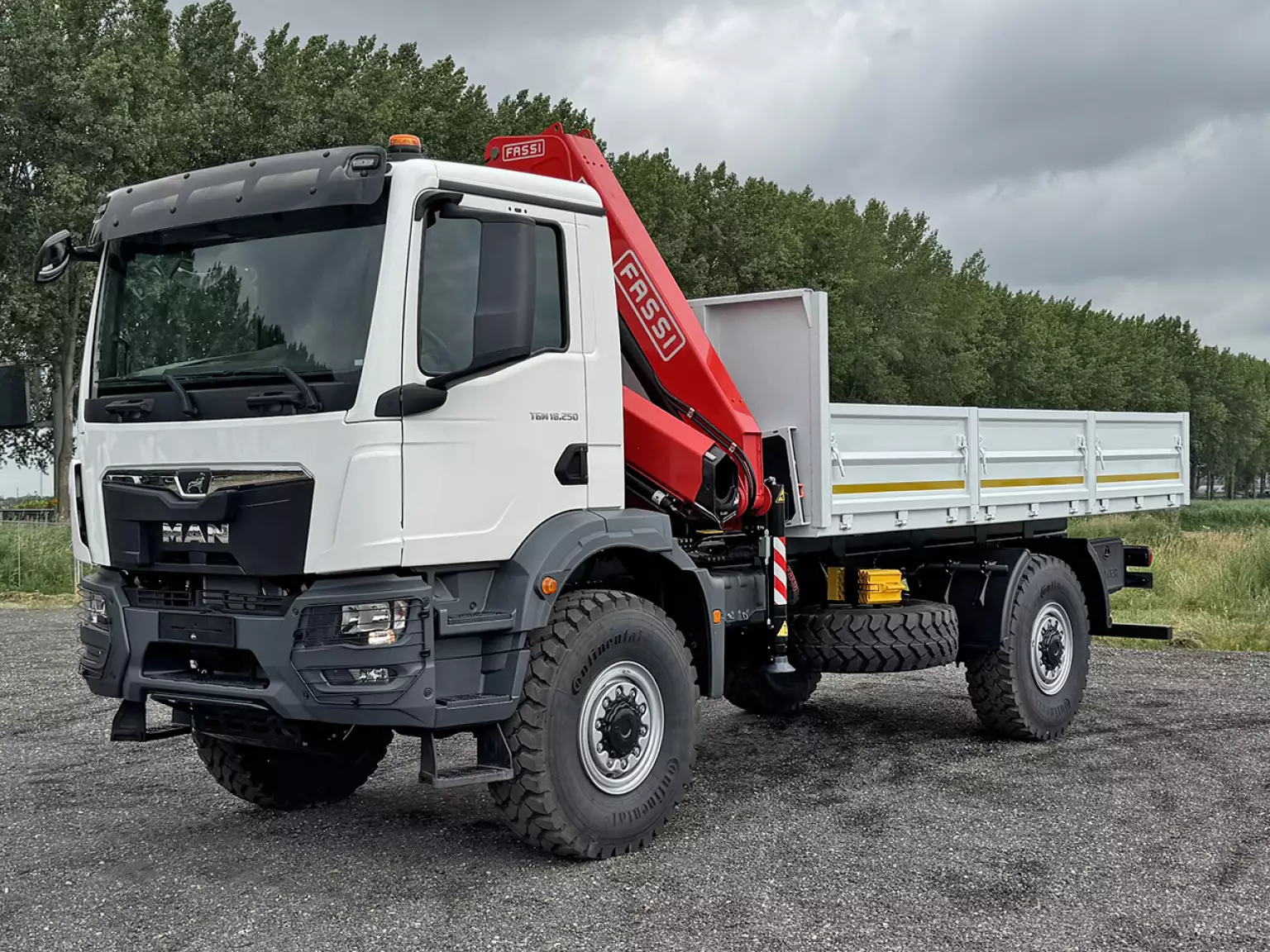

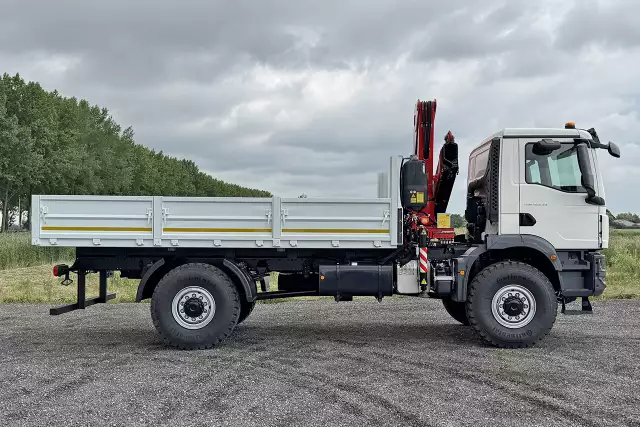

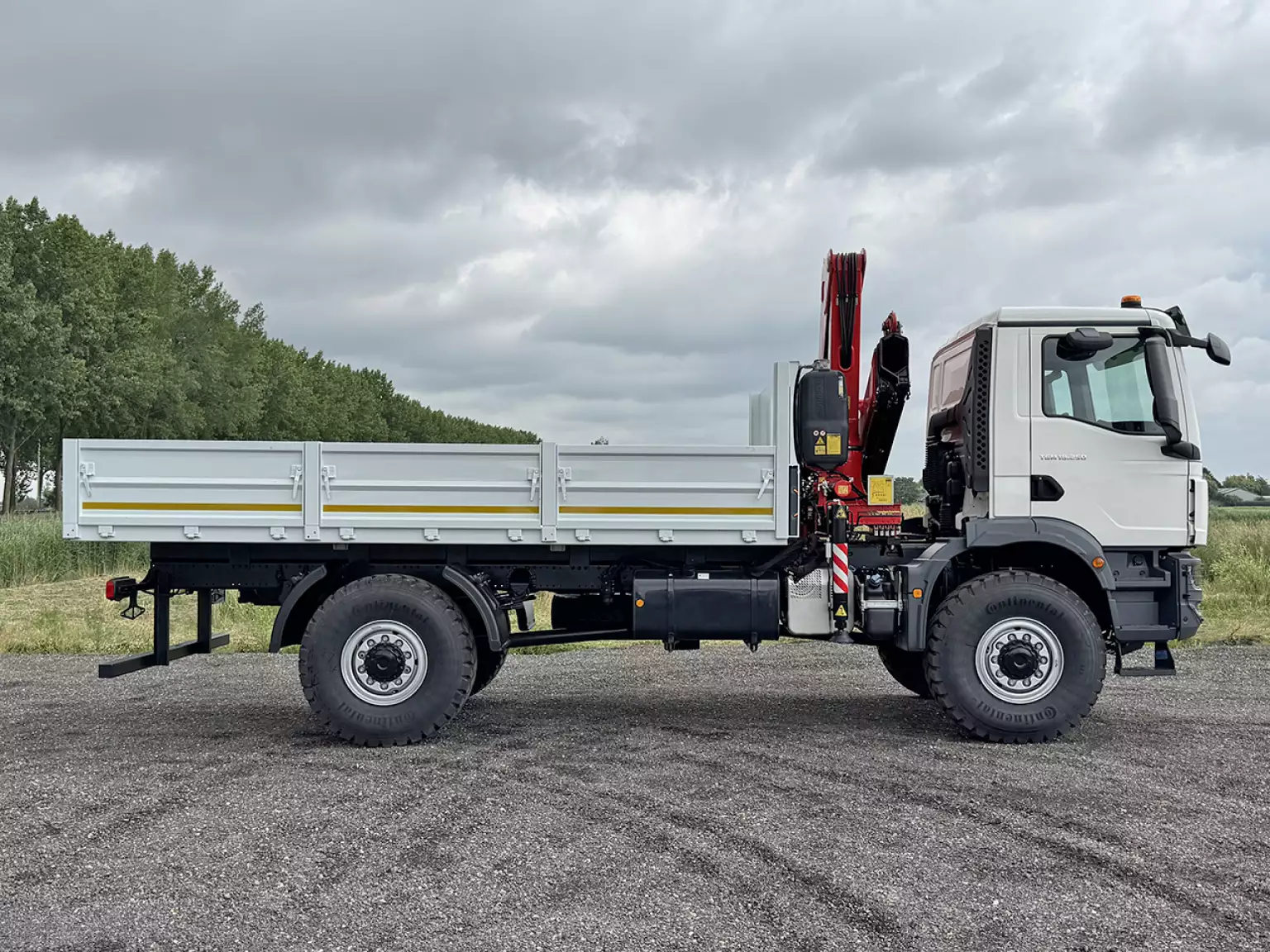

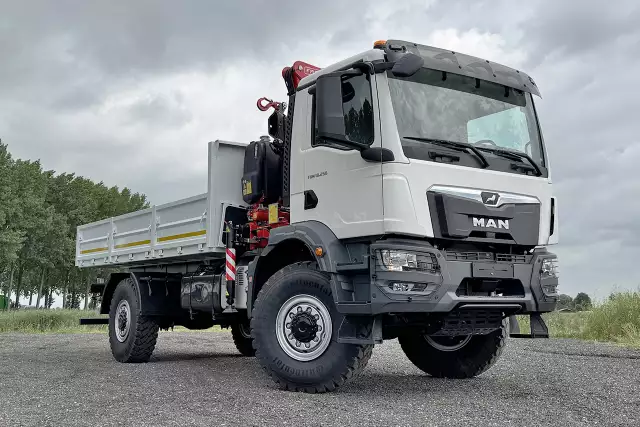

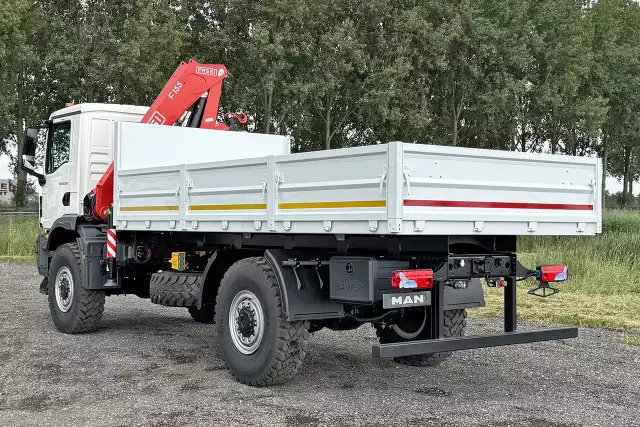

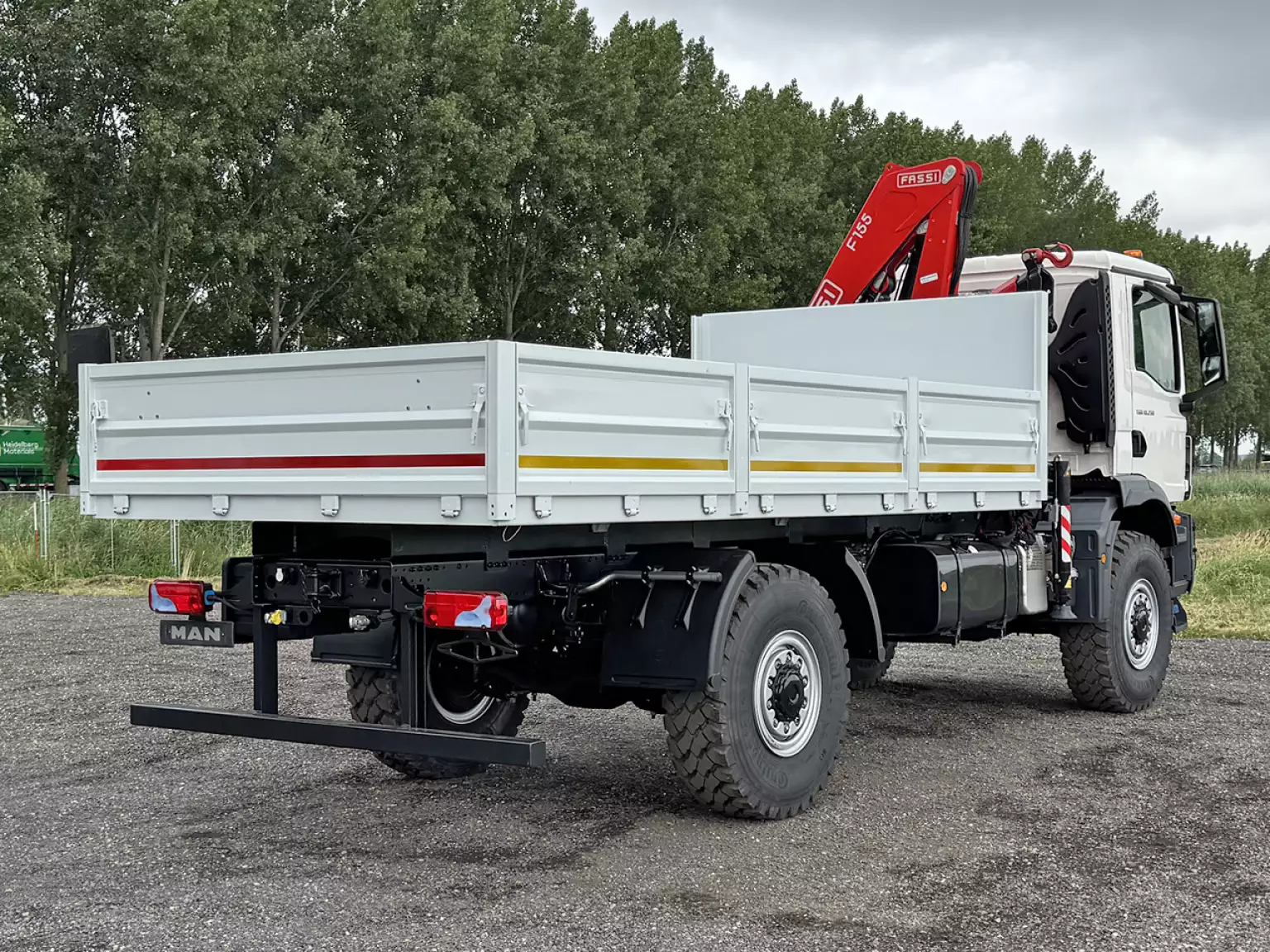

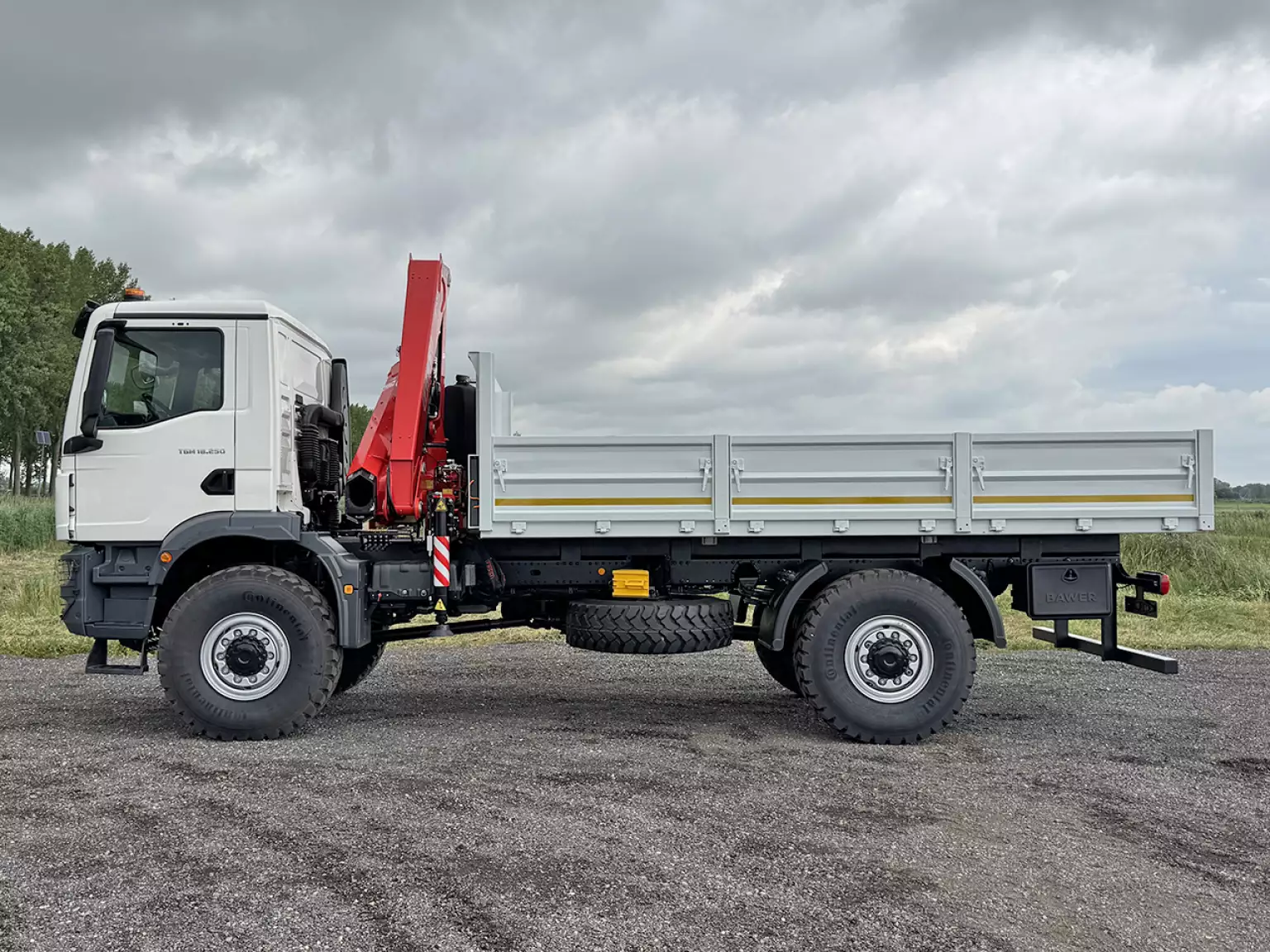

MAN TGM 18.250 BB CH 4x4 Crane Truck

  • New/unused
  • Left hand drive
  • Automatic
  • Fassi
Web-ID: VMA5258
Availability:
2
Condition:
New/unused
Axle configuration:
4x4
Engine:
250hp/184kW
Emission:
EURO-4
Transmission:
Automatic
Price:
€ 135.000

Net unit price, EXW Nieuwerkerk aan den IJssel (NL), without VAT, subject to availability/prior sale.

Vehicle overview

Category:
Crane Trucks
Brand:
MAN
Type:
TGM 18.250 BB CH
Axle configuration:
4x4
Construction make
Fassi

Technical Specifications

Stock number VMA5258
Engine power 250hp/184kW
Emission EURO-4
Fuel Diesel
Engine type D0836LFL95
Cylinder capacity 6.871 cc
Cylinders 6
Transmission Automatic
PTO PTO Prepared
Gearbox TipMatic 12.12OD
Suspension Spring

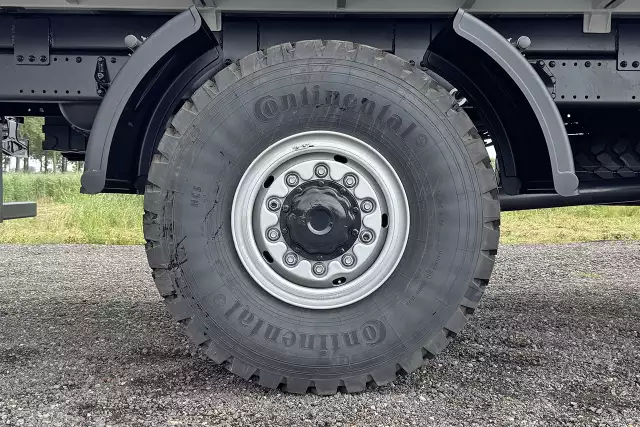

Tyres 14.00R20
Wheelbase 4.500 mm

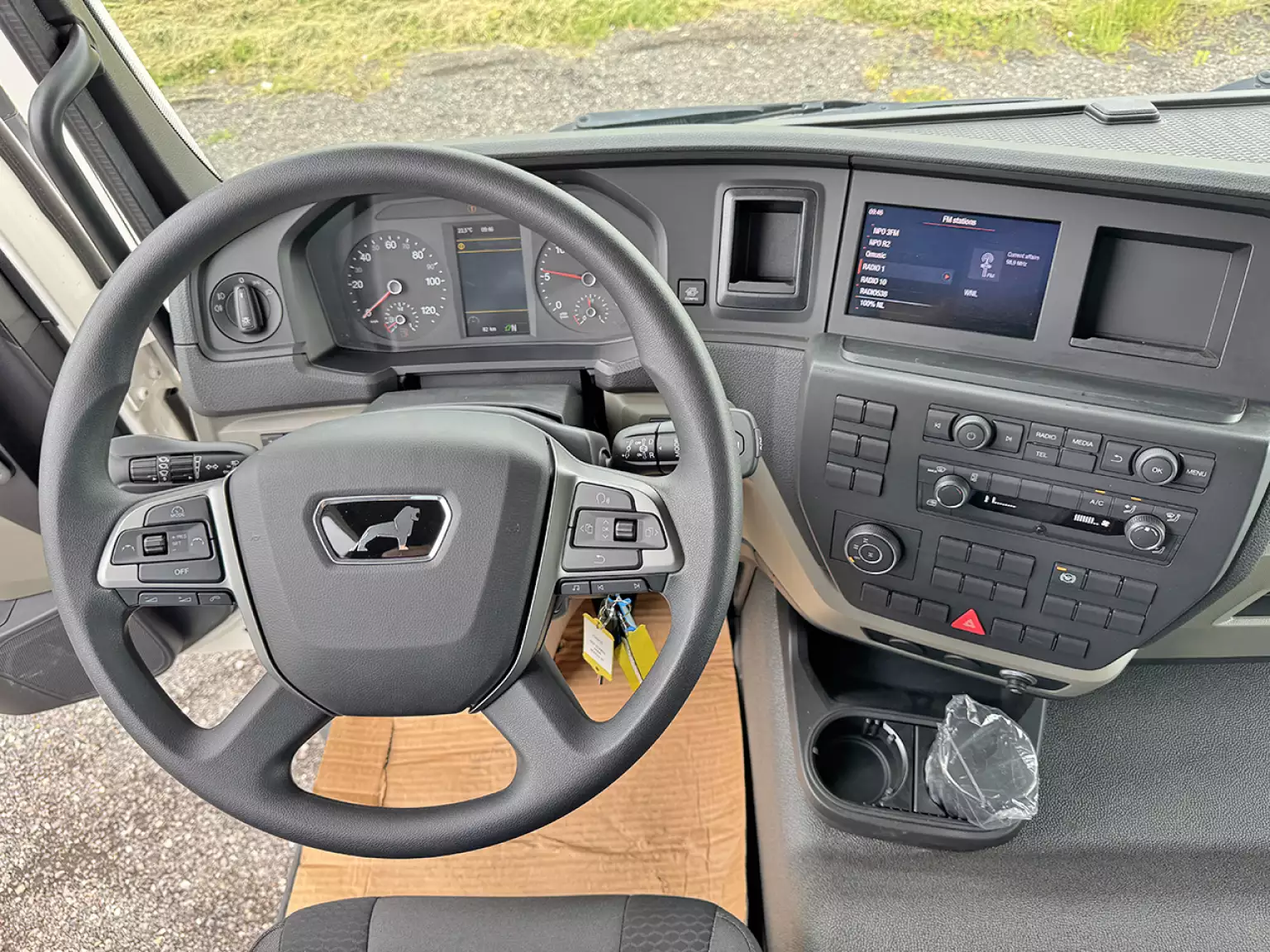

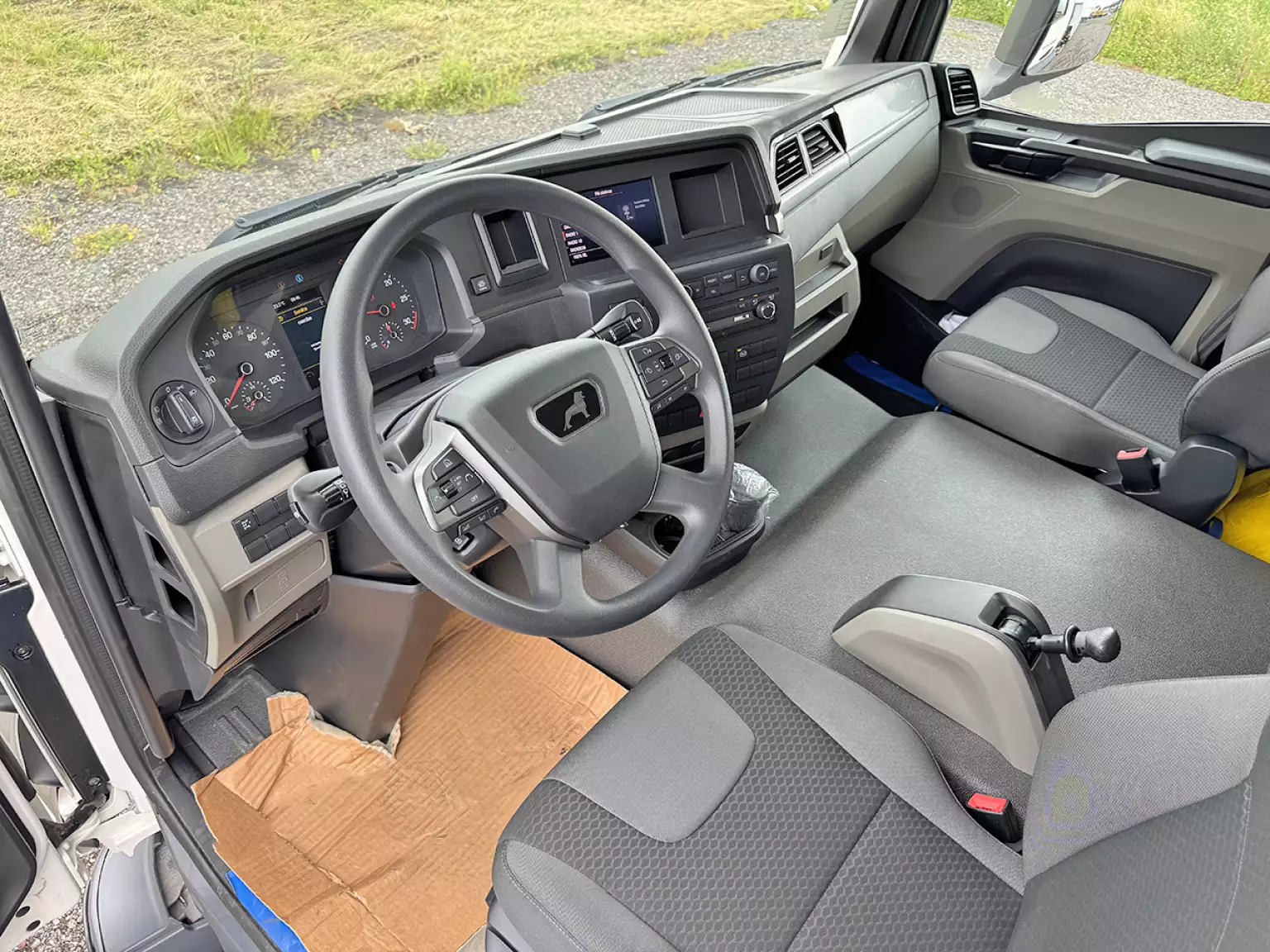

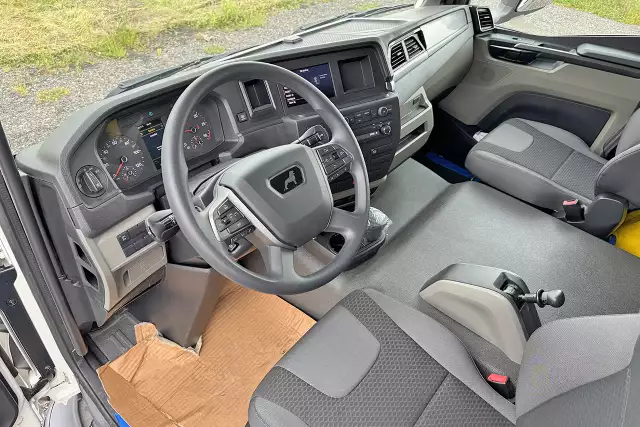

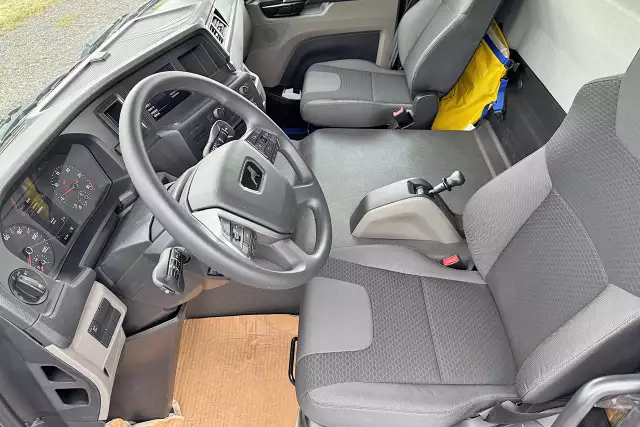

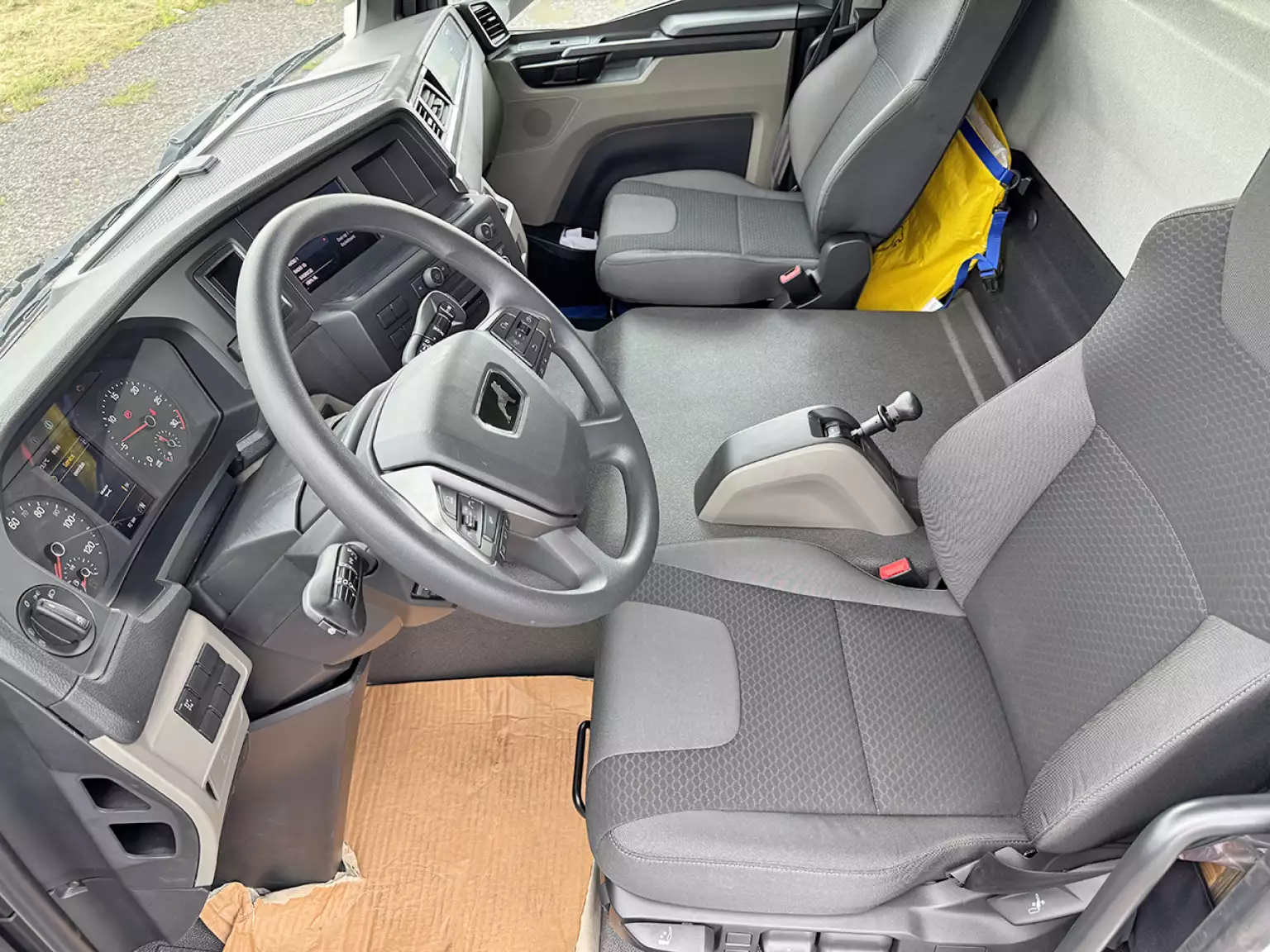

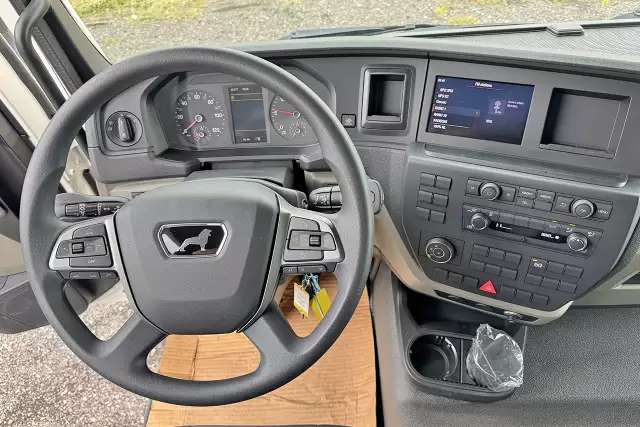

Cabin Day
Total weight GVW 18.000 kg
Model year 2023
Production year 2023
Remarks Fuel tank: 300 ltr.
Air conditioning

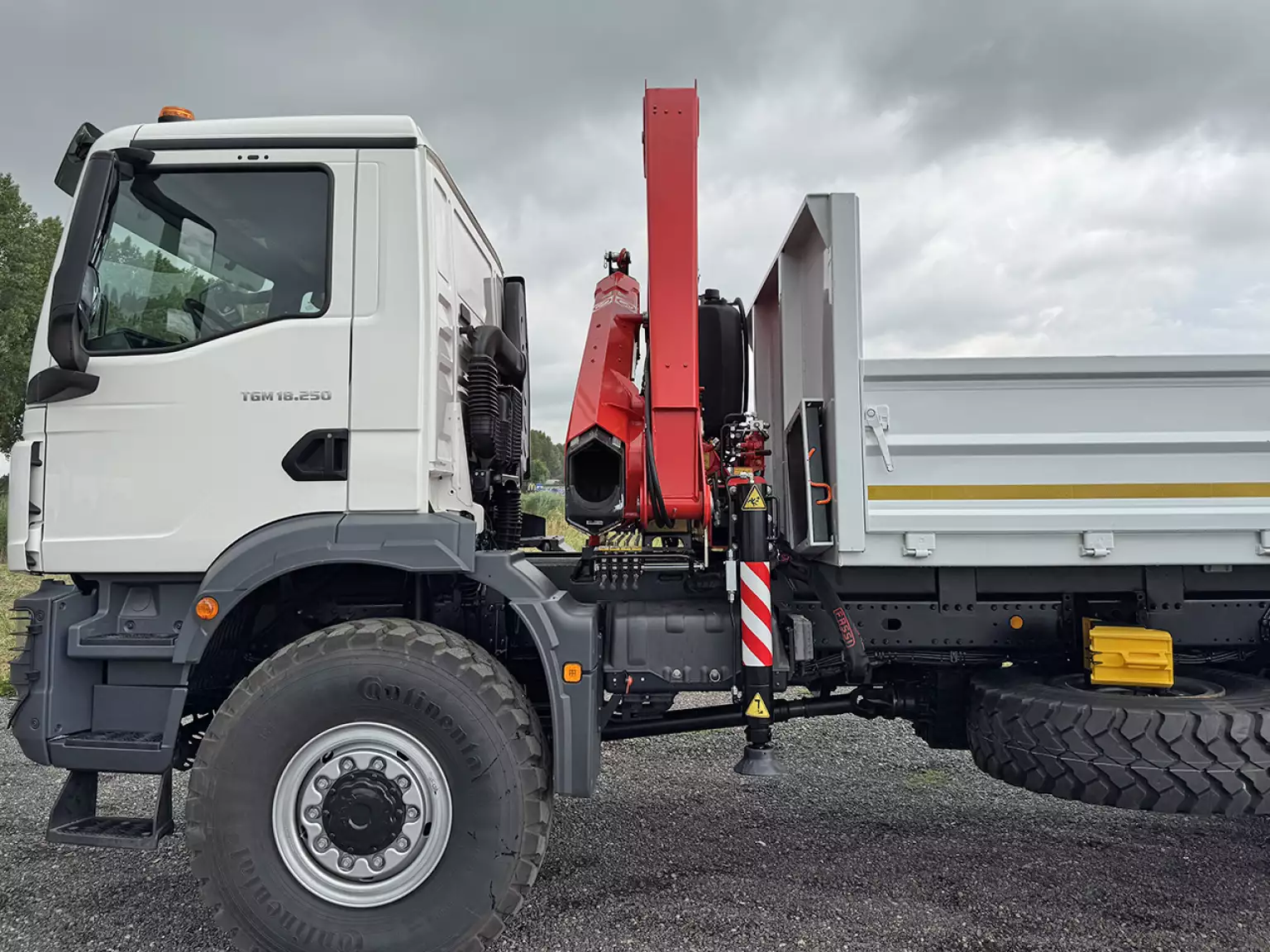

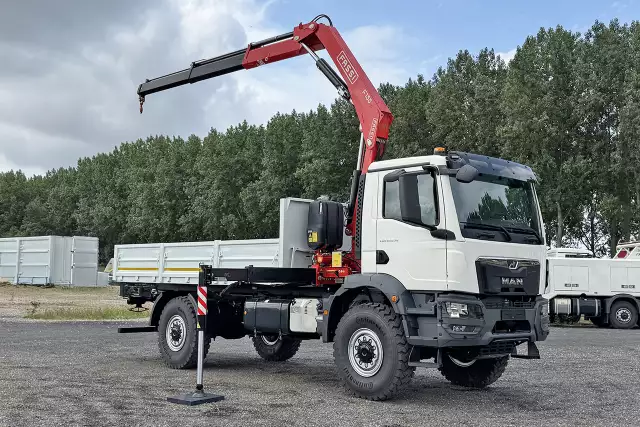

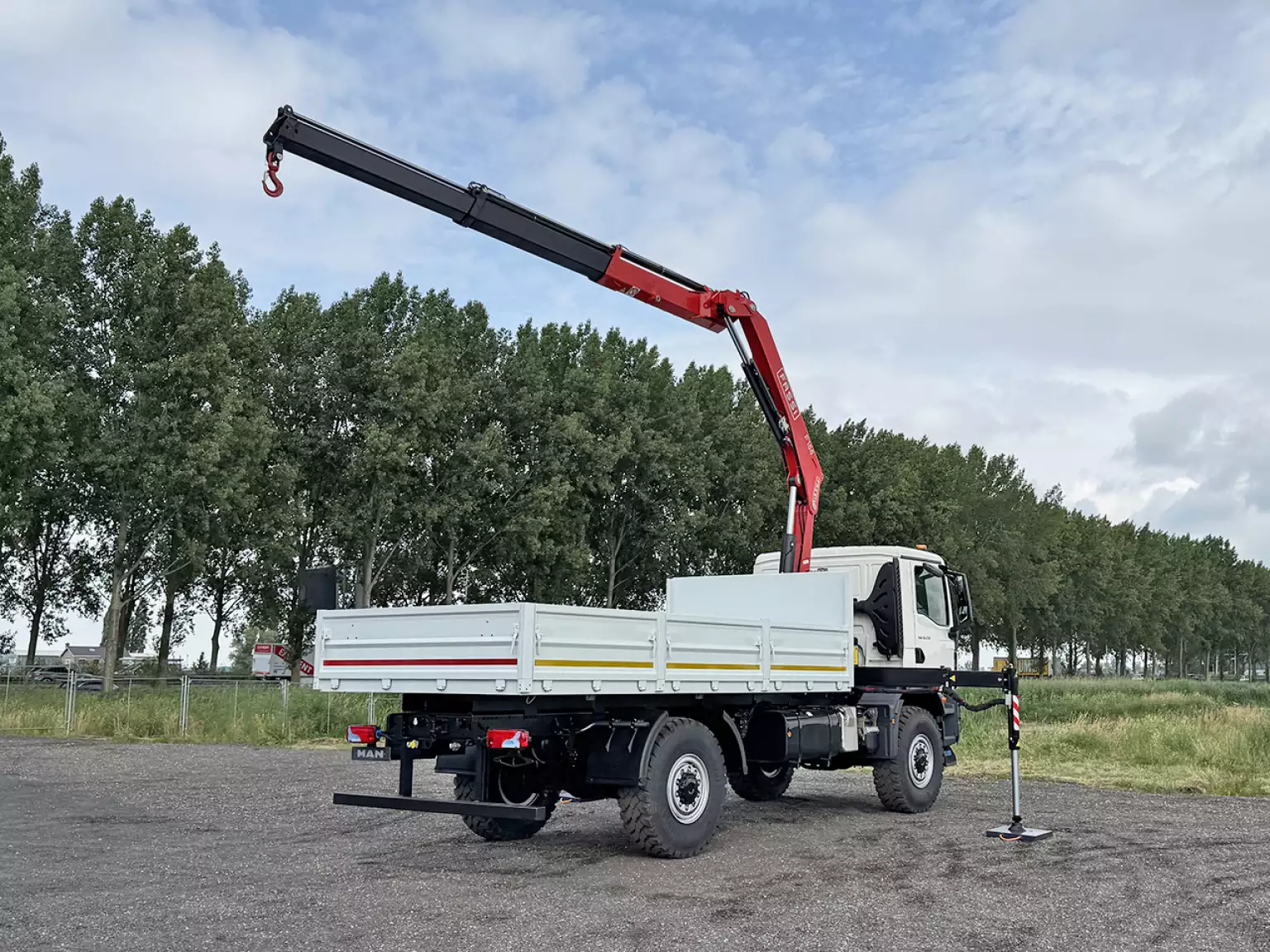

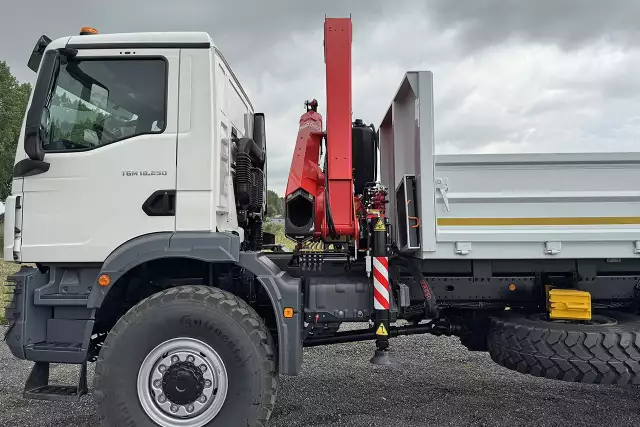

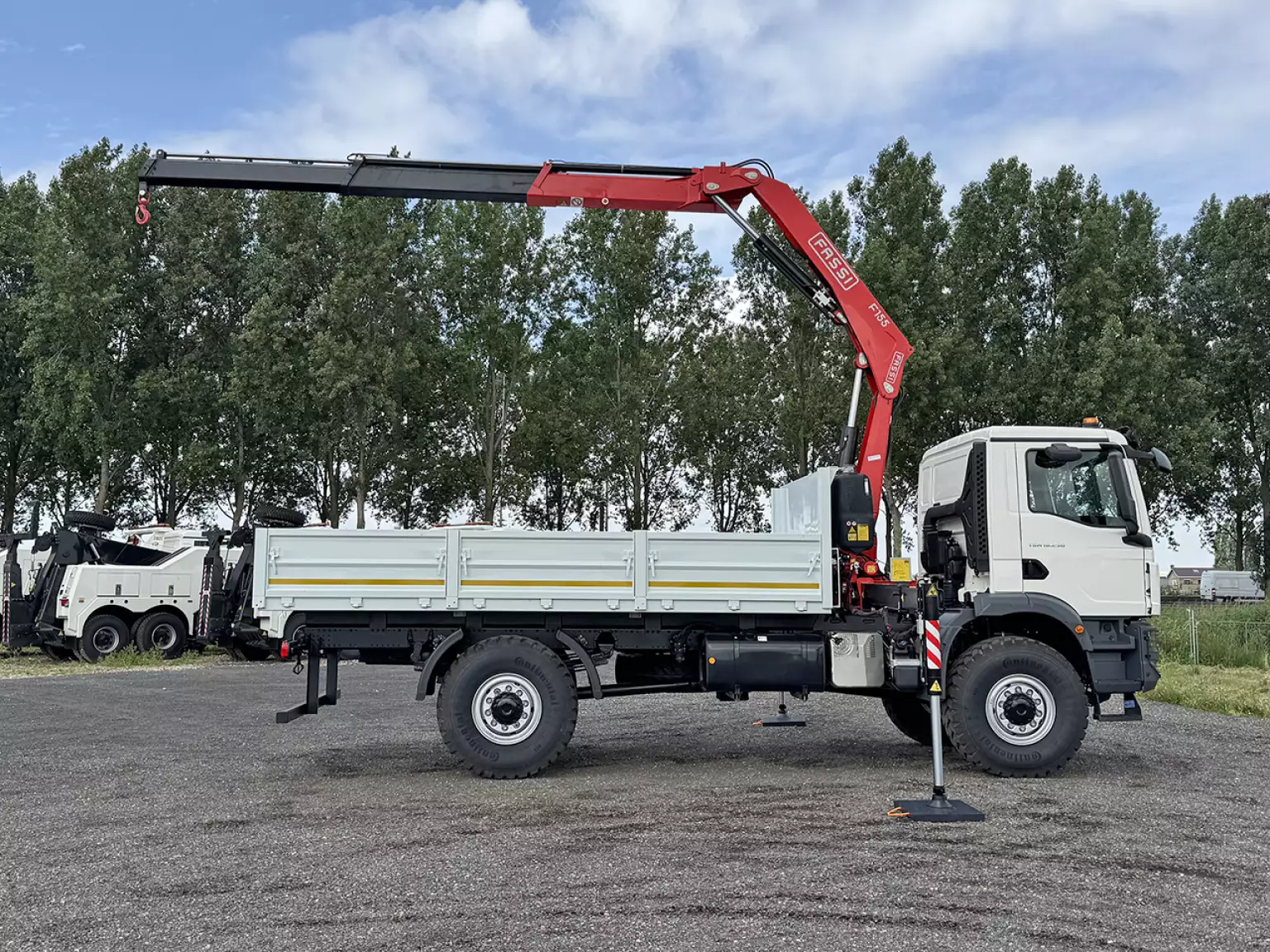

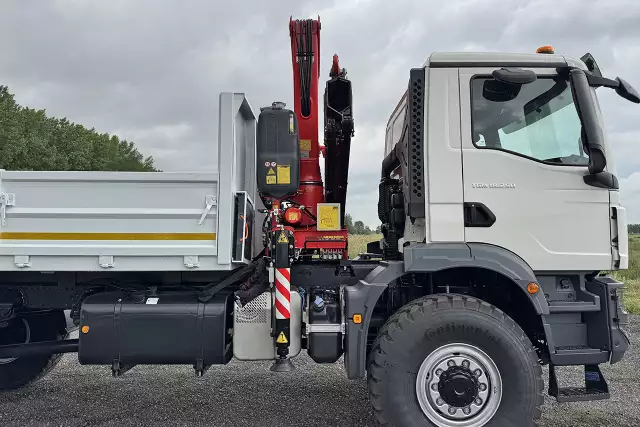

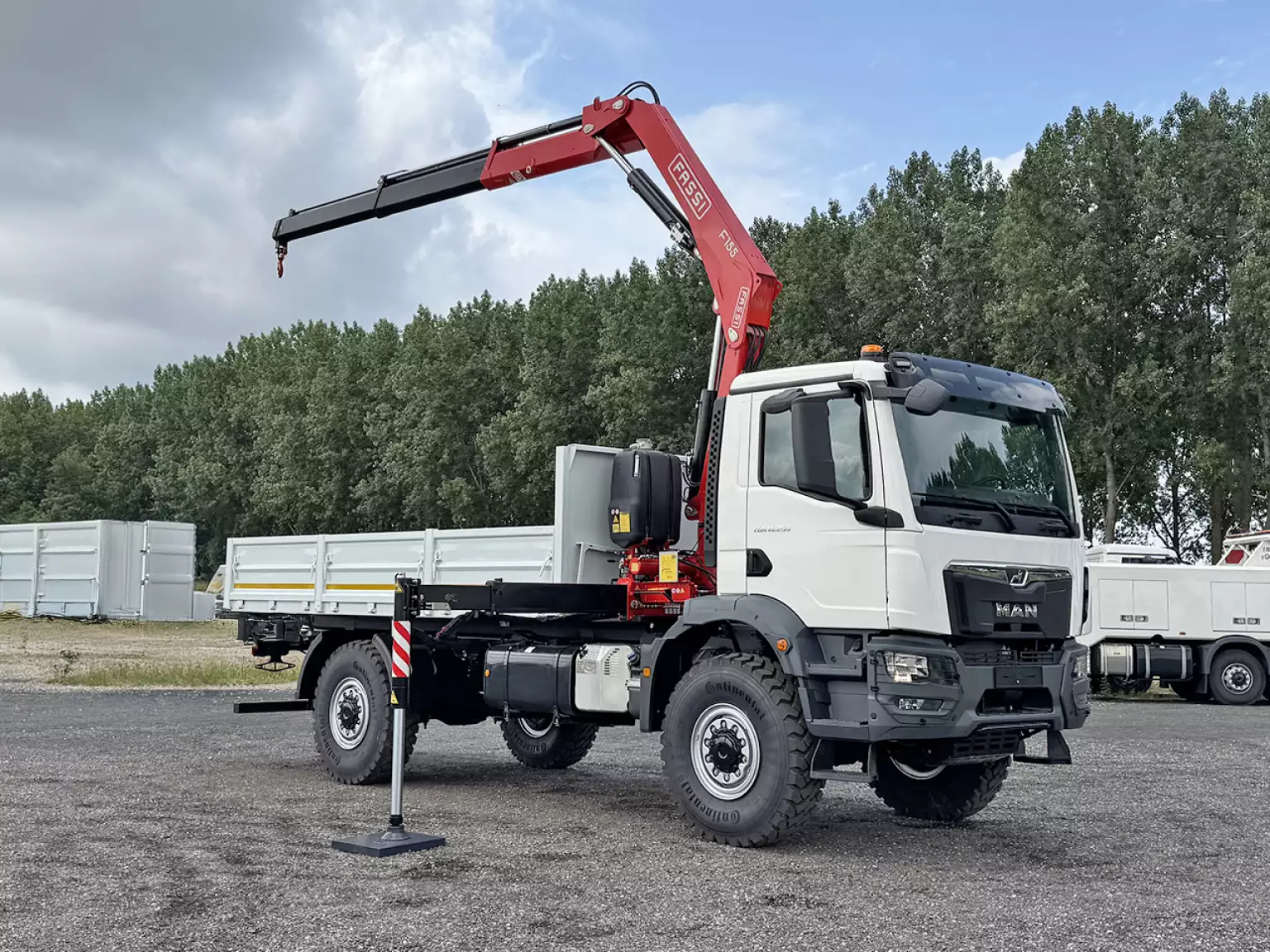

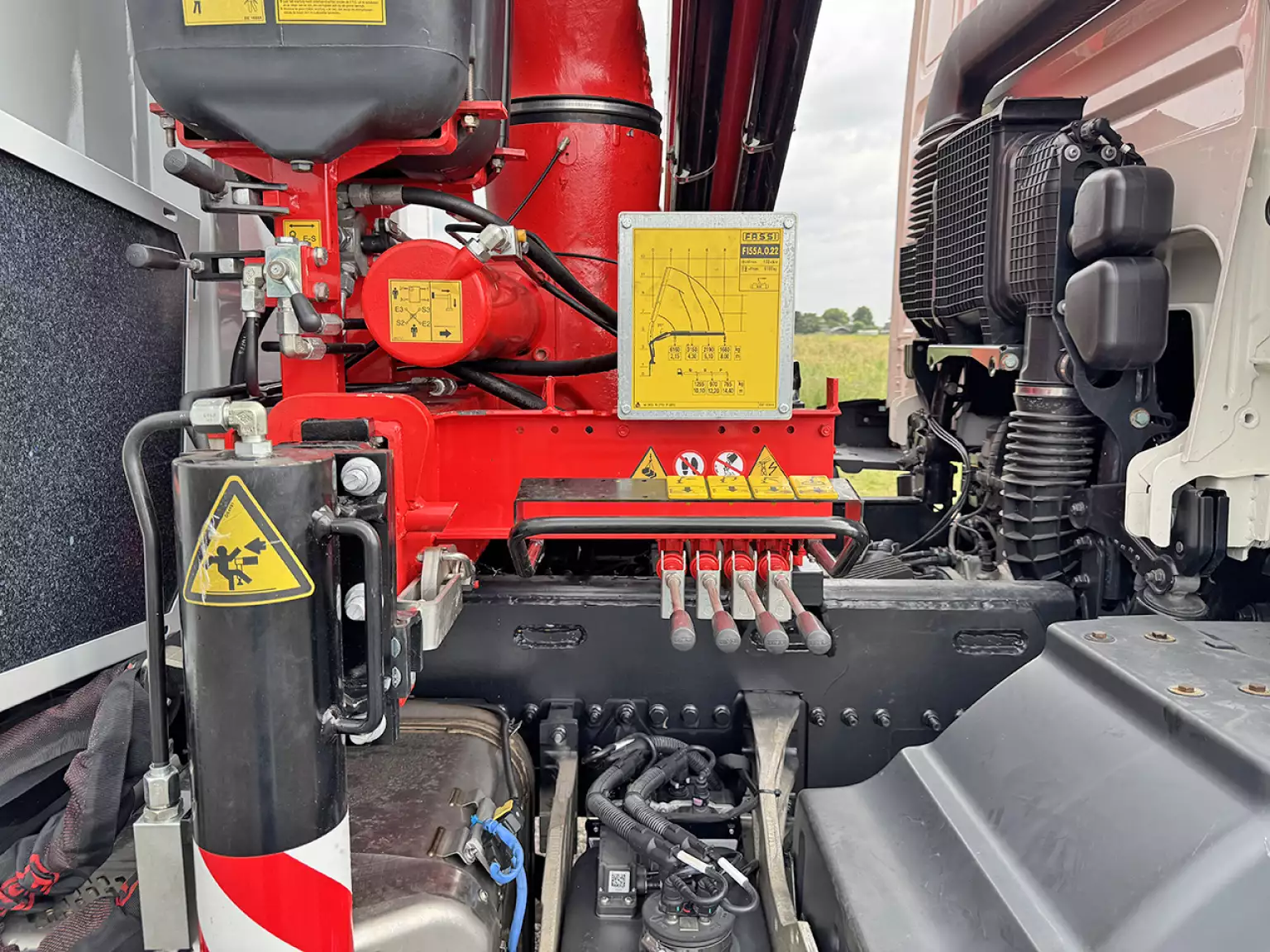

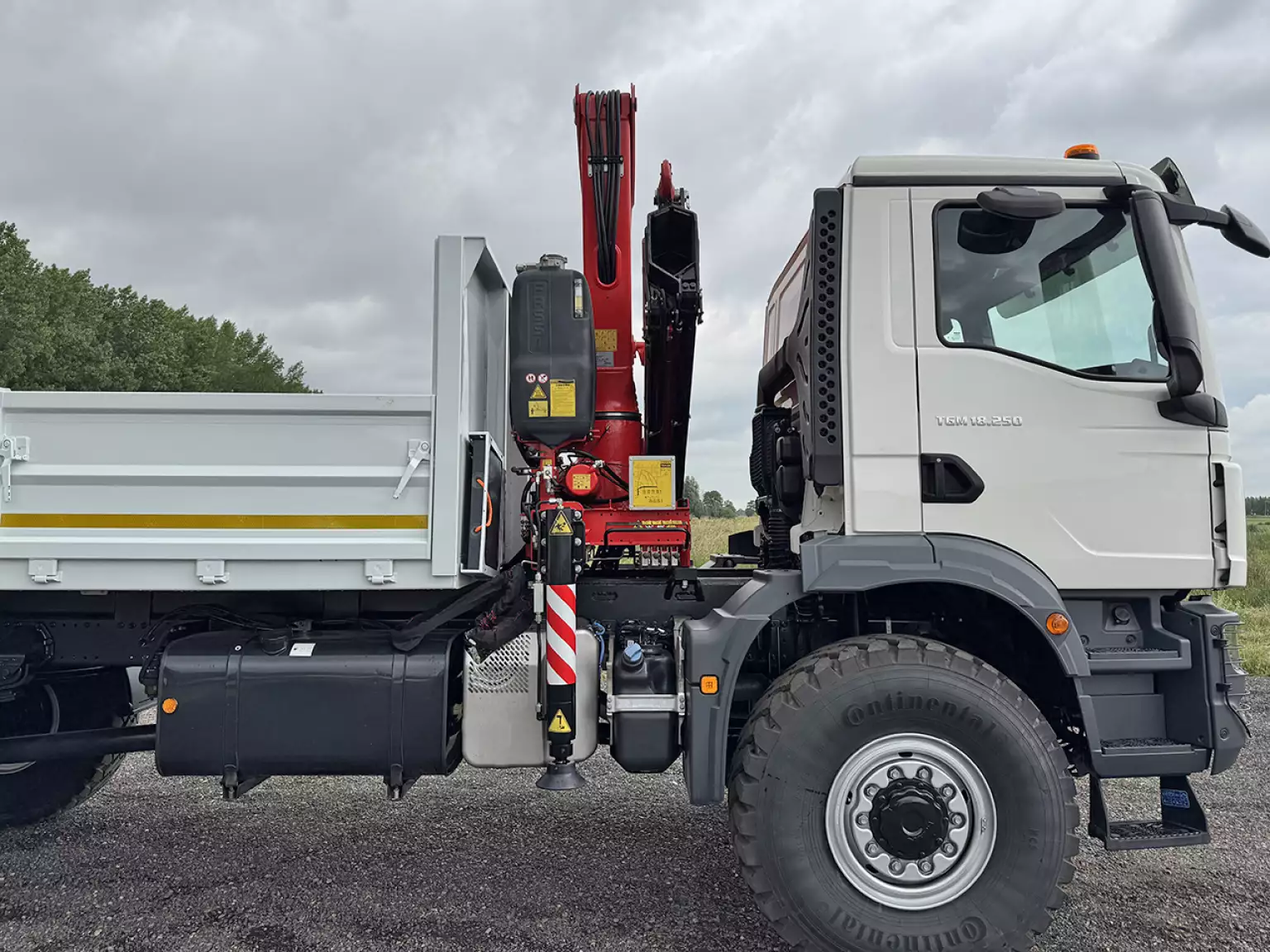

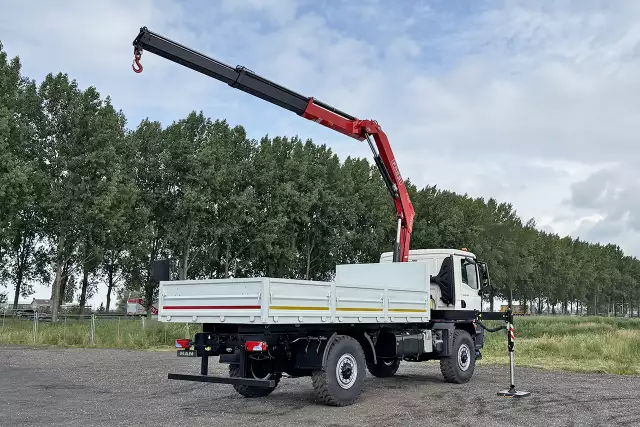

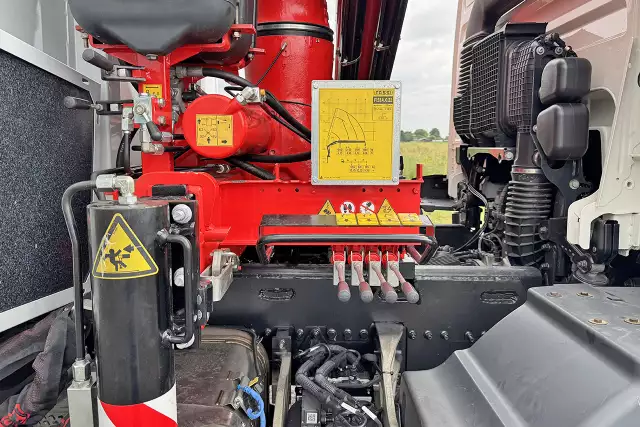

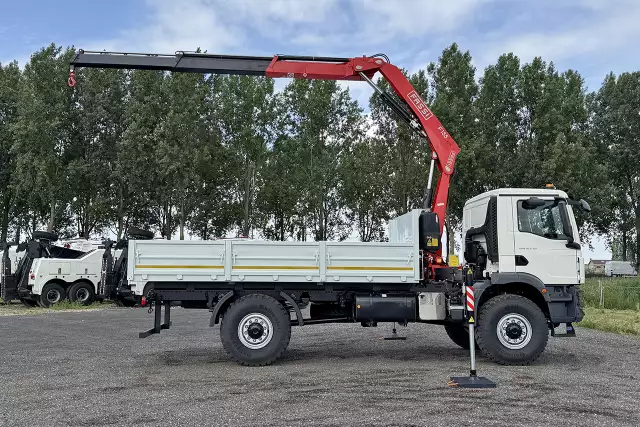

Equipped with Fassi crane and flatbed:
Type: F155A.0.22
Lifting moment: 133 KNm.
Standard hydraulic reach: 8.30 mtr.
Load at the max horizontal outreach: 1660 kg.
Hydraulically extra extendable outriggers
Long fixing rods

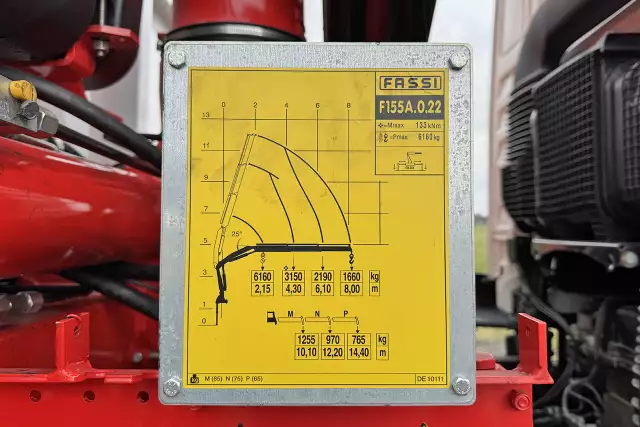

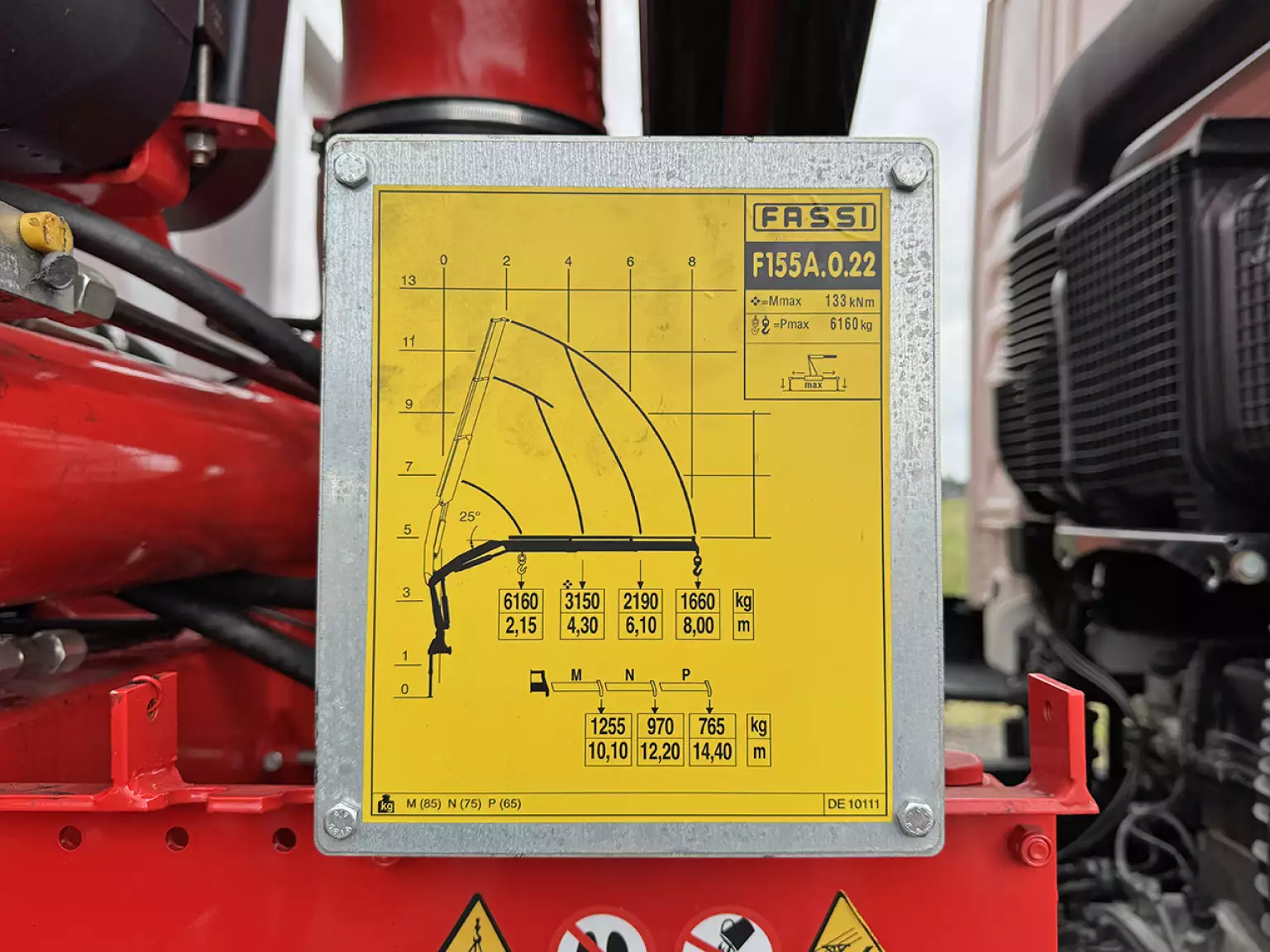

Lifting capacity:
6.160 kg / 2.15 m
3.150 kg / 4.30 m
2.190 kg / 6.10 m
1.660 kg / 8.00 m

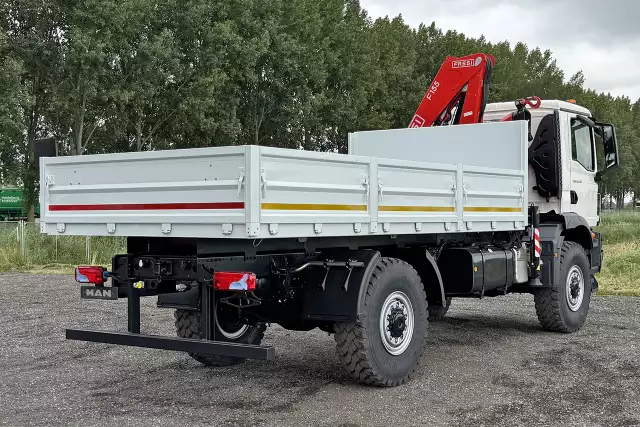

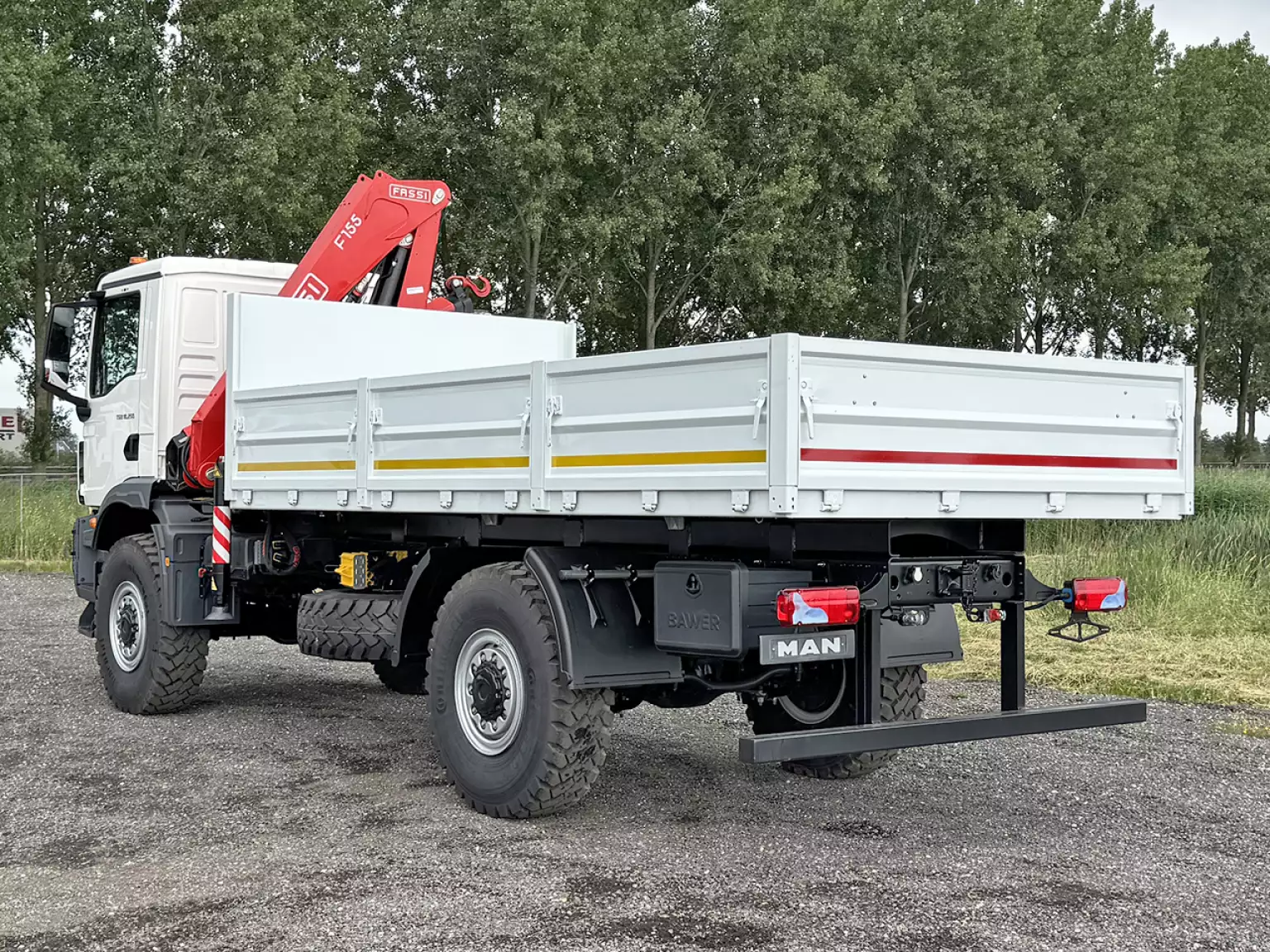

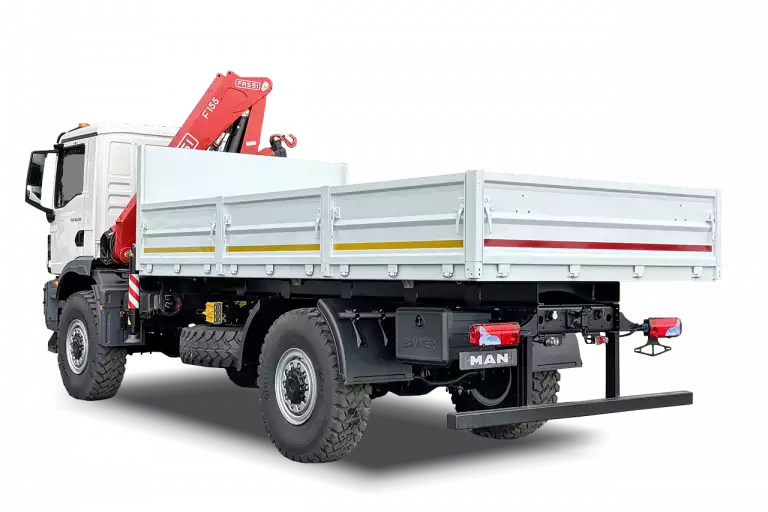

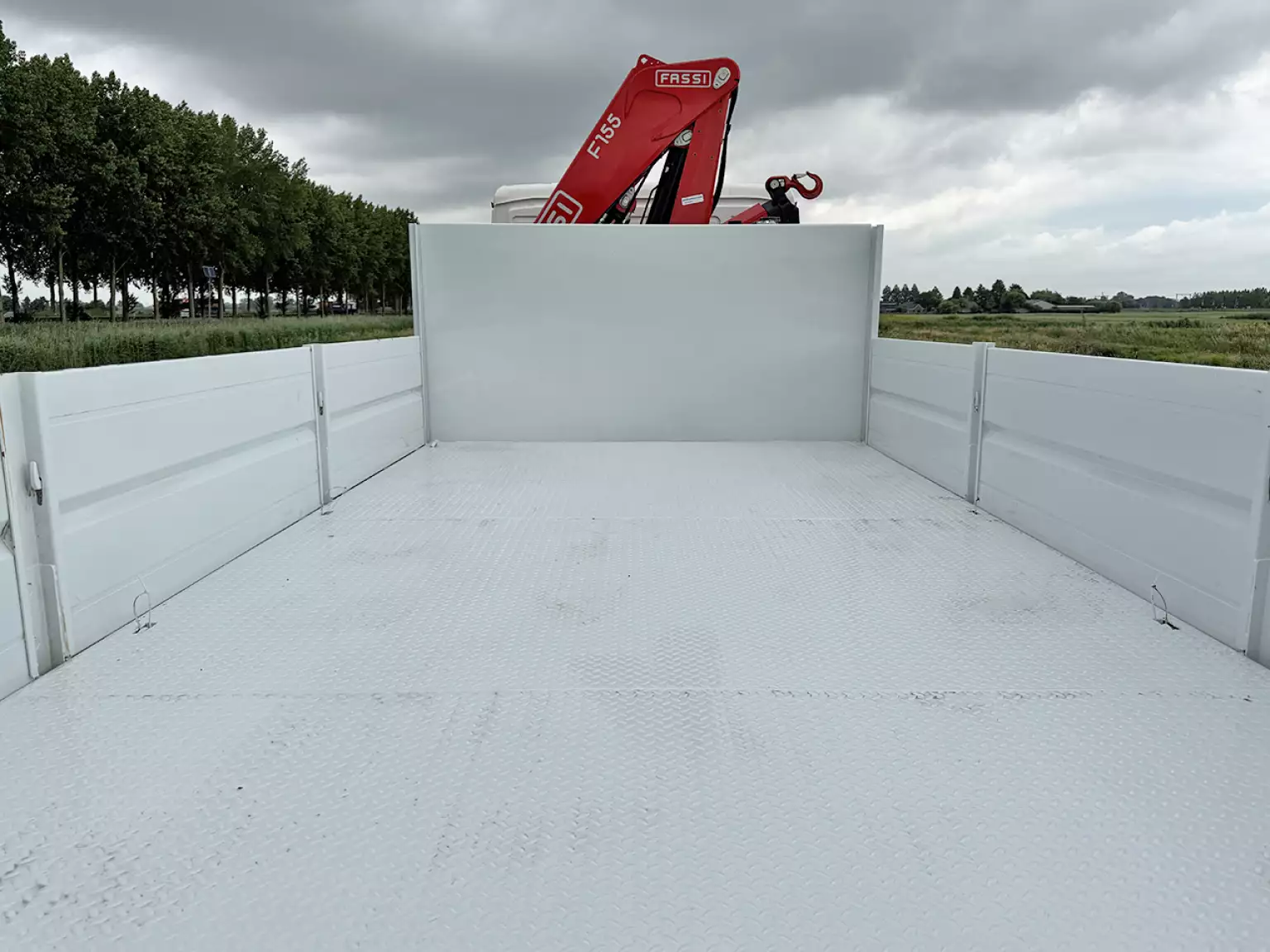

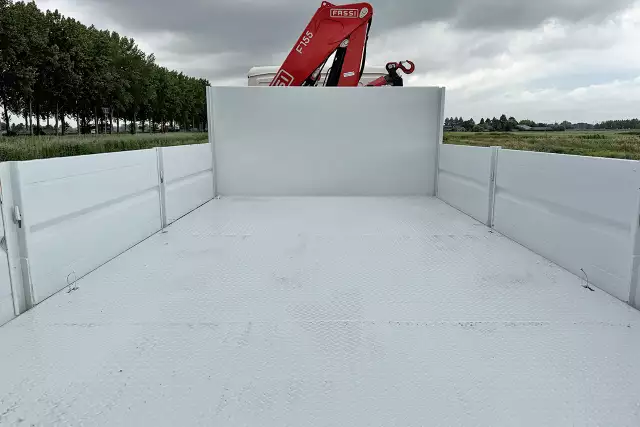

Open flatbed body with foldable sideboards.

Complete specification in PDF.
