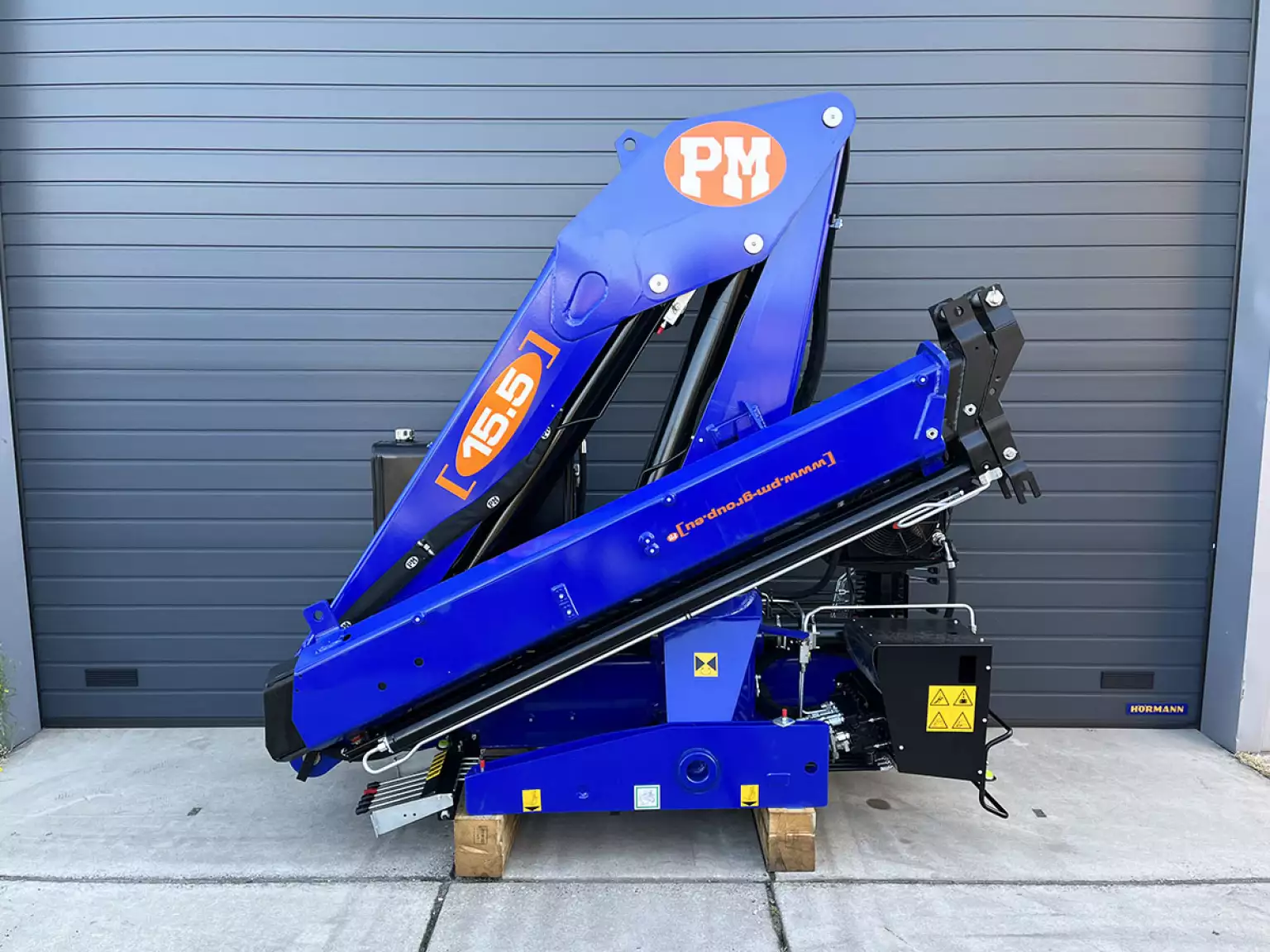

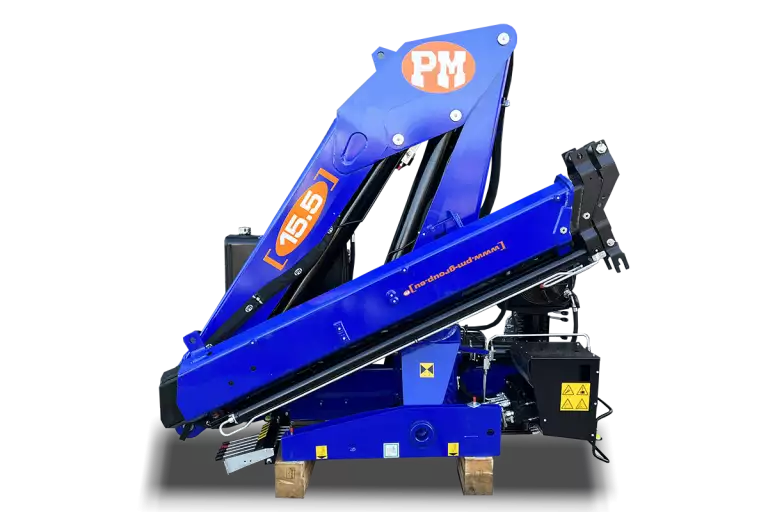

PM 15522 Truck Crane

  • New/unused
  • PM
Web-ID: TSB-000002
Availability:
3
Condition:
New/unused
Price:
€ 24.500

Net unit price, EXW Nieuwerkerk aan den IJssel (NL), without VAT, subject to availability/prior sale.

Vehicle overview

Category:
Machinery
Brand:
PM
Type:
15522
Construction make
PM
PM 15522

Technical Specifications

Stock number TSB-000002
Vehicle length 1.020 mm
Vehicle width 2.410 mm
Vehicle height 2.220 mm
Model year 2022
Remarks Complete crane no CE
Crane type: 15522
Max. lifting moment 14.3 T/M
Steel oil tank: 88 ltr.

Hydraulic outreach:
Horizontal: 8.45 mtr.
Vertical: 11.75 mtr.

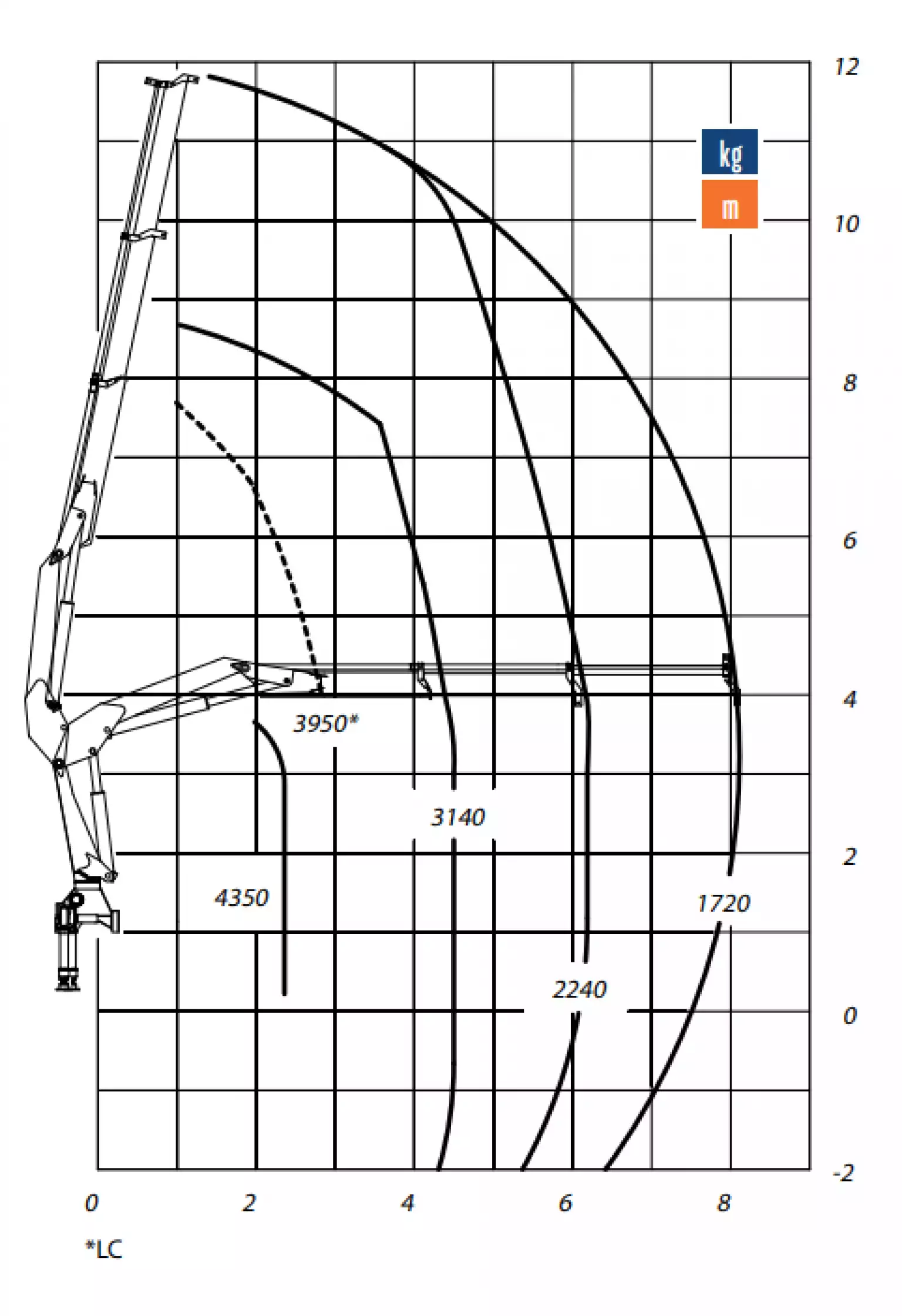

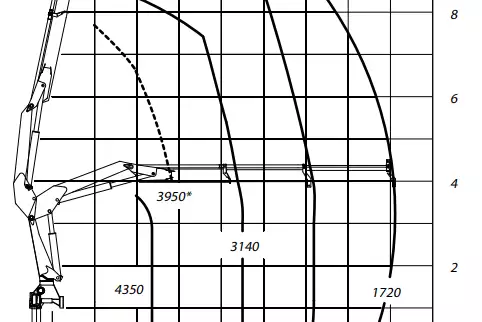

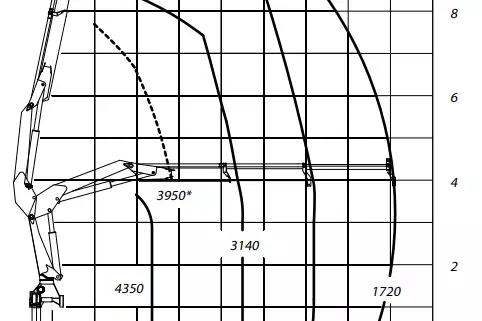

Lifting capacity:
4.350 kg / 2.30 m
3.950 kg / 2.90 m
3.140 kg / 4.55 m
2.240 kg / 6.35 m
1.720 kg / 8.25 m

Complete specification in PDF.

Specification sheets

Download PDF:
tsb-000002-pm-15522-crane-specifications-it-en
